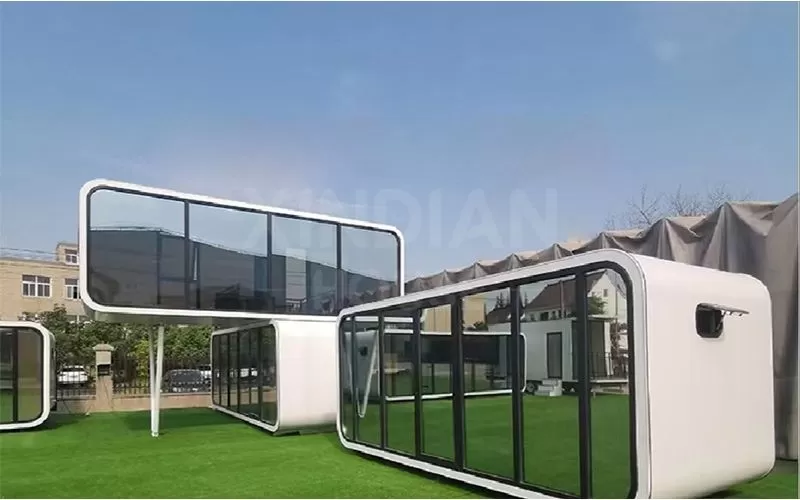

The internal space can be freely formulated, can be placed in a single unit, can also be combined to build concave modeling, a wide range of uses, can be used as a bed and breakfast, office, business, scenic area supporting, a strong sense of visual impact.
Products Description
Product size and mode of transportation:
size | Transportation | |
20FT | L5.8m*W3.3m*H3.0m | transported through frame cabinets |
20FT | L5.8m*W2.2m*H2.45m | transported through High-cabinets |
30FT | L9.0m*W3.3m*H3.0m | transported through frame cabinets |
30FT | L9.0m*W2.2m*H2.45m | transported through High-cabinets |
40FT | L11.5m*W3.3m*H3.0m | transported through frame cabinets |
40FT | L11.5m*W2.2m*H2.45m | transported through High-cabinets |

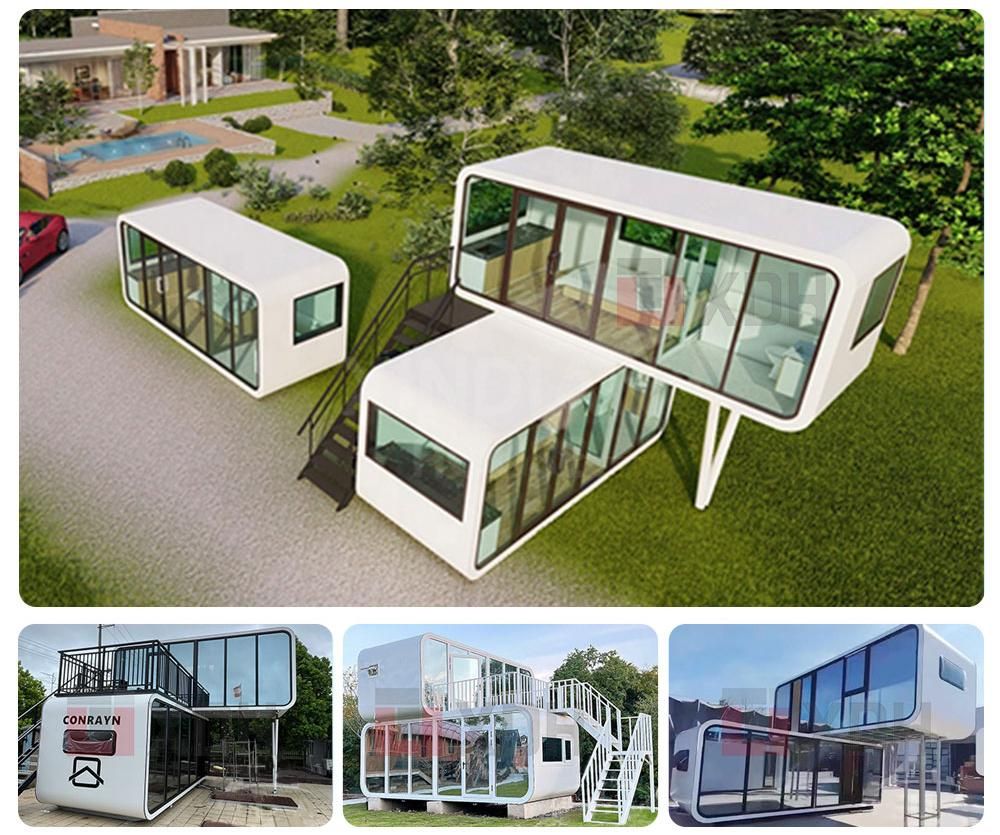

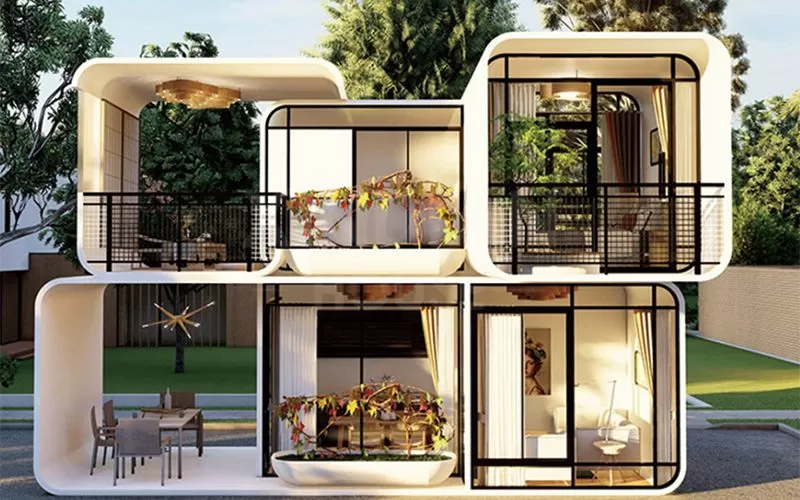

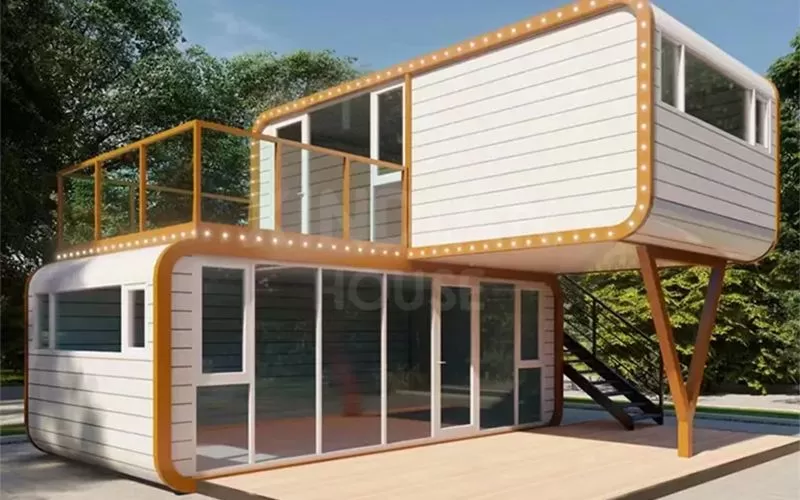

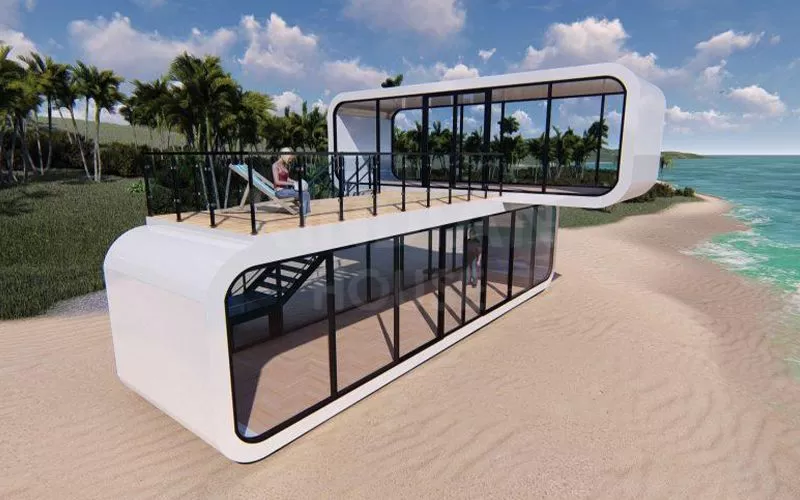

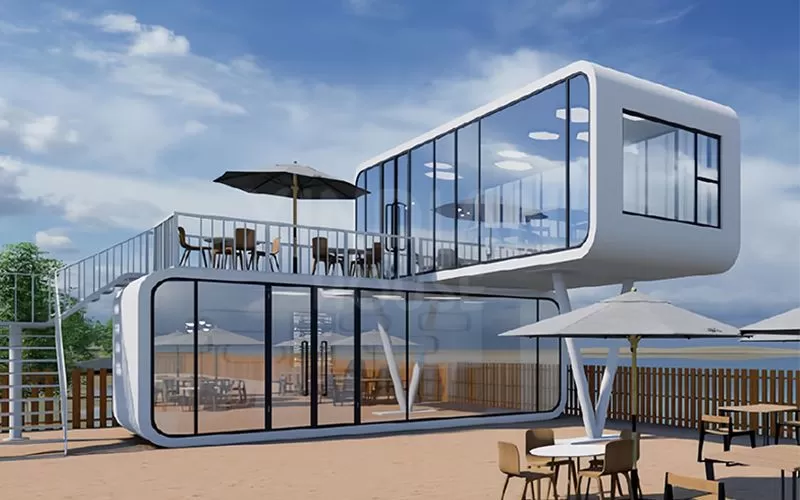

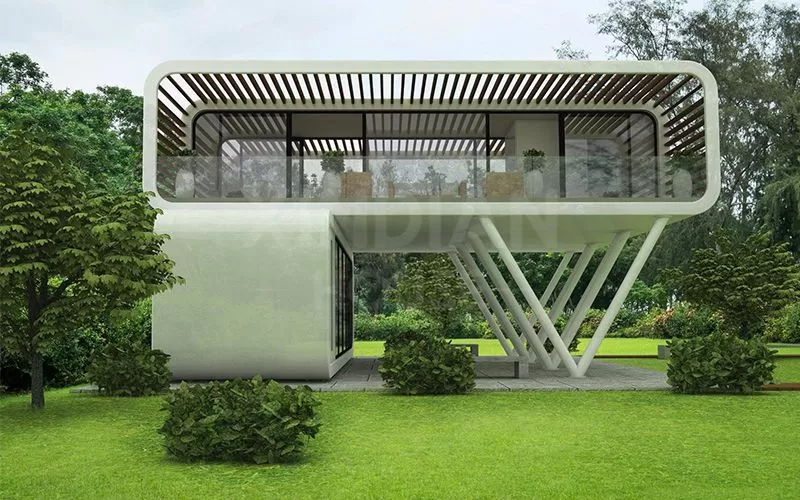

Product appearance can be customized:

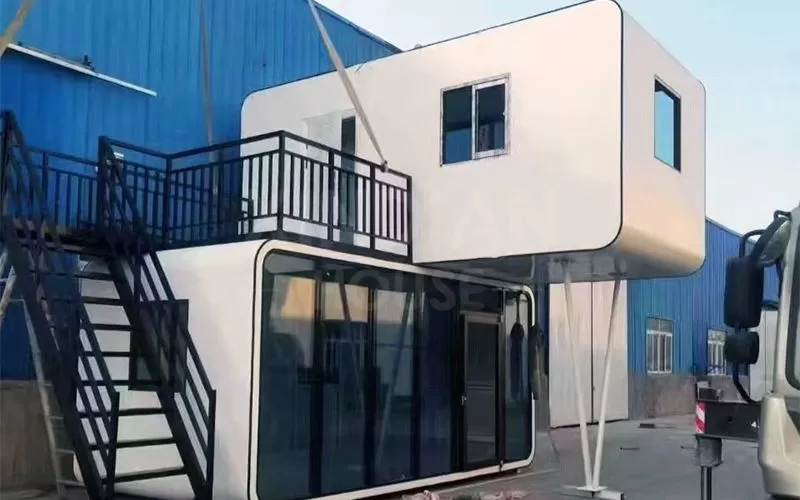

Can do a layer two, can do the terrace and so on
Product core competence:
1、Unlimited terrain, ecological development
No foundation, applicable to all terrain, no damage to the ecological environment, no construction waste ecological environmental protection.
2、Integral prefabrication, quick installation
The whole house is made of environmentally friendly materials, and the products have been tested for waterproof, heat preservation and heat insulation, and the materials have reached international standards.
3、Modern technology, Internet celebrities punch
Equipped with full intelligent home appliance system, appearance design foreground vision, own flow.
4、Convenient disassembly, flexible land
Overall transportation, assembly and disassembly, suitable for all kinds of land, less restrictions.
5、Ultra-low energy consumption, environmental pollution
Ecological environmental protection, zero pollution to the environment, but also seismic, wind, cold heat insulation, moisture, anti-corrosion fire, waterproof.

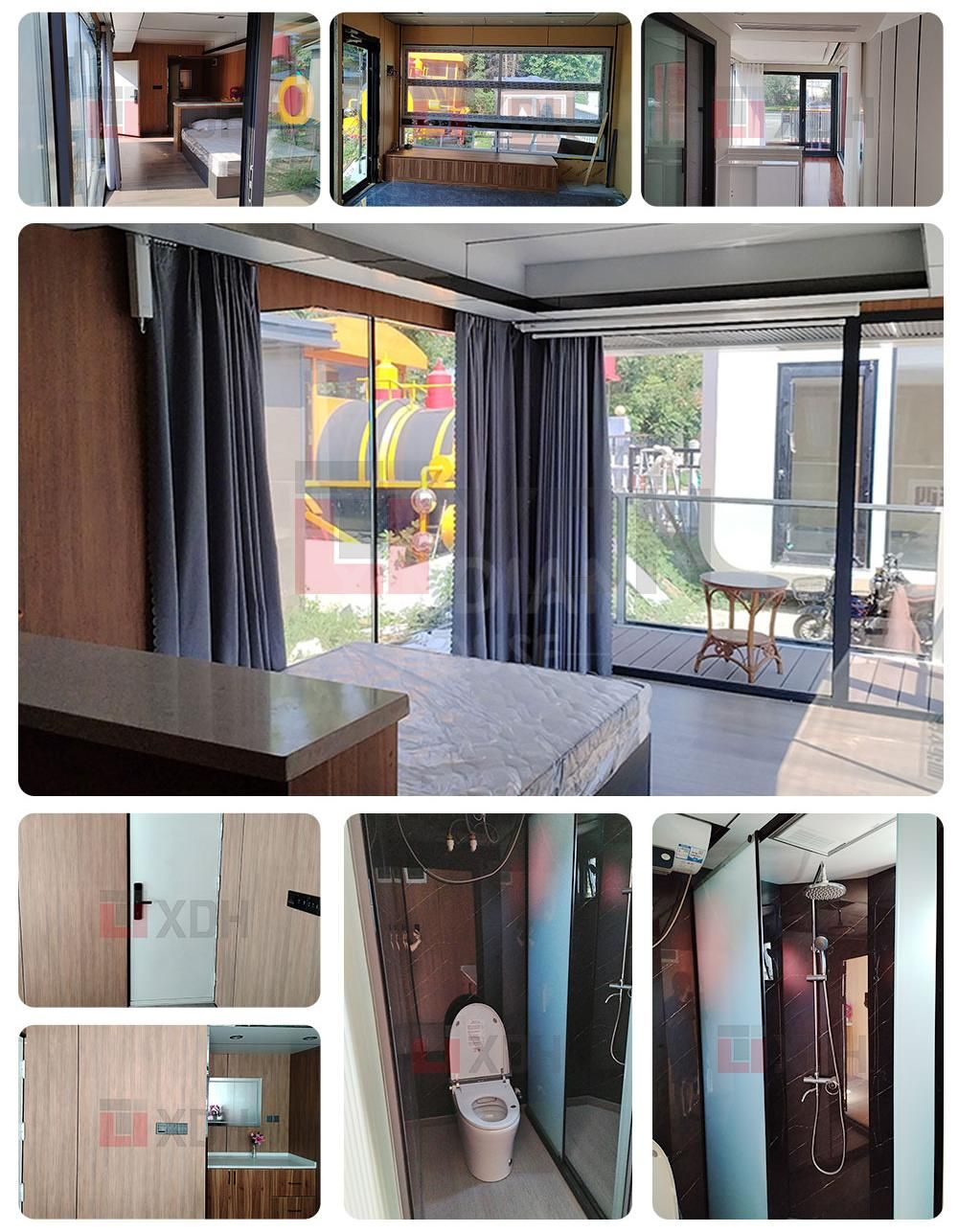

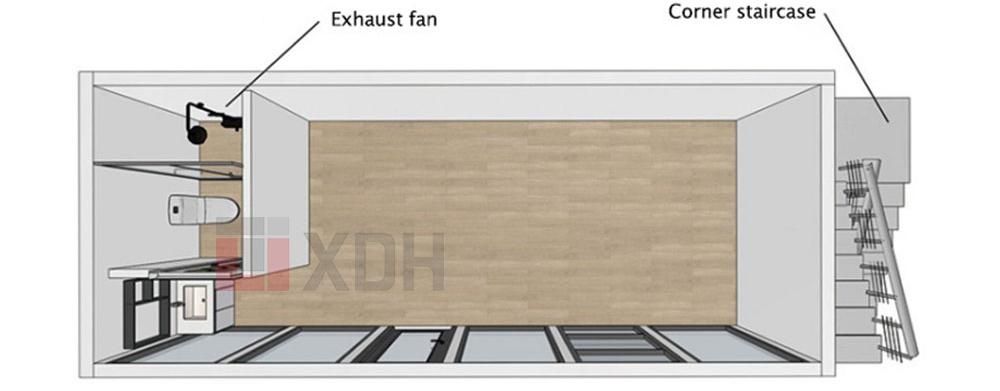

Product interior can be customized freely:
Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used.
Product Parameter:
Apple Cabin container house | |||
Frame structure | Bottom frame | 100mm*160mm*3.0mm galvanized rectangular tube | |
Top frame | 160mm*80mm*3.75mm galvanized rectangular tube | ||
Frame beam | 50mm*100mm*1.8mm galvanized rectangular pipe | ||
Accessories | Welding wire,paint,anti rust paint,topcoat,sealant,etc | ||
Exterior Wall Panels | White Aluminum Composite Panel Cover, Sandwich | ||
Interior wall systems | Honeycomb Aluminum Panel/Carbon Crystal Panel for Interior Walls | ||
Interior wall European pine board waterproof type | |||
Ground system | SPC stone plastic flooring | ||
Ground PVC skirting | |||
Cement fiber board | |||
Roofing systems | Fire-roasted SBS waterproofing membrane | ||
Aluminum plate polyurethane spray insulation | |||
Thermal insulation systems | Polyurethane spraying + extruded panels | ||
Ceiling systems | Steel ceiling material | ||
Ceiling honeycomb aluminum plate(Customizable decoration style accepted) | |||
Ceiling an individual light strip(Customizable decoration style accepted) | |||
Door and window systems | Broken Bridge Aluminum Flush Door (Iron Green Gray) (or White);Low-e hollow insulation glass | ||
Cupboard | Cupboard,sink (High end customization) | ||
Electric circuit | Whole house LED lighting system+ indoor ambient lighting | ||
Internal Functions | Hardware bathroom, only mirror front light, intelligent voice system, intelligent toilet, central air conditioning, electric curtain track. |

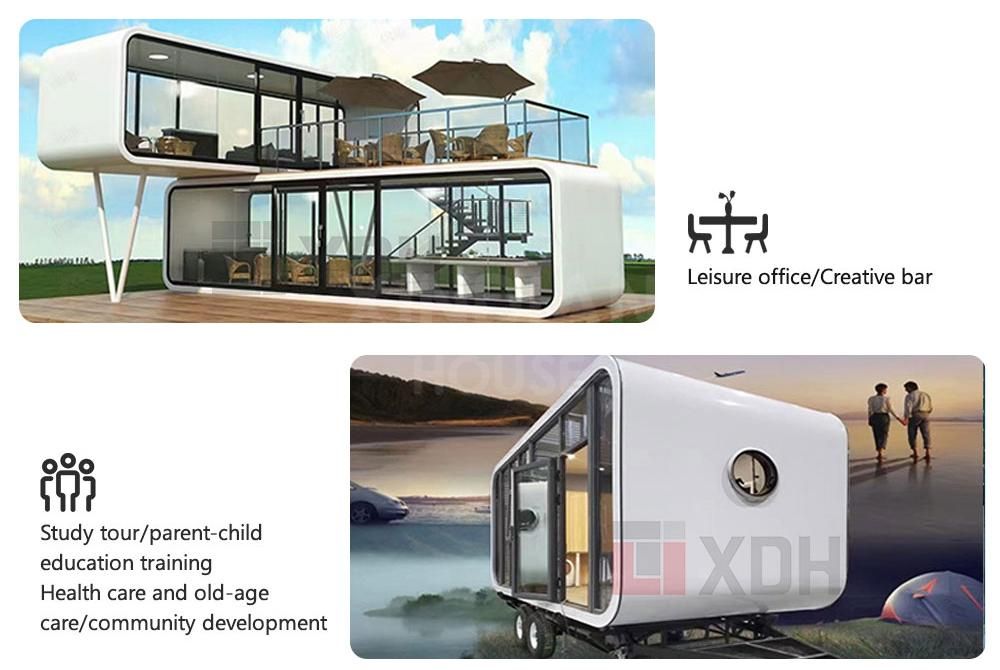

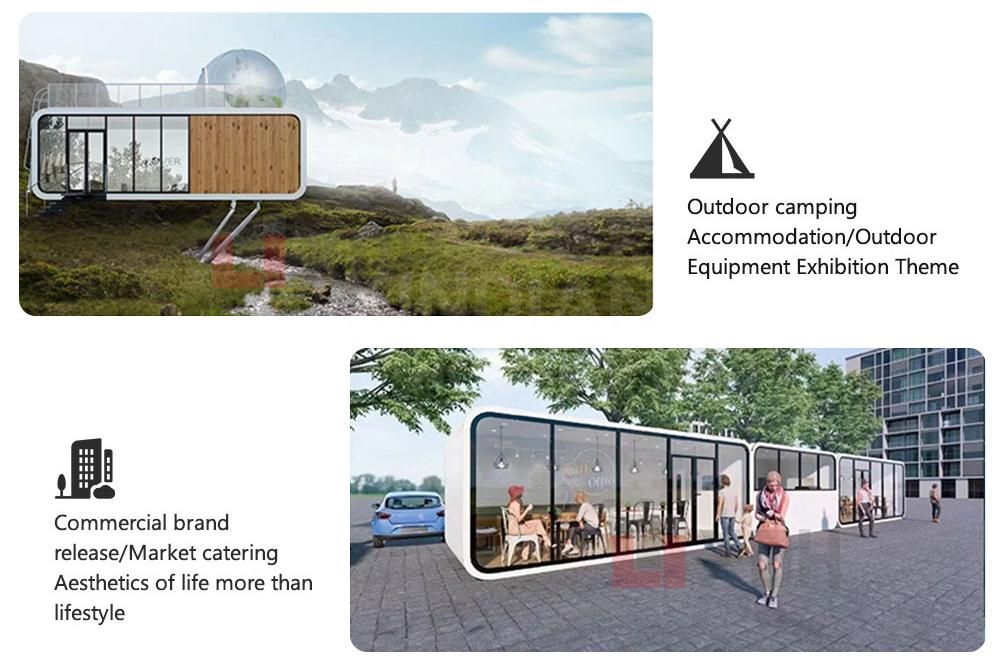

Wide range of applications:
1.[construction site] high-end office, residential, living room
2.[highway] alternative RV, midway rest upscale hotel
3.[marketing center] office, reception, apartment occupancy
4.[tourism facilities] Tourist homestay hotels, catering rooms
5.[public buildings] Bookstore, gym, cultural and art center, museum, office space:
6.[rural housing] new rural construction of residential housing
7.[club office] high-end club, corporate headquarters
8.[RV camp]4S high-end accommodation, better than the RV experience
9.[health real estate] tourism area health, elderly housing
10.[chain hotel] city unified image, identification of chain hotel room, can use intelligent decoration
11. [collective house base] has been demolished area transition residential housing
12.(municipal engineering] newspaper kiosks, offices, public toilets, green landscape pavilion project
13.vibration and relocation compensation] may be demolished, obtain compensation for commercial or residential housing
14.[development land] temporary undeveloped, or development period is long, good location free land, can be temporary hotels, restaurants, business Occupation building
15.[Product exhibition hall] Various product exhibition halls, pop-up shops (when removed)
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
