The whole galvanized steel frame, the shell is made of aviation aluminum plate, elegant atmosphere, super space comfort, super vision and super space scalability; Can be used as office, dining, accommodation and other facilities.
Products Description

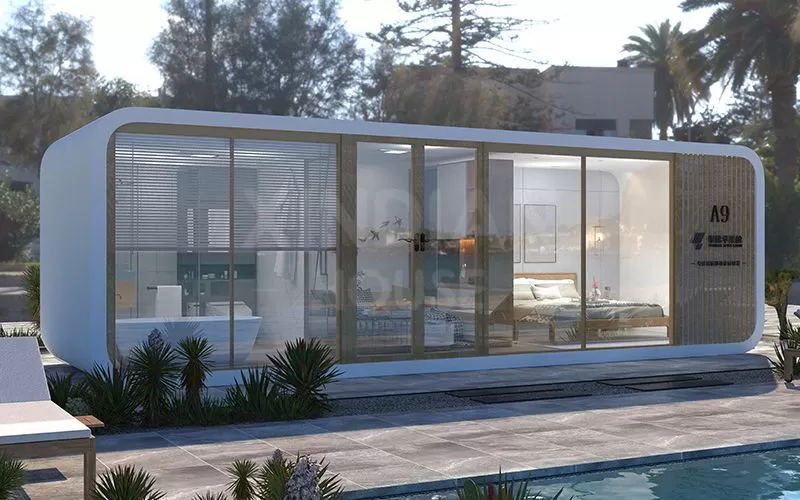

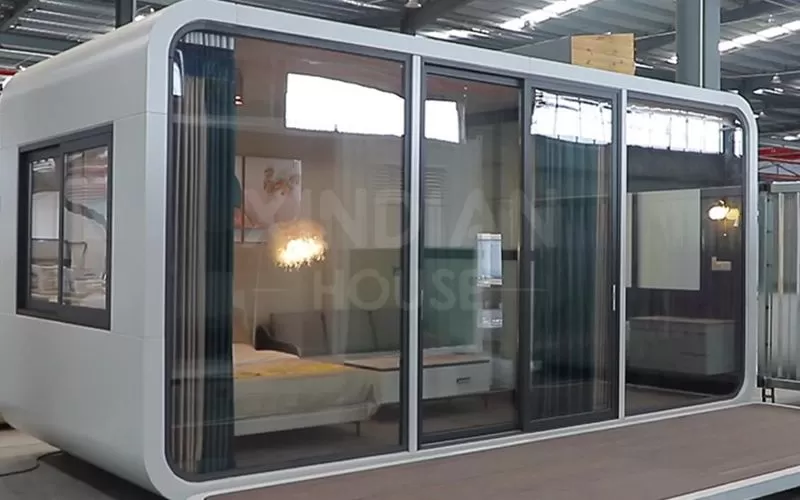

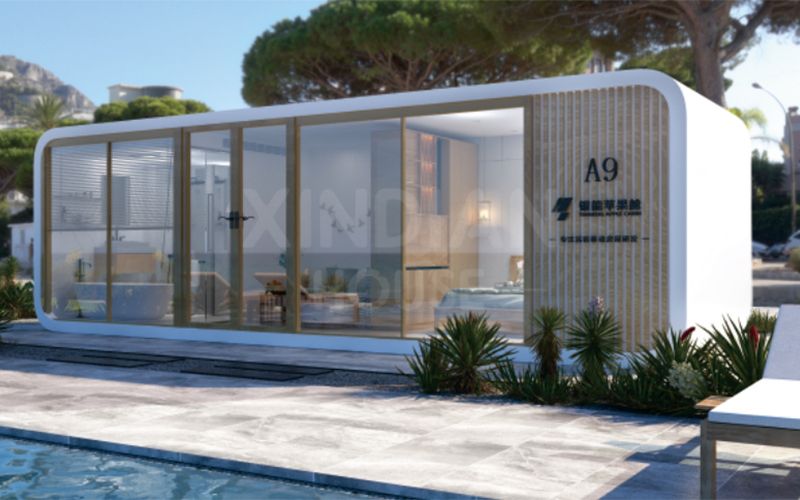

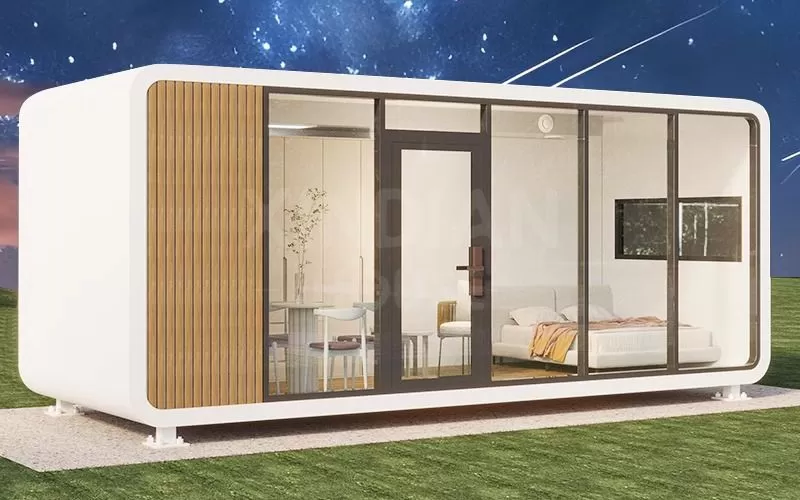

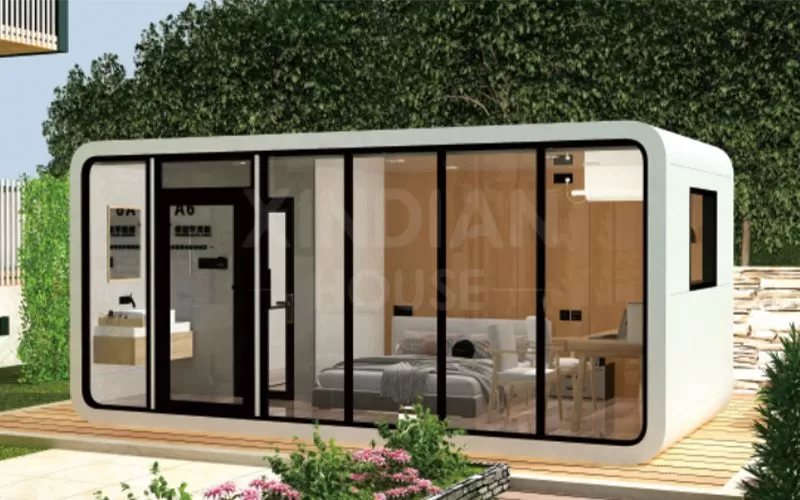

Apple Cabin A9: The whole galvanized steel frame, the shell is made of aviation aluminum plate, elegant atmosphere, super space comfort, super vision and super space scalability; Can be used as office, dining, accommodation and other facilities.
Full of science and technology sense of assembly container building, move at any time, convenient and fast, personalized design to meet the different needs of people of all ages.

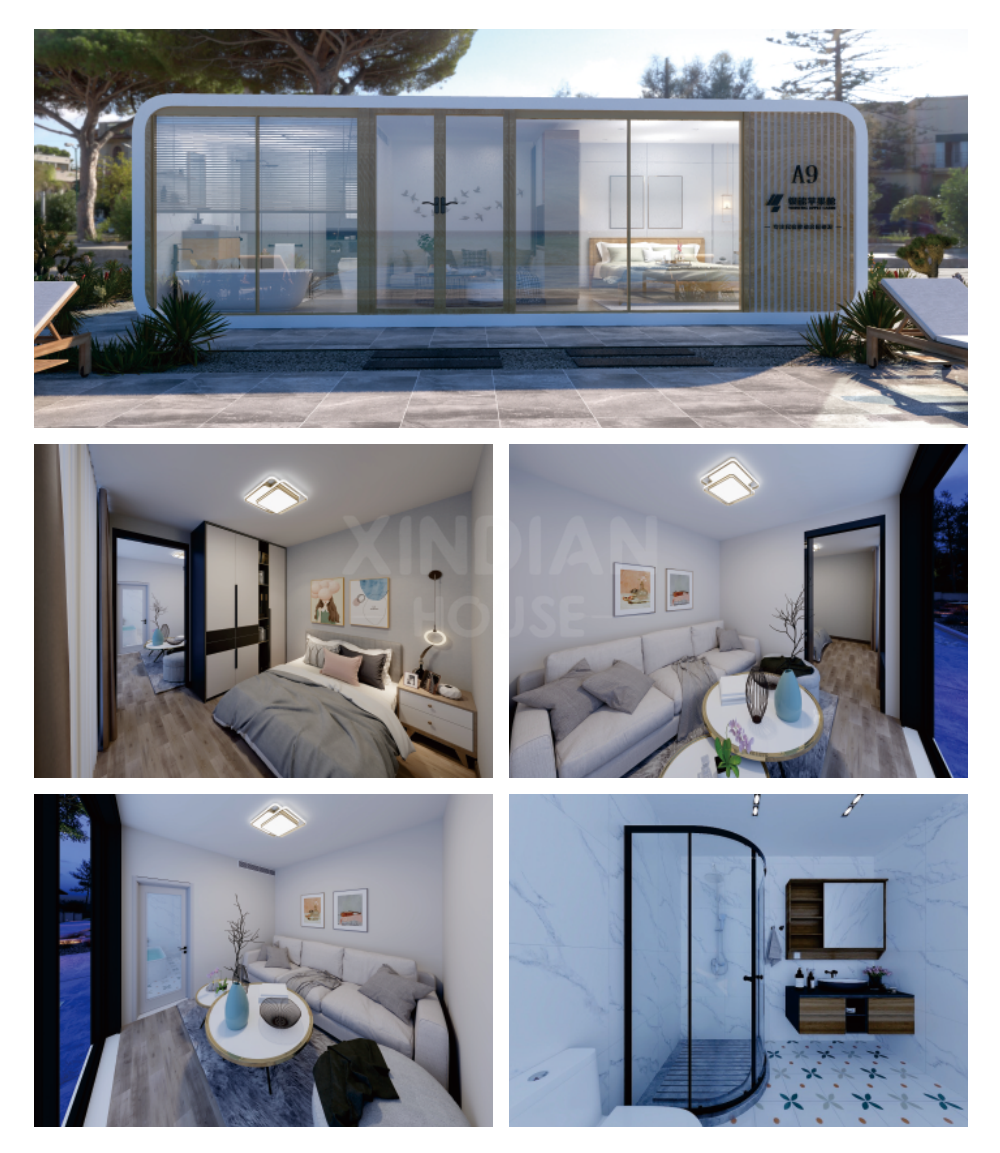

It can be customized as bathroom,kitchen, bedroom, study room, living room, etc.

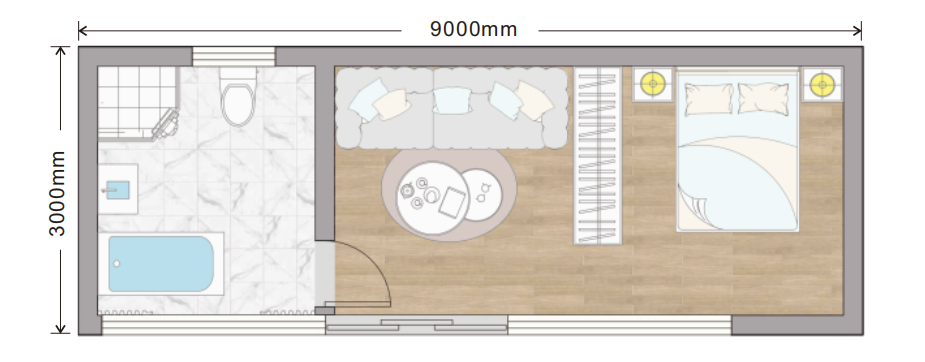

Meet any needs of the family, equipped with professional designers to help you design your house layout, you only need to tell your needs, and it will help you solve them.
Factory transport:
After the external packaging of the product, the use of large flatbed transport vehicles. During the journey from the factory to the camp site, strict safety protection measures will be adopted to ensure the safety and security of the products in transportation.
Product lifting:
After the transport vehicle arrives at the local place, it is necessary to use a large crane to lift and land. After the products arrive at the project site, appropriate lifting equipment shall be used according to the actual local conditions, and the lifting point of the products shall be designed and tonnage data shall be provided.
Installation base:
the hardened ground can be installed directly on the ground, and other geological environments will cooperate with the project construction party for infrastructure construction. The pile foundation excavation construction plan should be formulated according to the soil quality to ensure the safety and stability of the product landing.
Product Parameters:
Apple Cabin container house | |||
Frame structure | Bottom frame | 100mm*150mm*3.0mm galvanized rectangular tube | |
Top frame | 160mm*80mm*3.75mm galvanized rectangular tube | ||
Frame beam | 50mm*100mm*1.5mm galvanized rectangular pipe | ||
Accessories | Welding wire Paint Rustproof paint | ||
Exterior Wall Panels | White Aluminum Composite Panel Cover, Sandwich | ||
Interior wall systems | Honeycomb Aluminum Panel/Carbon Crystal Panel for Interior Walls | ||
Interior Wall Europine Board | |||
Ground system | Ground stone multi-layer solid wood flooring | ||
Ground PVC skirting | |||
Cement fiber board | |||
Roofing systems | Fire-roasted SBS waterproofing membrane | ||
White galvanized sheet for roofing | |||
Thermal insulation systems | Polyurethane spraying + extruded panels | ||
Ceiling systems | Suspended ceiling timber cube | ||
Ceiling honeycomb aluminum plate | |||
Ceiling an individual light strip | |||
Door and window systems | Broken Bridge Aluminum Flush Door (Iron Green Gray) (or White); Glass | ||
Internal Functions | Hardware bathroom, only mirror front light, intelligent voice system, intelligent toilet, central air conditioning, electric curtain track. |
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
