removable china prefab modern tiny house 20ft modular apple capsule houses in nature

Share:

Apple cabin mobile home, is widely used in tourism resorts, RV camps, creative parks, stores and other fields, for the characteristics of the town paved ecotourism, mobile real estate, mobile retail, to create a travel and residential business as one of the "mobile business opportunities"


Products Description

Product size and mode of transportation:

                                                                                            size                                  Transportation
20FT L5.8m*W3.3m*H3.0mtransported through frame cabinets
20FTL5.8m*W2.2m*H2.45mtransported through High-cabinets
30FTL9.0m*W3.3m*H3.0mtransported through frame cabinets
30FTL9.0m*W2.2m*H2.45mtransported through High-cabinets
40FTL11.5m*W3.3m*H3.0mtransported through frame cabinets
40FTL11.5m*W2.2m*H2.45mtransported through High-cabinets

removable china prefab modern tiny house 20ft modular apple capsule houses in nature

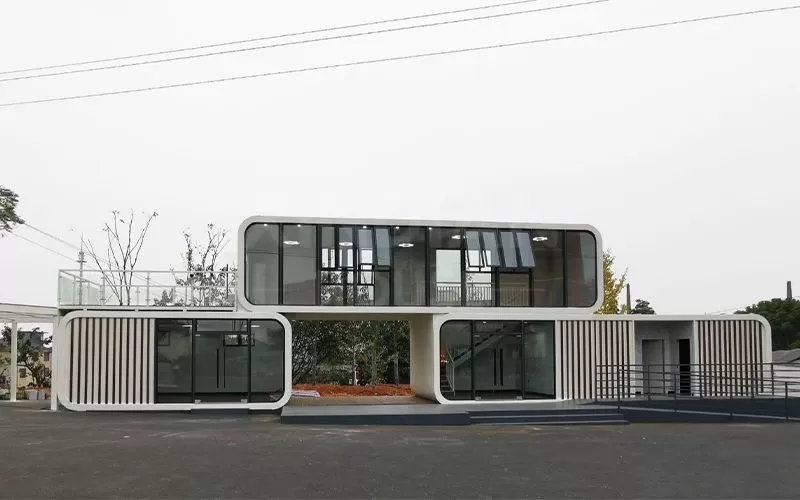

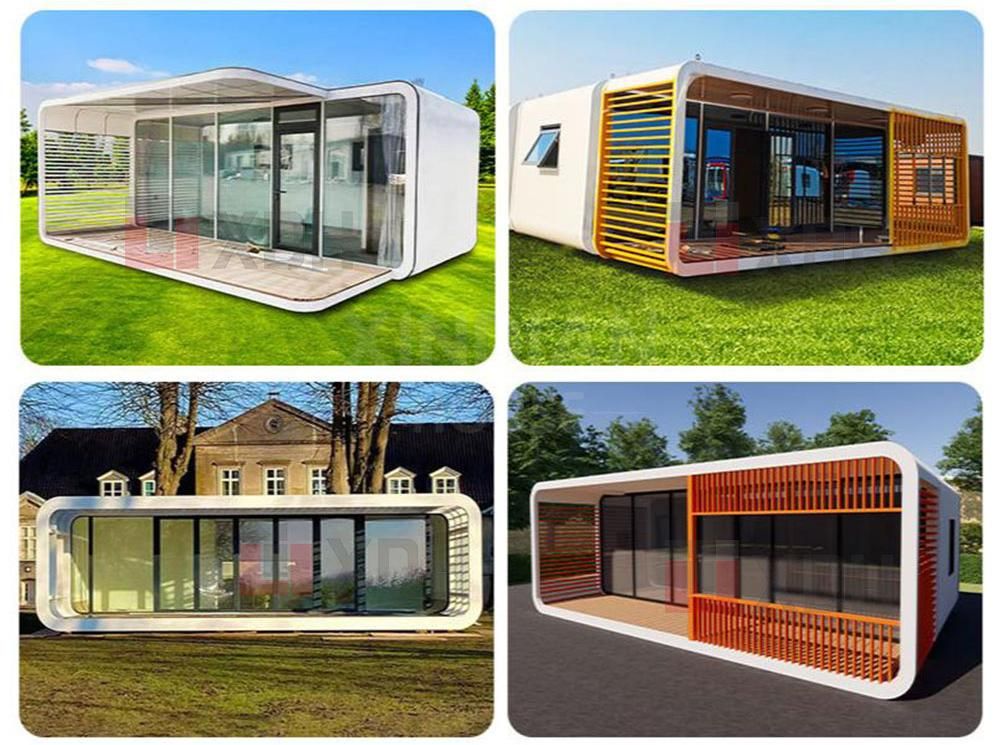

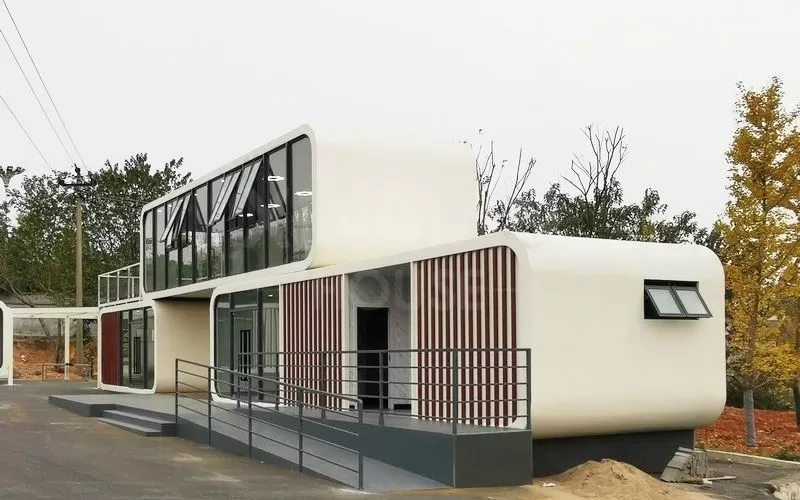

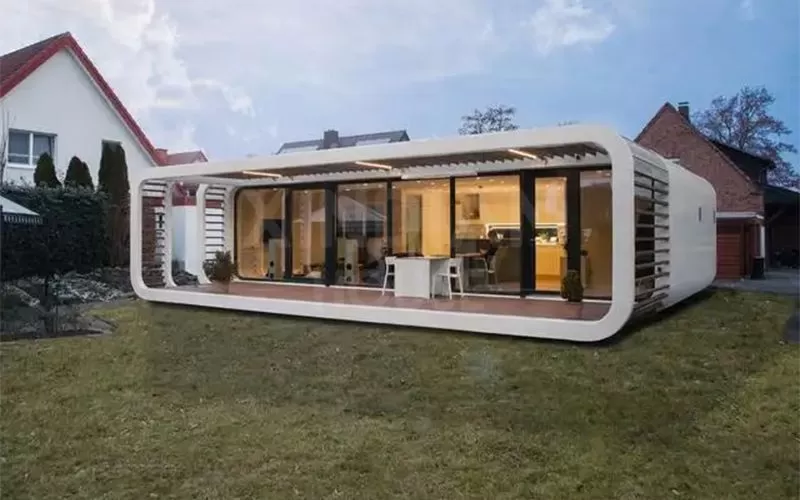

Product appearance can be customized:

Can do a layer two, can do the terrace and so on

removable china prefab modern tiny house 20ft modular apple capsule houses in nature

removable china prefab modern tiny house 20ft modular apple capsule houses in nature

Product core competence:

1、Unlimited terrain, ecological development

No foundation, applicable to all terrain, no damage to the ecological environment, no construction waste ecological environmental protection.

2、Integral prefabrication, quick installation

The whole house is made of environmentally friendly materials, and the products have been tested for waterproof, heat preservation and heat insulation, and the materials have reached international standards.

3、Modern technology, Internet celebrities punch

Equipped with full intelligent home appliance system, appearance design foreground vision, own flow.

4、Convenient disassembly, flexible land

Overall transportation, assembly and disassembly, suitable for all kinds of land, less restrictions.

5、Ultra-low energy consumption, environmental pollution

Ecological environmental protection, zero pollution to the environment, but also seismic, wind, cold heat insulation, moisture, anti-corrosion fire, waterproof.

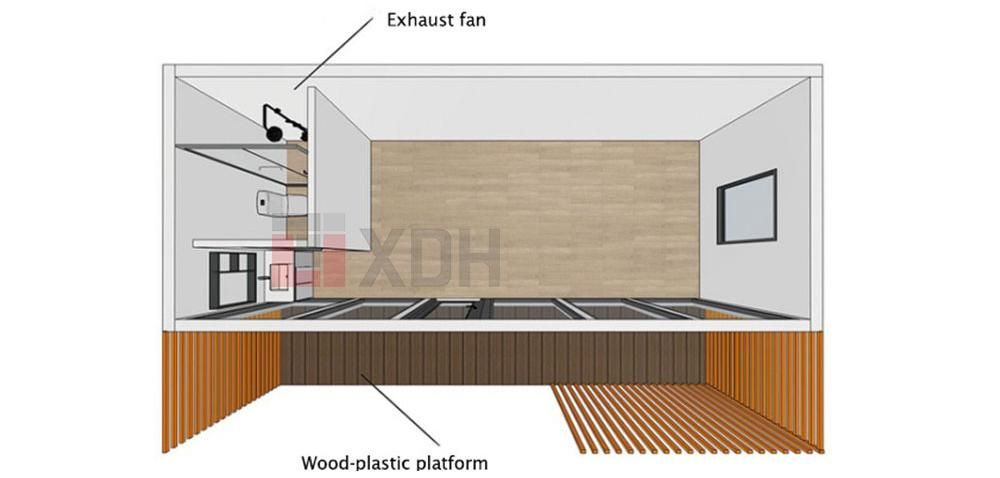

Product interior can be customized freely:

Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used.

removable china prefab modern tiny house 20ft modular apple capsule houses in nature

Product Parameter:

Apple Cabin container house
Frame structureBottom frame100mm*160mm*3.0mm galvanized rectangular tube
Top frame160mm*80mm*3.75mm galvanized rectangular tube
Frame beam50mm*100mm*1.8mm galvanized rectangular pipe
AccessoriesWelding wire,paint,anti rust paint,topcoat,sealant,etc
Exterior Wall PanelsWhite Aluminum Composite Panel Cover, Sandwich
Interior wall systemsHoneycomb Aluminum Panel/Carbon Crystal Panel for Interior Walls
Interior wall European pine board waterproof type
Ground systemSPC stone plastic flooring
Ground PVC skirting
Cement fiber board
Roofing systemsFire-roasted SBS waterproofing membrane
Aluminum plate polyurethane spray insulation
Thermal insulation systemsPolyurethane spraying + extruded panels
Ceiling systemsSteel ceiling material
Ceiling honeycomb aluminum plate(Customizable decoration style accepted)
Ceiling an individual light strip(Customizable decoration style accepted)
Door and window systemsBroken Bridge Aluminum Flush Door (Iron Green Gray) (or White);Low-e hollow insulation glass
CupboardCupboard,sink (High end customization)
Electric circuitWhole house LED lighting system+ indoor ambient lighting
Internal FunctionsHardware bathroom, only mirror front light, intelligent voice system, intelligent toilet, central air conditioning, electric curtain track.

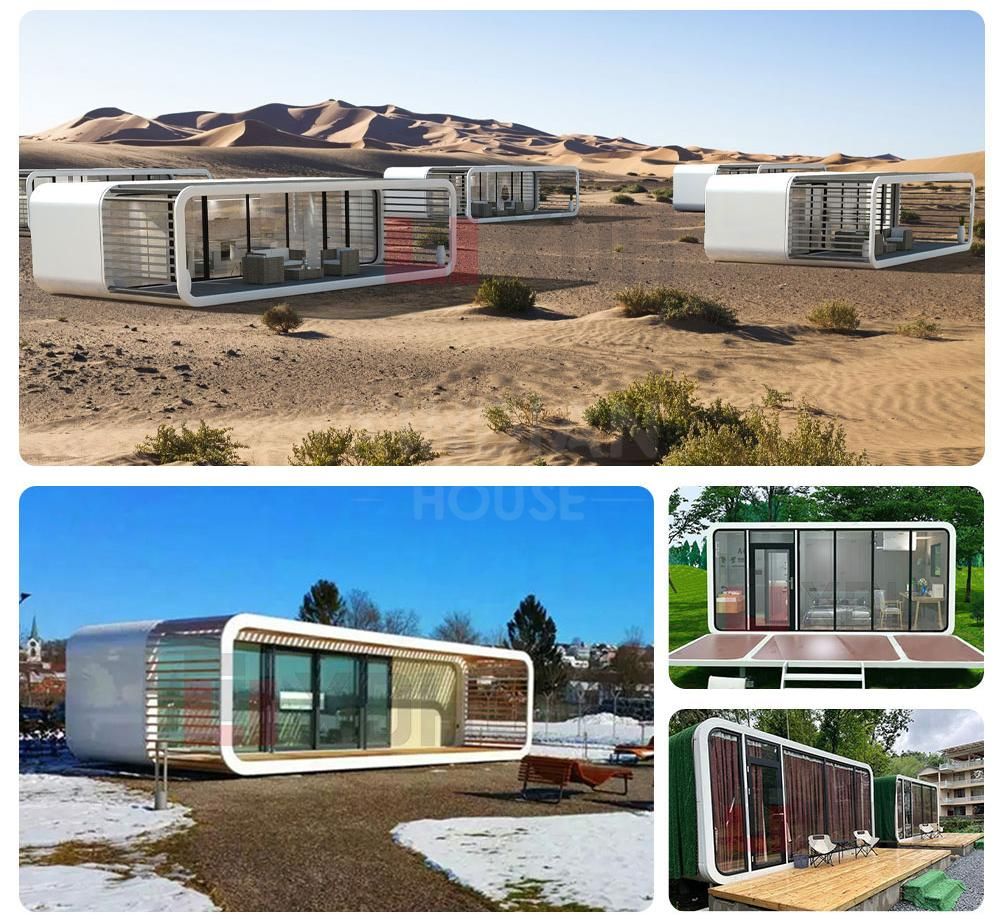

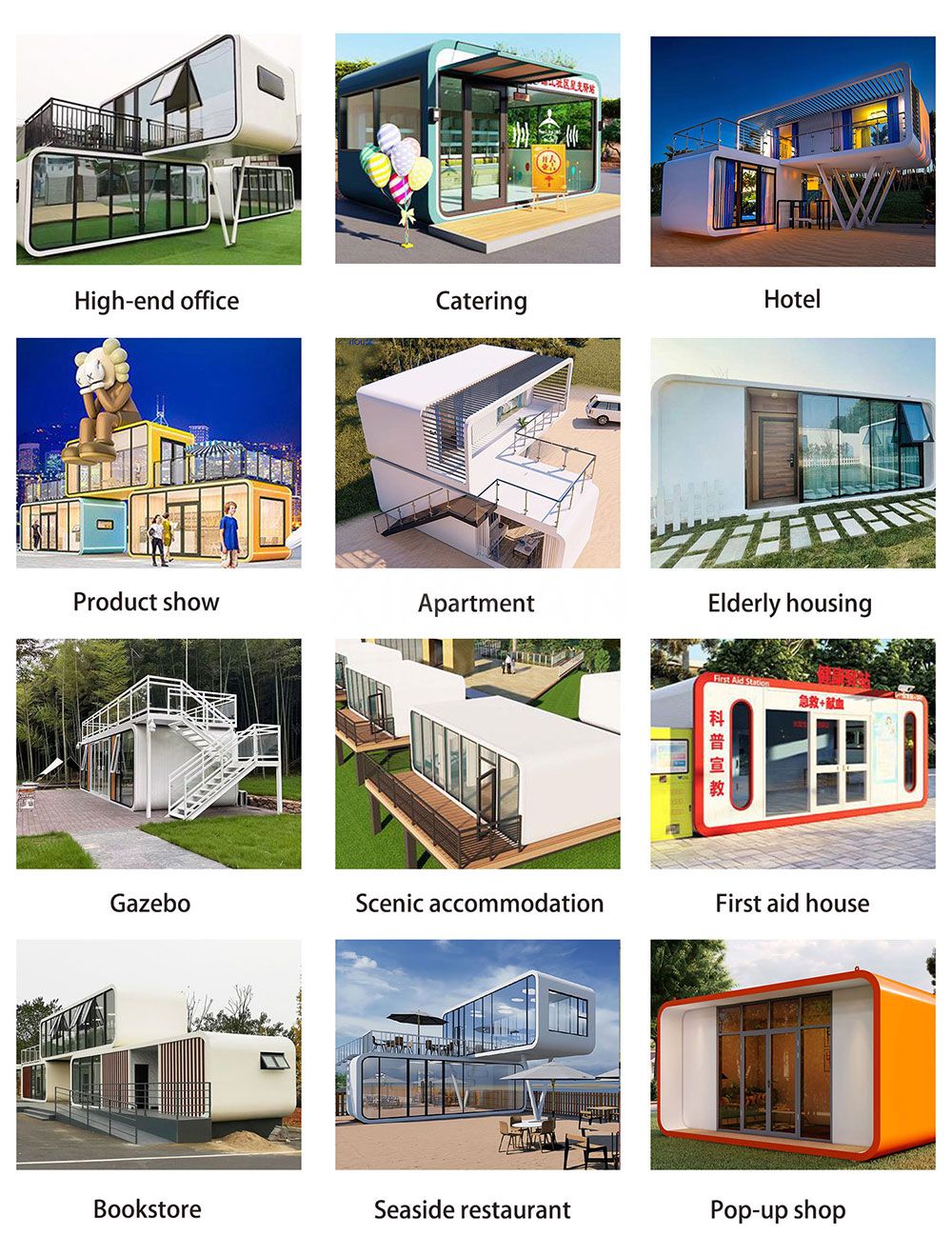

Wide range of applications:

1.[construction site] high-end office, residential, living room

2.[highway] alternative RV, midway rest upscale hotel

3.[marketing center] office, reception, apartment occupancy

4.[tourism facilities] Tourist homestay hotels, catering rooms

5.[public buildings] Bookstore, gym, cultural and art center, museum, office space:

6.[rural housing] new rural construction of residential housing

7.[club office] high-end club, corporate headquarters

8.[RV camp]4S high-end accommodation, better than the RV experience

9.[health real estate] tourism area health, elderly housing

10.[chain hotel] city unified image, identification of chain hotel room, can use intelligent decoration

11. [collective house base] has been demolished area transition residential housing

12.(municipal engineering] newspaper kiosks, offices, public toilets, green landscape pavilion project

13.vibration and relocation compensation] may be demolished, obtain compensation for commercial or residential housing

14.[development land] temporary undeveloped, or development period is long, good location free land, can be temporary hotels, restaurants, business Occupation building

15.[Product exhibition hall] Various product exhibition halls, pop-up shops (when removed)

modern design office pod prefabricated mobile aluminum apple cabin capsule frame house

FAQ

1. Do you provide on-site installation service?

We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.

2.What's your delivery time?

Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.

5. If there is a clear service life of your products?

If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

7. How can I get the quotation for the project?

If you have drawings, we can offer you our quotation according to your drawing.

If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

8. Are you a factory or trading company?

We are a factory, and also a trading company. We can provide a one-stop service for our customers.



removable china prefab modern tiny house 20ft modular apple capsule houses in nature

How Can We Help You?

Determine the type of prefabricated house, design the structural drawings, and determine the layout and dimensions according to the application scenario of the project and the dimensions of the client's land.
