The flat-top double-wing expansion house is more beautiful and flat than the ordinary expandable container house, and the folded double-wing part becomes higher, and the space vision is greater.

Inquire Now PREVIOUS PRODUCT NEXT PRODUCT

Products Description

40ft design structure:

Product Parameters：

Basic Features	Product name	Flat roof double wing expansion house
	Product model	20 ft ；30ft；40ft
	Expanded size	L5900W6420H2450mm；L9000W6420H2450mm；L11800W6420H2450mm
	Internal dimensions	L5740W6260H2250mm；L8550W6260H2210mm；L11650W6260H2210mm
	Folding size	L5900W2250H2450mm；L9000W2250H2450mm；L11800W2250H2450mm
	Unit type	two bedrooms, one living room, one kitchen and one bathroom
	Number of people staying	2-4 people
	Electric power	12KW
	Total net weight	3.5tons；4.5tons；5.6tons
Frame structure	Main frame (all galvanized national standard)	galvanized square tube
	Flank frame (all galvanized national standard)	Galvanized square pipe; 130mm galvanized hinge
	Overall frame protection paint	Electrostatic spray/Plain plastic powder painting process + anti-corrosion coating
roof	External top plate	950 type -50mm thick double sided 0.3mm, EPS color steel composite board + corrugated veneer t0.45mm
roof	Internal ceiling panel	Bamboo and wood fiberboard ceiling
wallboard	950 type -65mm thick double sided 0.3mmEPS color steel composite plate
ground	Fireproof cement fiber floor 18mm thick
doors and windows	Broken bridge aluminum window	920920mm5 PCS
doors and windows	Broken bridge aluminum double doors	1 cheek
Electric System	Circuit breaker system	32A leakage protector 1. The voltage is 220V,50HZ
	light	Bull 30*30 flat panel light, large ceiling light
	socket	Standard international three-hole, five-hole socket (socket standard can be configured according to customer requirements)
	lamp switch	Double-open, single-key switch (switch standard can be configured according to customer requirements)
	wiring	Inlet line 6², air conditioning socket 4², general socket 2.5², lighting 1.5². (Can be customized according to the country to meet the certification requirements circuit)
mountings	Includes top corner line, kicker line, wrapping Angle, waterproof tape, sling, structural adhesive (white cloud), glue gun
container loading quantity	One 40 ft high cabinet can hold 2 sets
remark	The exterior and interior of this product can be customized

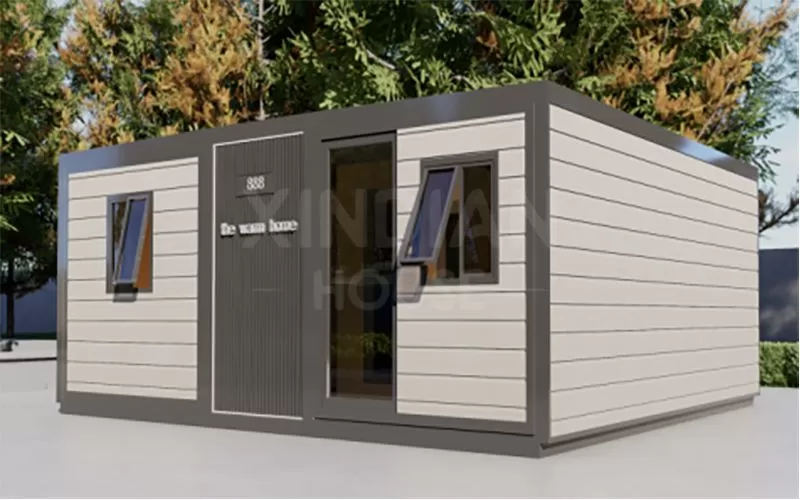

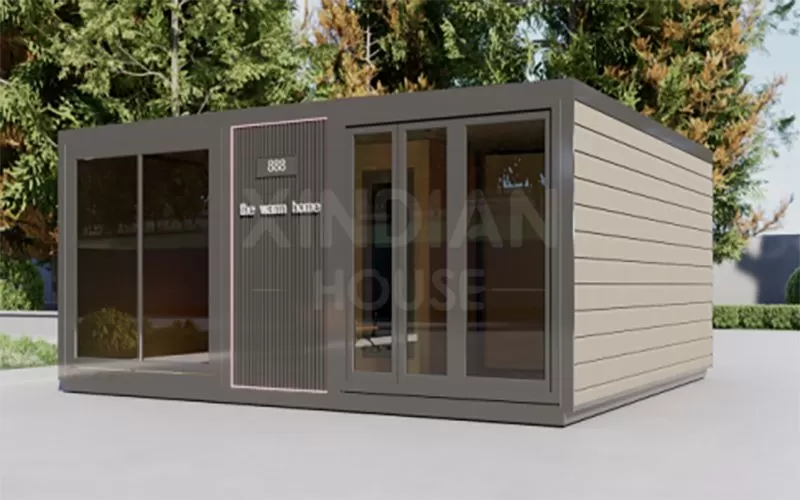

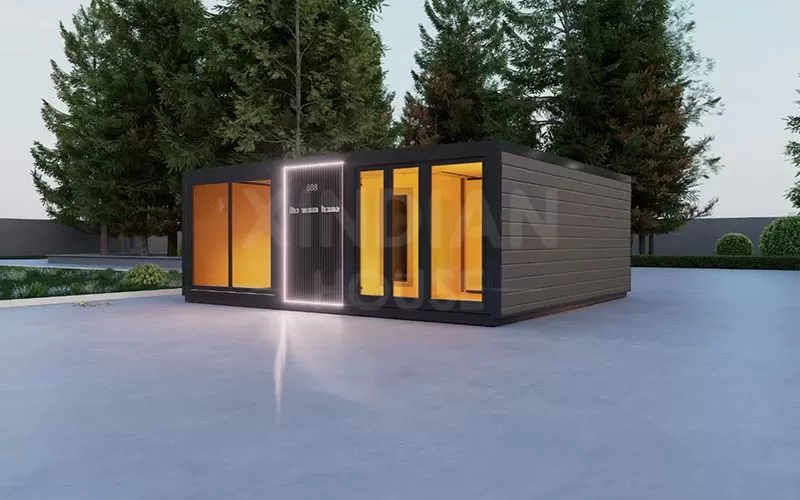

Product appearance can be customized:

Product Advantage:

1、Customizable：The visible parts of the house can be customized, including doors, windows, interior and exterior walls, roof, etc. Color,material, version, thickness, etc. can be customized according to customer needs.A number of style options are available and can also be customized to suit your needs.

2、Transport:Our foldable container homes and expandable homes are designed to be easily transported and assembled, making them ideal for remote and hard-to-reach areas. Our prefabricated homes are constructed using the latest technology and materials, ensuring strength, durability, and energy efficiency. Our light steel structure buildings offer a flexible and versatile solution for a range of applications, from commercial and industrial buildings to residential housing.

3、Quality & Stress resistance:Strong and durable, all made of steel, with strong earthquake resistance, deformation resistance;

4、Sealing:Good sealing performance, strict manufacturing process makes this kind of mobile house has very good water tightness.

5、Merits:Convenient disassembly, superior performance, stable and firm, good shockproof performance, waterproof, fireproof and anticorrosive, light weight. The house is a whole structure, with a frame, the wall is steel plate, available wood veneer, can be migrated as a whole, the service life can reach more than 20 years.

Product interior can be customized freely:

Modern Style Flat top Expandable container House Competitive Price Australia Market For Sale

FAQ

1. Do you provide on-site installation service?

We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.

2.What's your delivery time?

Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.

5. If there is a clear service life of your products?

If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

7. How can I get the quotation for the project?

If you have drawings, we can offer you our quotation according to your drawing.

If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

8. Are you a factory or trading company?

We are a factory, and also a trading company. We can provide a one-stop service for our customers.

flat roof double wing expansion house

Related Project

Products

Hot Products

How Can We Help You?

Determine the type of prefabricated house, design the structural drawings, and determine the layout and dimensions according to the application scenario of the project and the dimensions of the client's land.
