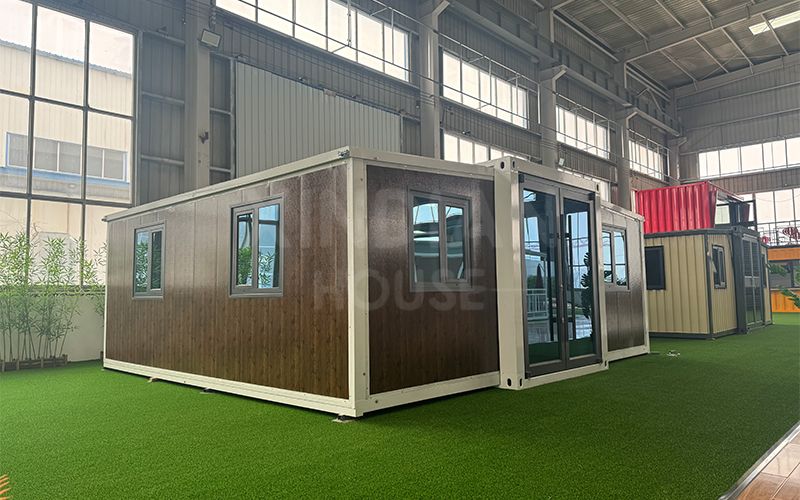

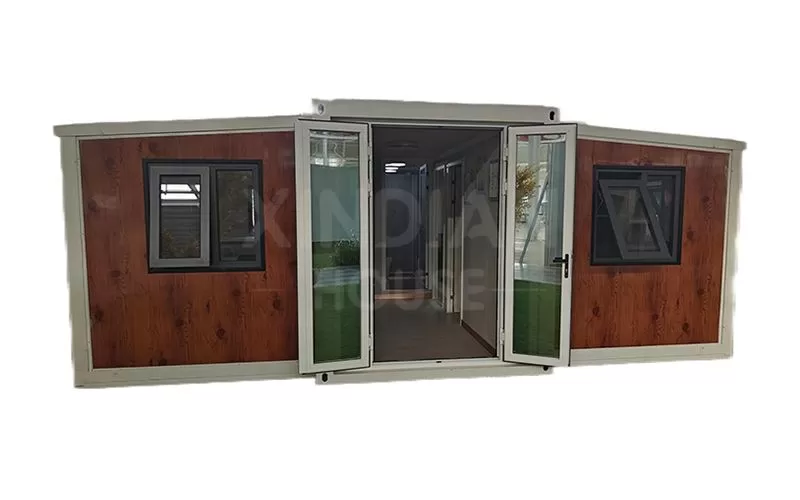

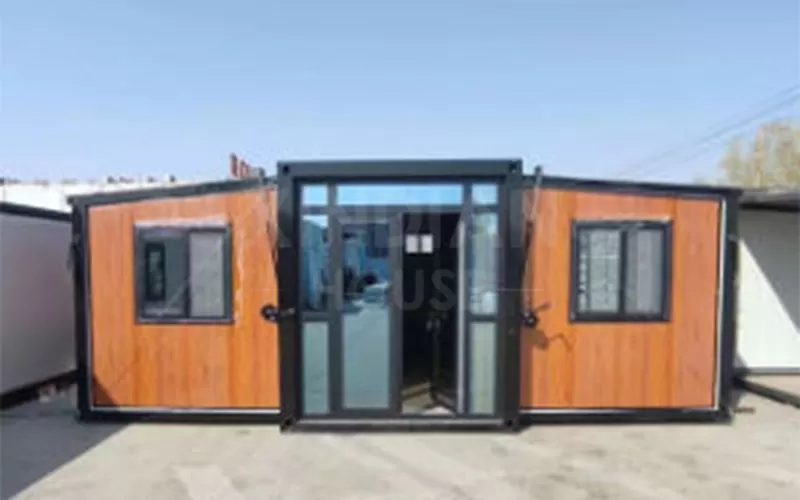

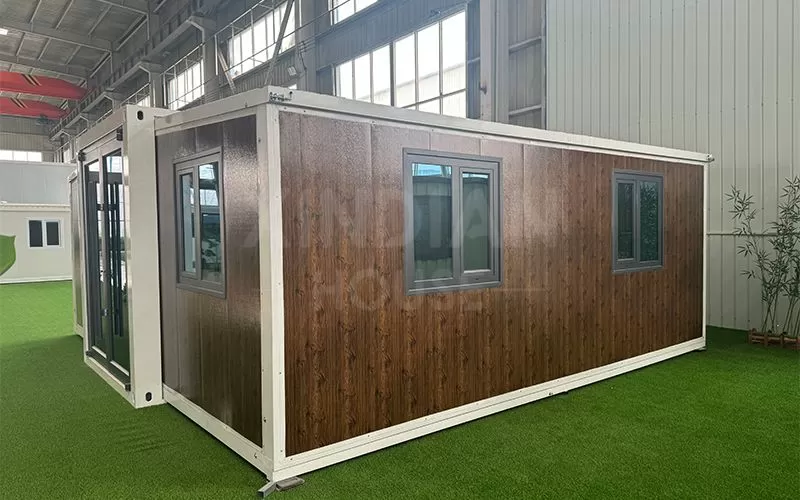

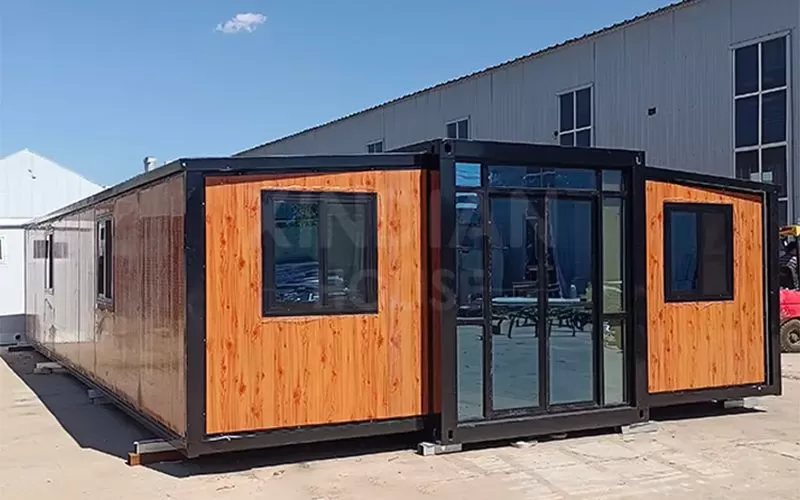

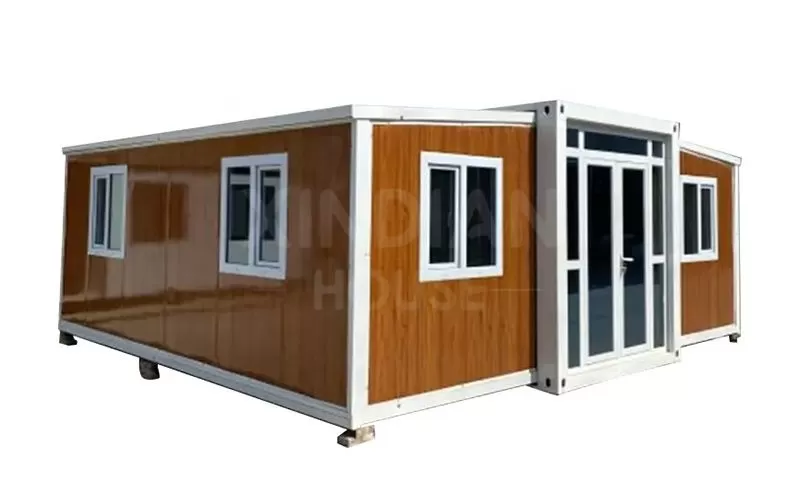

This is a customized 40ft extended container house produced by Hebei Xindian Construction Engineering Co. Customized bathroom, kitchen, bedroom, study, living room and so on. Satisfying any needs of the family.
Products Description
Product size and mode of transportation:
size | Expansion size (L*W*h) | Folding size (L*W*h) | Weight | Transportation |
20ft | 5900mm*6300mm*2480mm | 5900mm*2200mm*2480mm | 3.5T | One 40 feet high cabinet can hold 2 sets |
20ft | 5700mm*6900mm*2780mm | 5700mm*2200mm*2780mm | 3.9T | One 40 feet open top cabinet can hold 2 sets |
30ft | 9000mm*6220mm*2480mm | 9000mm*2200mm*2480mm | 4.1T | One 40 feet high cabinet can hold 1 sets |
30ft | 9000mm*6820mm*2780mm | 9000mm*2200mm*2780mm | 4.8T | One 40 feet open top cabinet can hold 1 sets |
40ft | 11800mm*6220mm*2480mm | 11800mm*2200mm*2480mm | 5.0T | One 40 feet high cabinet can hold 1 sets |
40ft | 11400mm*6820mm*2780mm | 11400mm*2200mm*2780mm | 5.8T | One 40 feet open top cabinet can hold 1 sets |

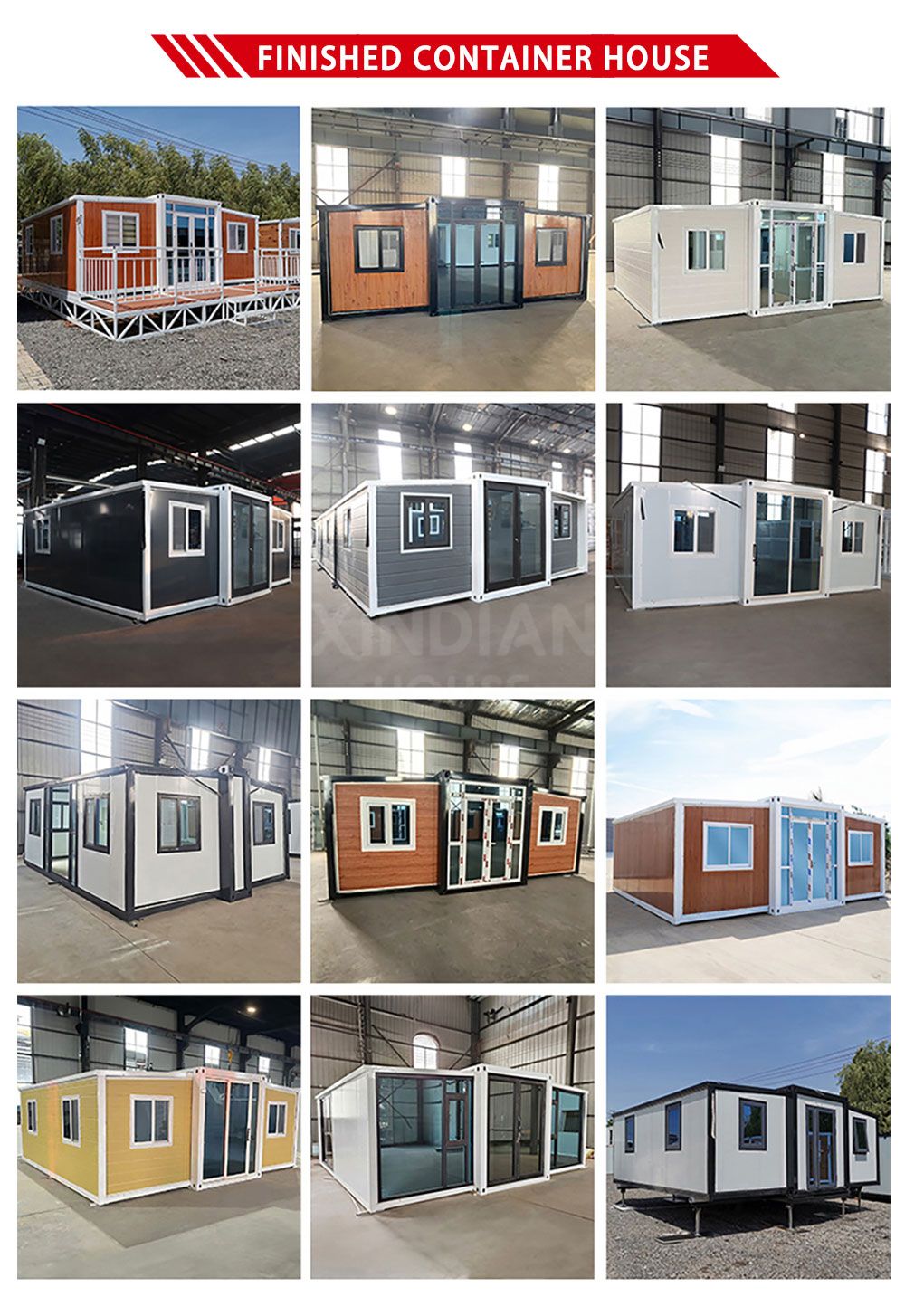

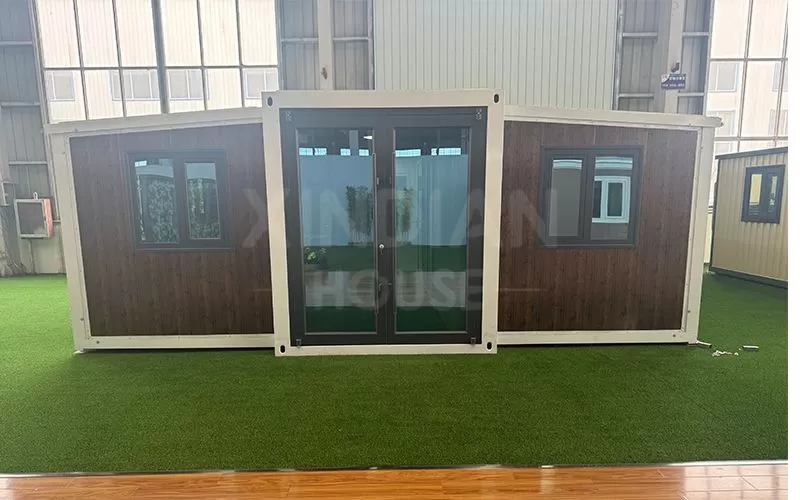

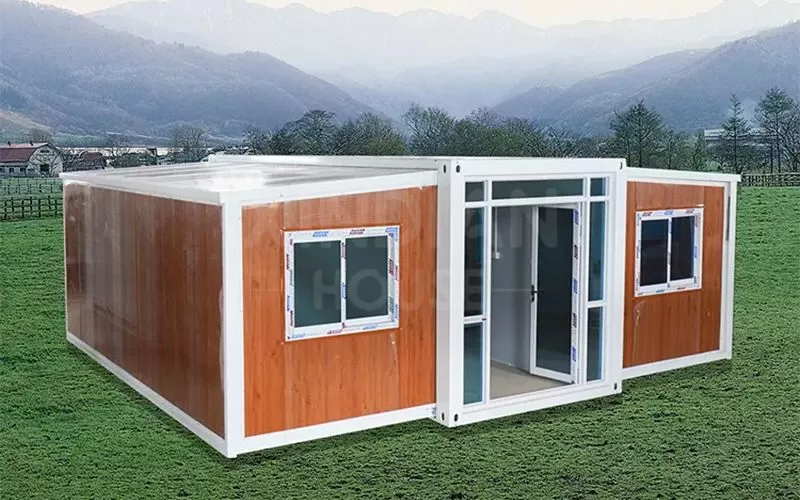

Product appearance can be customized:
Product Advantage:
1、Customizable:The visible parts of the house can be customized, including doors, windows, interior and exterior walls, roof, etc. Color,material, version, thickness, etc. can be customized according to customer needs.A number of style options are available and can also be customized to suit your needs.

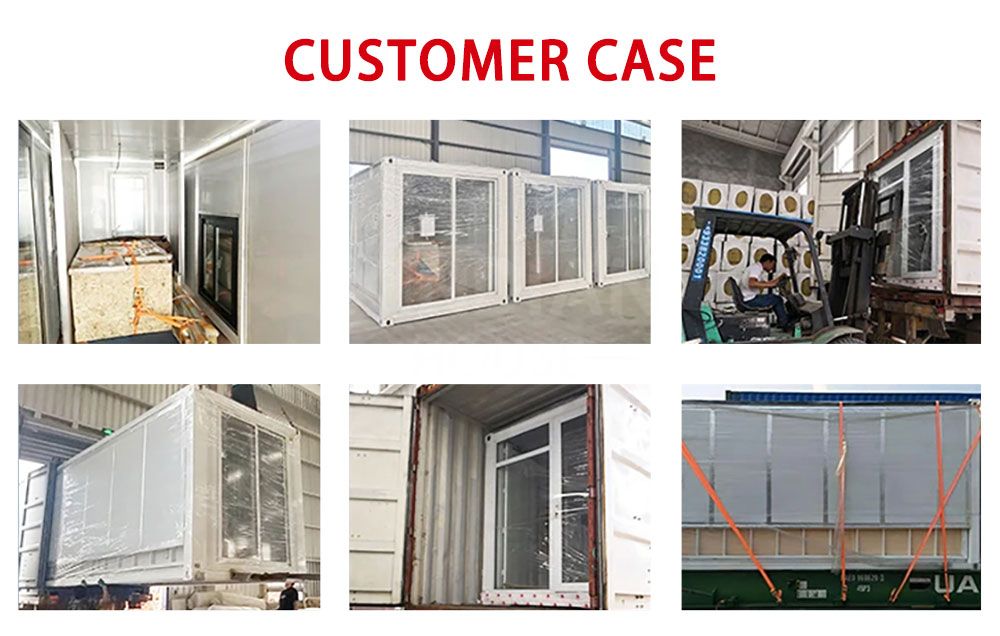

2、Transport:Our foldable container homes and expandable homes are designed to be easily transported and assembled, making them ideal for remote and hard-to-reach areas. Our prefabricated homes are constructed using the latest technology and materials, ensuring strength, durability, and energy efficiency. Our light steel structure buildings offer a flexible and versatile solution for a range of applications, from commercial and industrial buildings to residential housing.
3、Quality & Stress resistance:Strong and durable, all made of steel, with strong earthquake resistance, deformation resistance;
4、Sealing:Good sealing performance, strict manufacturing process makes this kind of mobile house has very good water tightness.
5、Merits:Convenient disassembly, superior performance, stable and firm, good shockproof performance, waterproof, fireproof and anticorrosive, light weight. The house is a whole structure, with a frame, the wall is steel plate, available wood veneer, can be migrated as a whole, the service life can reach more than 20 years.
Product interior can be customized freely:
Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used
Product Parameters:
performance index | Thermal insulation | Entry = 0.048W/m-K Fireproof performance | wind resistance | 0.60kN/m² |
sound insulation | Sound insulation ≥30dB | Fire performance | Grade A | |
Waterproof performance | Organized drainage with 16 mm/min of precipitation without leakage. | Seismic performance | Grade 8 | |
ground live load | 2.0kN/m² | Roof Live Load | 0.9kN/W² | |

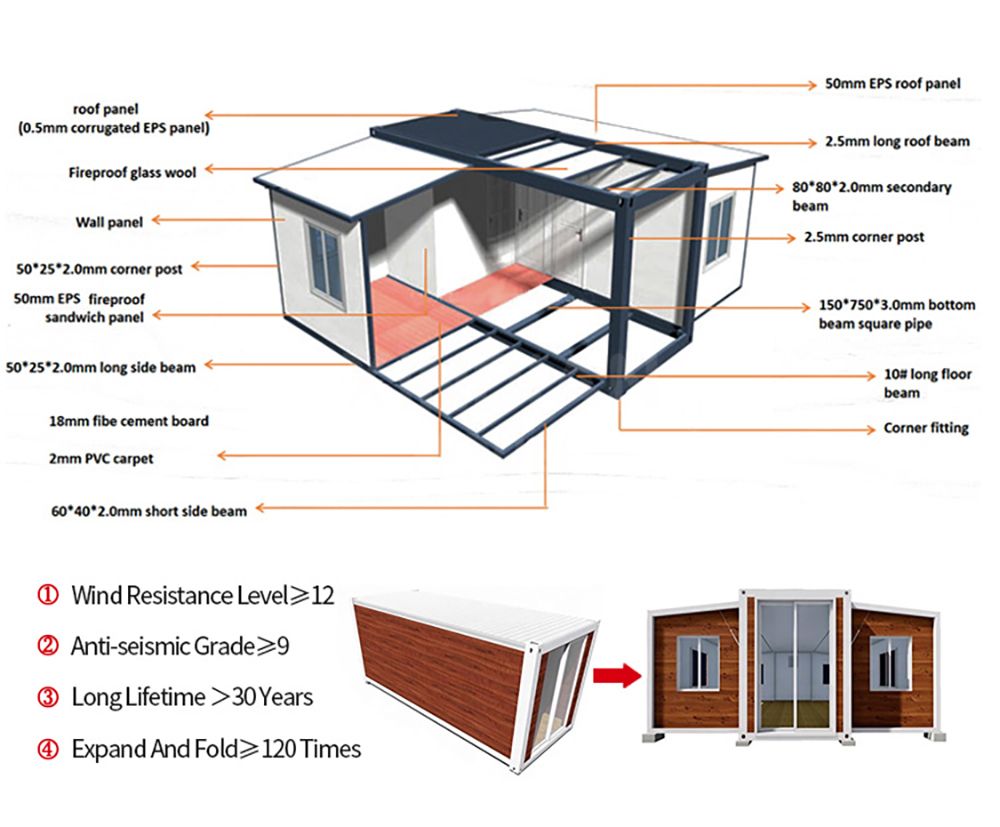

framework | main frame | Hanger head: 210*150*160, fully galvanised. Ground main beam 1: 80mm*100mm square steel, galvanised beam 2.5mm thick; Ground main beam 2: 180m shaped C-beam, galvanised beam 2.5mm thick. Ground secondary beam: 60*40*1.8mm thick galvanised square steel or C-beam; Column: 210*150mm, galvanised 2.5mm thick; Roof main beam 1: 80mm*100mm square steel, galvanised 2.5mm thick; Roof main beam 2: 140m profiled C-beam, galvanised beam 2.0mm thick. Roof secondary beam: 40*40*1.5mm thick *7 galvanised square tubes or U-beams, 20*40*1.2 square tubes *2 | ||
flanking frame | P80*1.5mm special-purpose tube/P65*1.5mm special-purpose tube/L-type special galvanised steel sheet, thickness 2.5mm 50*70*1.5mm Rectangular Pipe/L25*25*1.0 Angle Steel 2.5mm galvanised bending profiled edge beams 2.5mm galvanised bending water guide channel | |||
surface treatment | Electrostatic spraying plastic powder baking paint ≥80 Hm | |||
wallboard | Flame Retardant Styrene Board | 75mm thick 950 type EPS composite purification board, capacity 14kg/m³ flame retardant, PE film adhesion, colour (white/grey and other alternatives), plain inside and outside or (alternatively, metal engraved exterior panels). | ||
roof | roofing | 50mm thick 950 type EPS composite purification board, capacity 14kg/m³ flame retardant. Structural adhesive + butyl tape, first waterproof. Outer laminated single piece colour steel tile, thickness 0.35mm, second waterproofing. | ||
suspended ceiling | 190 Strip strip ceiling panels, thickness 0.32 mm. or alternative versions. | |||
ground level | structural plate | Cement board + multi-layer wood glue waterproof board, thickness 20mm. | ||
synthetic flooring | Manually applied pvc floor leather, thickness 1.6mm, heat fused caulking. | |||
door | Main entrance door | KFC split/broken bridge aluminum split/aluminum magnesium alloy push and pull, size ≥W1900mm×H2280mm, All tempered glass. (optional door) | ||
bedroom door | Steel door set, size ≥W840mm×H2040mm, national standard fire lock. | |||
bathroom door | Titanium magnesium alloy single door, size ≥W750mm×H2000mm, all tempered glass. | |||
Dry and wet separation door | Titanium magnesium alloy sliding door, size ≥W1360mm×H2130mm, all tempered glass. | |||
window | Sign window, toilet window | Broken bridge aluminum casement window/Plastic steel casement window/aluminum magnesium alloy track sliding window, size: W930mm×h930mm (quantity and size can be customized) | ||
bathroom | land disposal | Marble water tray with stainless steel floor drain | ||
Wall finish | uv board fit waterproof | |||
sanitary fittings | Toilet, shower, sink, mirror box, water supply and drainage pipe fittings | |||
electric | light | LED round row/strip ceiling light 15W, the quantity depends on the drawing. | ||
socket | Optional European standard, American standard, Australian standard, national standard. | |||
switch | Single key switch x 3. | |||
distribution box | Concealed distribution box x 1 pc. | |||
air switch | National and other standards are available. | |||
CEE Industrial Plugs | 220V,50Hz,3P32A×1个。 | |||
cabling | Household line: 3*6 square, air conditioning socket: 3*4 square, ordinary socket: 3*2.5 square, lighting: 2*1.5 square. | |||
angular line | Corner decoration | Manganese magnesium alloy material kicker line, top corner line, negative corner line | ||
waterproof | waterproof material | D-type rubber strip for each movable joint; Butyl waterproof tape |
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
