The Detachable Container House is built as a single unit and can be stacked and combined at will. Detachable Container House can be assembled in any length and width direction, and can be stacked in three layers, and can be decorated by adding shaped roofs and terraces.
Products Description
Product Parameters:
Standard packing container house arrangement list | |||||||
Basic Features | External dimensions (L*W*H) | 5800*2480*2896mm | Inner size (L*W*H) | 5630*2310*2540mm | |||
weight | 1200KG | container loading quantity | A 40-foot cabinet can hold six sets | ||||
heat-shielding performance | £=0.043W/ m m.K | wind-resistant performance | 0.50KN/㎡ | ||||
Sound insulation property | Volume isolation ≥30dB | fireproof performance | grade A | ||||
waterproofness | GradeⅡ | anti-seismic property | grade 8 | ||||
Ground live load | 2.0KN/㎡ | roof live load | 0.50KN/㎡ | ||||
structure surface | Electrostatic spray white | connection type | High strength bolted connection | ||||
frame | Top frame Bottom frame | 2178mm long, 170mm*2.3mm, galvanized 80g/㎡;5378mm long, 170mm*2.3mm, galvanized 80g/㎡;40*60*10*1.3mm thick pressed steel; | |||||
Steel column | 2536mm*435mm*2.3mm. Galvanized 80g/㎡ | ||||||
Surface anti-corrosion treatment | electrostatic spraying | Painting process | |||||
Roof | roofing tile | 0.4mm color steel plate, 360 degree bite | |||||
thermal insulation material | 75mm thick glass silk wadded | ||||||
damp-proof course | 1.0mmPE resin film | ||||||
Strip ceiling | v831 ceiling plate 0.35mm | ||||||
ground | Floor | Cement modification board | |||||
PVC floor glue | PVC plastic floor 1.6 thick | ||||||
shingle | New rock wool composite board | 75mm thick -950 type, double side 0.3mm outer orange peel grain inner flat unit weight 50kg | |||||
window | Plastic steel window series, white | 930mm *1110mm, hollow glass 5+9A+5 with screen window, guardrail | |||||
door | High quality steel door | 970mm*1970mm (Class A1 fire-resistant steel and wood door) | |||||
Electric System | Electric Box | Hidden assembly electric box | |||||
Industrial plug and socket | 220V,50Hz,3P 32A | ||||||
light | LED dust-proof light, 40W | ||||||
socket | 10A five-hole socket;16A three-hole air conditioning socket | ||||||
lamp switch | Single key switch | ||||||
wiring | Household line: 3*6㎡, air conditioning socket: 3*4㎡, five-hole socket: 3*2.5㎡ Lighting: 3*1.5㎡ indoor maximum load 7040W | ||||||
mountings | Corner piece | Color steel press Angle, 0.5mm thick | |||||
connection fittings | M12 hex socket high strength bolt | ||||||
draining tank | 5635mm, 0.5mm thick;2690mm, 0.5mm thick | ||||||
Wall panel card | Z-card 5635mm, 0.5mm thick;Z-card 2690mm, 0.5mm thick | ||||||
downspout | PVC downspout |

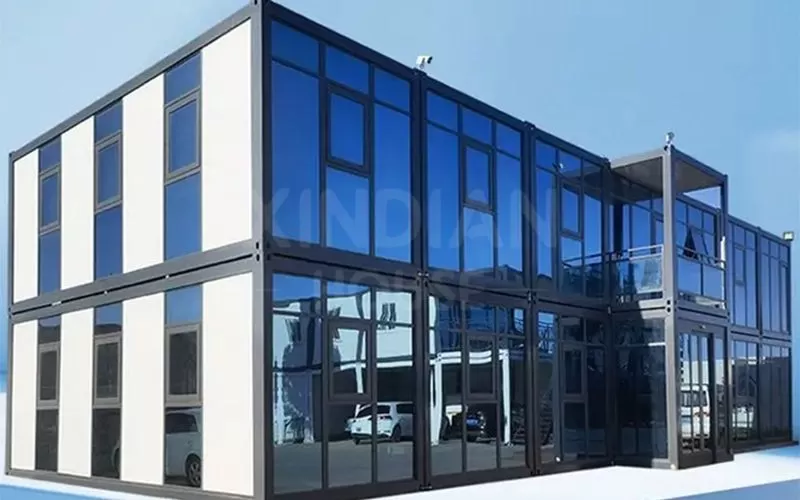

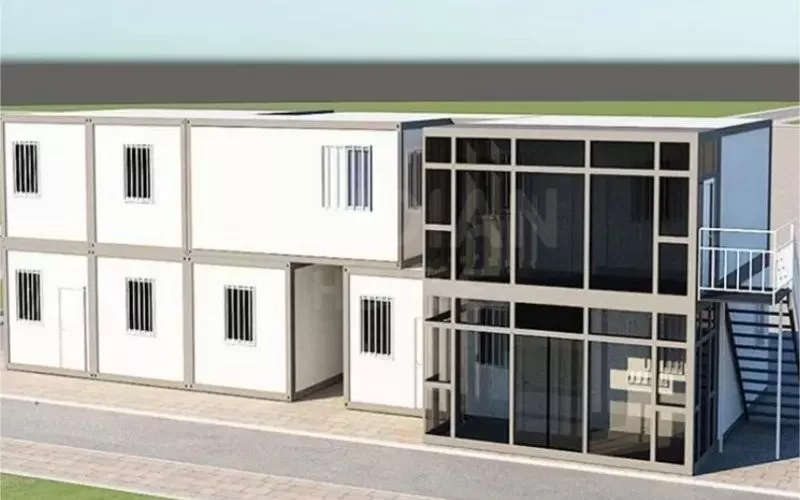

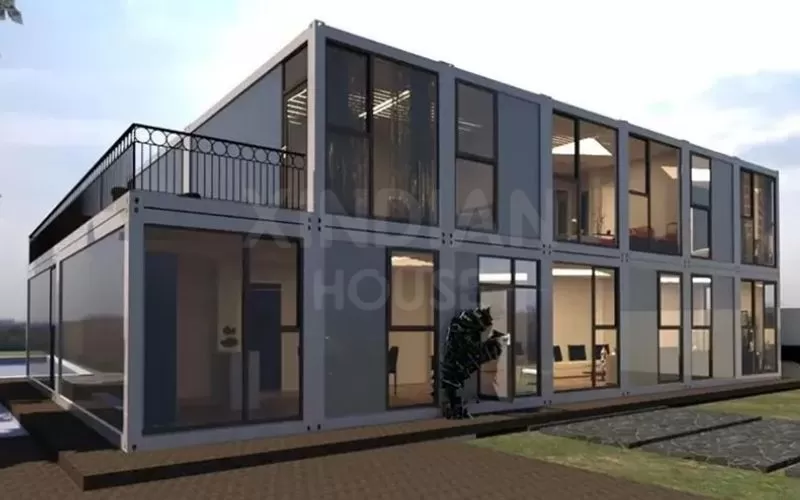

Product appearance can be customized:
Product interior can be customized freely:
Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used
Product Advantage:
1.convenient transportation, especially suitable for often replace the construction point of the unit.
2.strong and durable, all composed of galvanized steel, stable and firm, good shock performance. Has a strong deformation resistance; The sealing performance is good, and the strict manufacturing process makes this mobile room have good watertightness.
3.make use of the characteristics of personalized creation to develop personalized art. Make it personalized, in line with personal characteristics and pursuits.
4.the packaging box room is based on a single box, which can be derived from many combination Spaces. Such as meeting room dormitory, kitchen, toilet, etc. The standard width is 3m, the height is 3m, and the length is 6m to 12m.
5.convenient disassembly, superior performance, light weight. The house is a whole structure, with a frame, and the wall is composed of colored steel plate and glass silk wool or rock wool, which can be finished with wood, and can be migrated as a whole. The service life can reach more than 20 years.
6.inexpensive, reusable. Recycling a waste packaging box can save 1.7 tons of steel and 0.4 cubic meters of wood, reduce carbon dioxide by 3.49 tons, and do not produce construction waste. If 100,000 waste containers are used a year, 349,000 tons of carbon dioxide can be reduced and 340 million KWH of electricity can be saved. Packaging box module technology reduces construction time by 70%.
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
