This is a flat pack container house with carved metal panels.Standard space design.Simple and atmospheric appearance.The bed is the main facility of the bedroom, according to needs, can also be configured with desks, chairs and other learning or work facilities, the bathroom should be designed with a good ventilation system to ensure air circulation. Focus on the combination of practicality and aesthetics, to provide a comfortable living space for the occupants.
Products Description
The use of packing container house as standard rooms for living accommodation is a flexible, convenient and economical solution, especially suitable for a variety of scenarios such as temporary housing, tourist vacations and construction site accommodation.

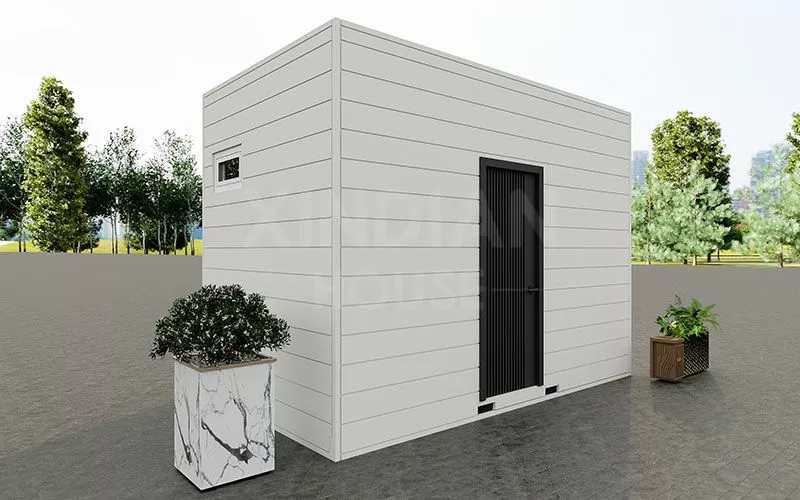

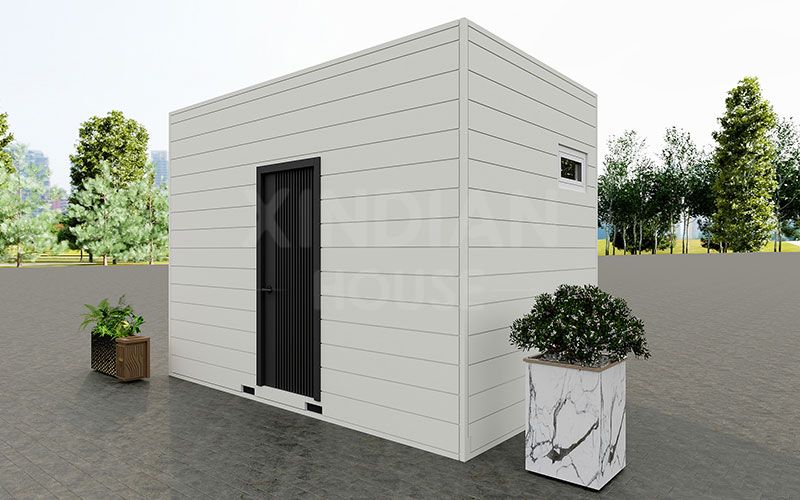

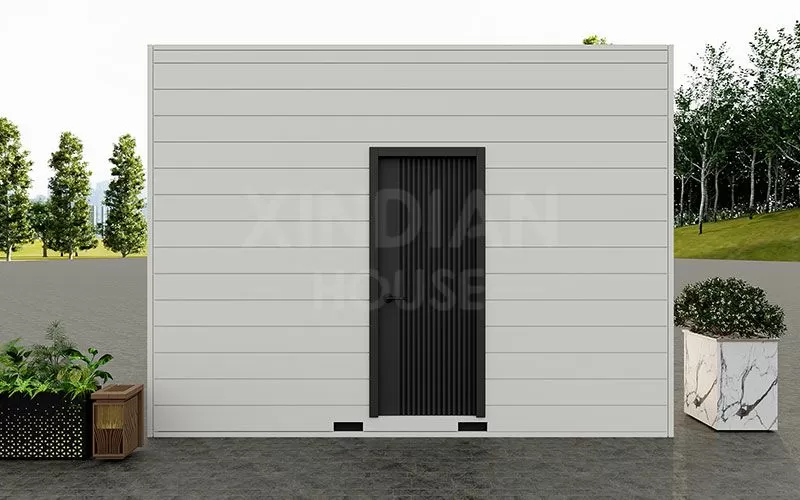

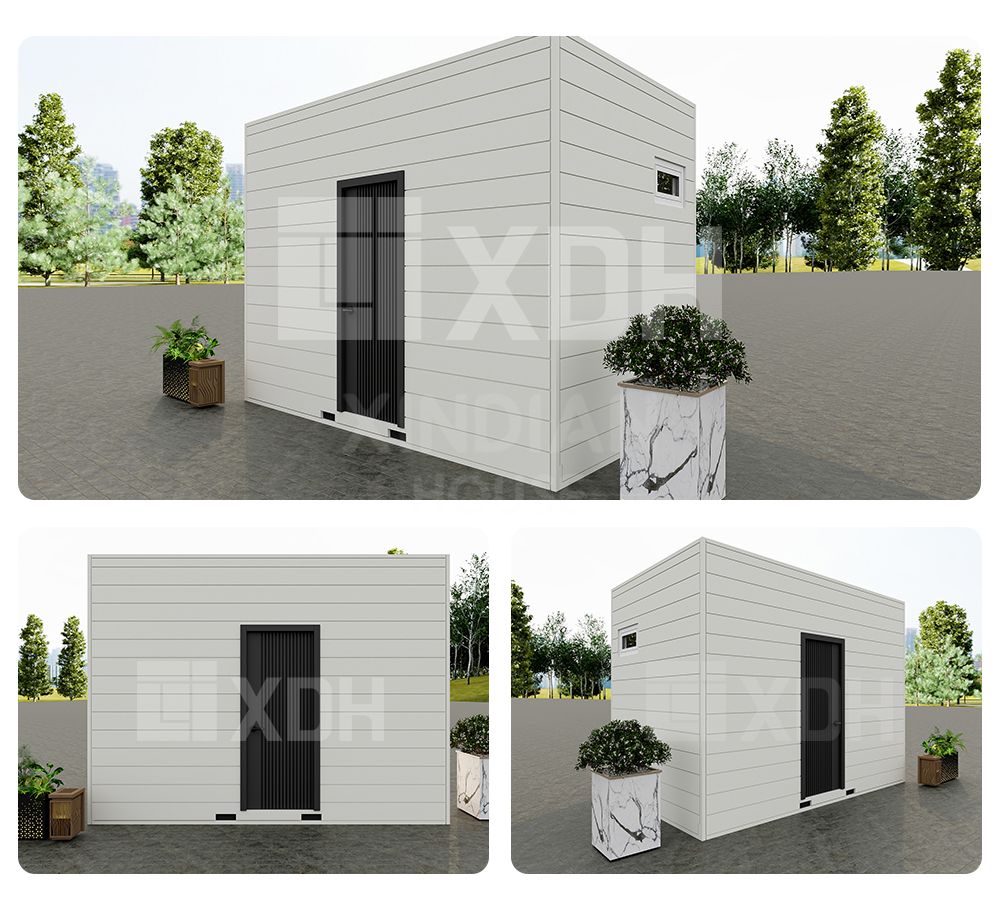

Product appearance can be customized:
Product Parameters:

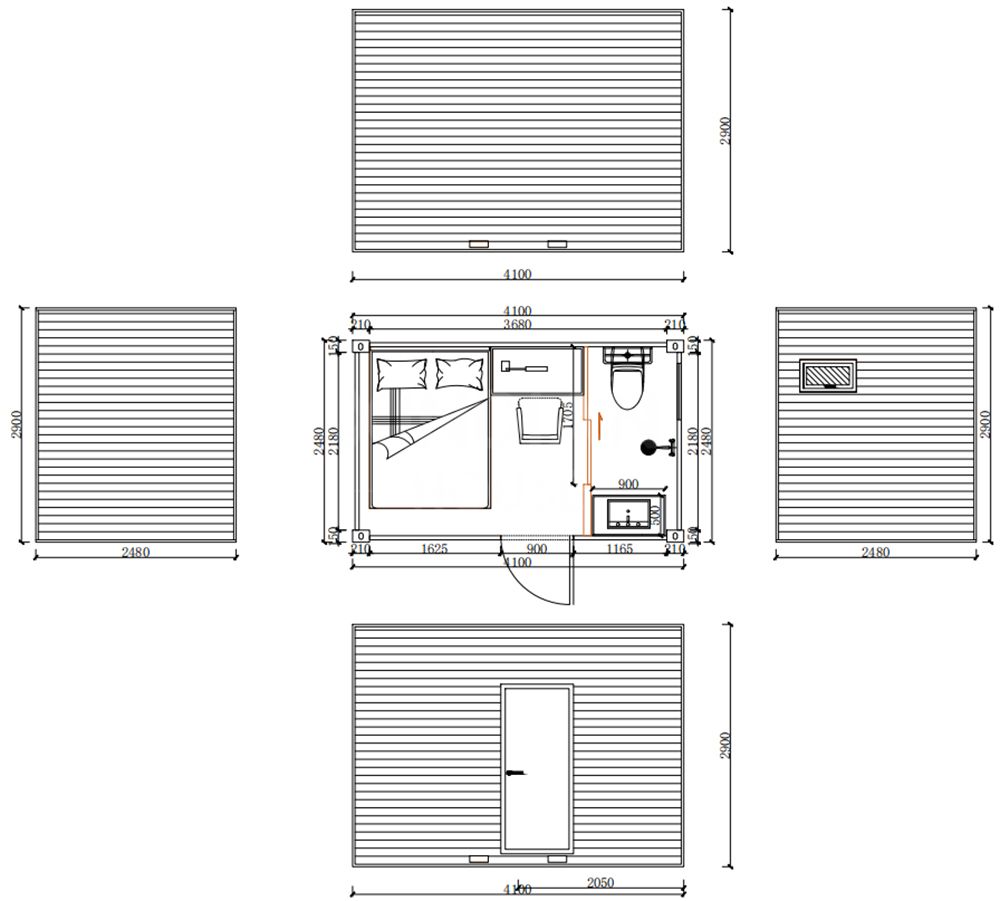

Standard packing container house arrangement list | |||||||
Basic Features | External dimensions (L*W*H) | 5800*2480*2896mm | Inner size (L*W*H) | 5630*2310*2540mm | |||
weight | 1200KG | container loading quantity | A 40-foot cabinet can hold six sets | ||||
heat-shielding performance | £=0.043W/ m m.K | wind-resistant performance | 0.50KN/㎡ | ||||
Sound insulation property | Volume isolation ≥30dB | fireproof performance | grade A | ||||
waterproofness | GradeⅡ | anti-seismic property | grade 8 | ||||
Ground live load | 2.0KN/㎡ | roof live load | 0.50KN/㎡ | ||||
structure surface | Electrostatic spray white | connection type | High strength bolted connection | ||||
frame | Top frame Bottom frame | 2178mm long, 170mm*2.3mm, galvanized 80g/㎡;5378mm long, 170mm*2.3mm, galvanized 80g/㎡;40*60*10*1.3mm thick pressed steel; | |||||
Steel column | 2536mm*435mm*2.3mm. Galvanized 80g/㎡ | ||||||
Surface anti-corrosion treatment | electrostatic spraying | Painting process | |||||
Roof | roofing tile | 0.4mm color steel plate, 360 degree bite | |||||
thermal insulation material | 75mm thick glass silk wadded | ||||||
damp-proof course | 1.0mmPE resin film | ||||||
Strip ceiling | v831 ceiling plate 0.35mm | ||||||
ground | Floor | Cement modification board | |||||
PVC floor glue | PVC plastic floor 1.6 thick | ||||||
shingle | New rock wool composite board | 75mm thick -950 type, double side 0.3mm outer orange peel grain inner flat unit weight 50kg | |||||
window | Plastic steel window series, white | 930mm *1110mm, hollow glass 5+9A+5 with screen window, guardrail | |||||
door | High quality steel door | 970mm*1970mm (Class A1 fire-resistant steel and wood door) | |||||
Electric System | Electric Box | Hidden assembly electric box | |||||
Industrial plug and socket | 220V,50Hz,3P 32A | ||||||
light | LED dust-proof light, 40W | ||||||
socket | 10A five-hole socket;16A three-hole air conditioning socket | ||||||
lamp switch | Single key switch | ||||||
wiring | Household line: 3*6㎡, air conditioning socket: 3*4㎡, five-hole socket: 3*2.5㎡ Lighting: 3*1.5㎡ indoor maximum load 7040W | ||||||
mountings | Corner piece | Color steel press Angle, 0.5mm thick | |||||
connection fittings | M12 hex socket high strength bolt | ||||||
draining tank | 5635mm, 0.5mm thick;2690mm, 0.5mm thick | ||||||
Wall panel card | Z-card 5635mm, 0.5mm thick;Z-card 2690mm, 0.5mm thick | ||||||
downspout | PVC downspout |

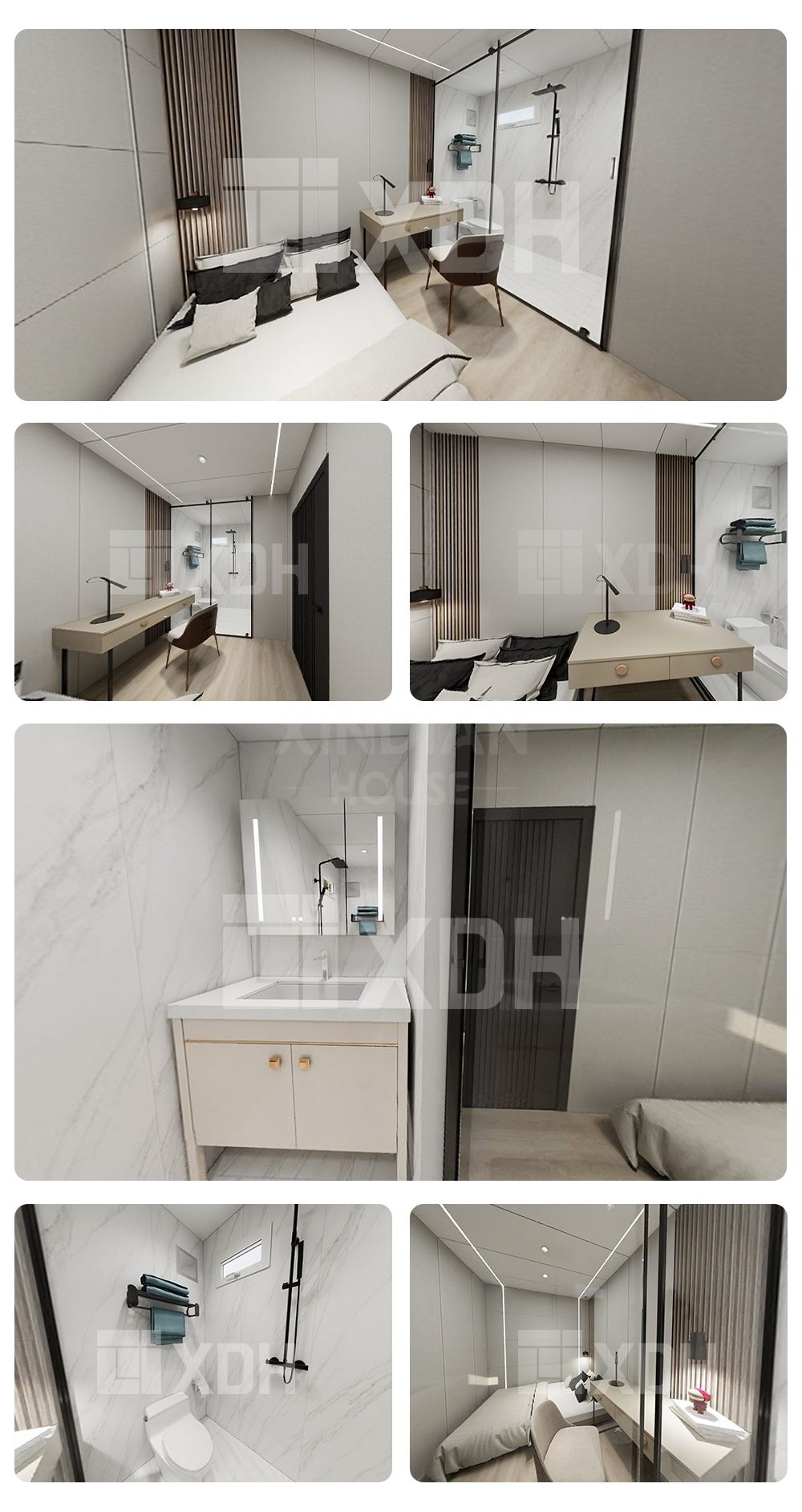

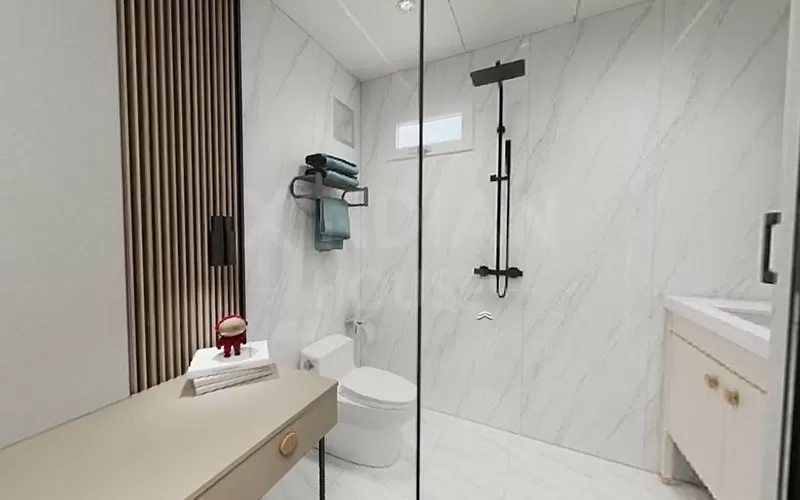

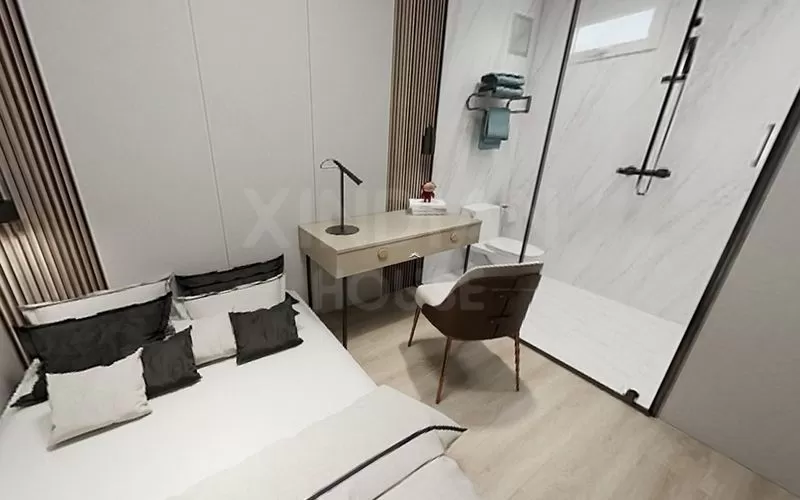

Product interior can be customized freely:
Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used
Product interior can be customized freely:
Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used
Advantages of packing container house as standard rooms for living accommodation:
1.Modular design:
Packing container house adopts standardized and modular design, which can be flexibly spliced and combined according to the actual demand to form accommodation units of different sizes and layouts. This design not only facilitates transportation and installation, but also meets the needs of families of different sizes or collective living.
2.Rapid construction:
As the Packing container house are prefabricated products, they are easy and quick to install on site, greatly reducing the construction period. This is especially important for scenarios that require rapid deployment of accommodation facilities (e.g. construction sites, emergency relocation, etc.).
3.Durability & Safety:
Packing container house generally use high-quality steel as the main structure, with high seismic and wind resistance, able to resist harsh weather conditions and protect the lives and property of occupants.
4.Livability:
The interior decoration can be customized according to user preferences and needs, and is equipped with perfect water and electricity facilities, thermal insulation materials, and functional areas such as doors, windows, air conditioning, and bathrooms to ensure comfortable living.
5.Environmental protection and energy saving:
The packing container house manufacturing process is low-carbon and environmentally friendly, and the materials can be recycled. In the operation phase, energy consumption is also relatively low due to its good heat preservation and insulation properties.
6.Flexibility and Expandability:
As demand changes, the packing container house accommodation unit can be highly flexible as the number of rooms can be increased or decreased or relocated at any time. This is particularly suitable for scenarios where frequent changes in accommodation locations are required.
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
