modular apartment building flat pack container home villa with floor plan living container house

Share:

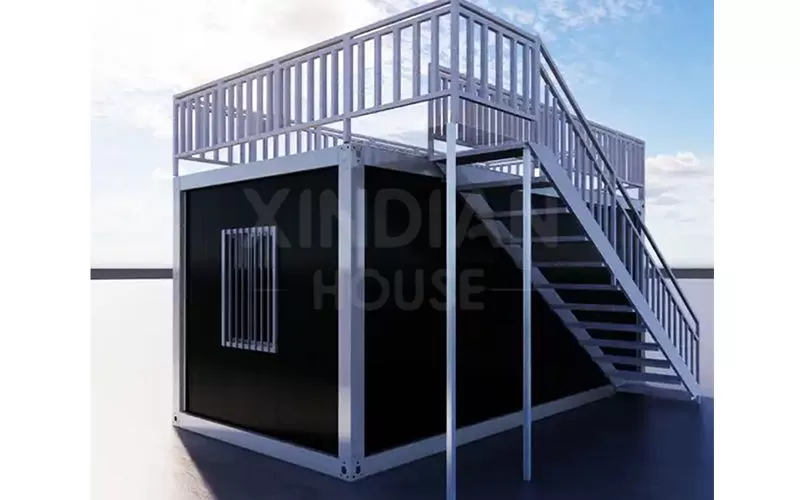

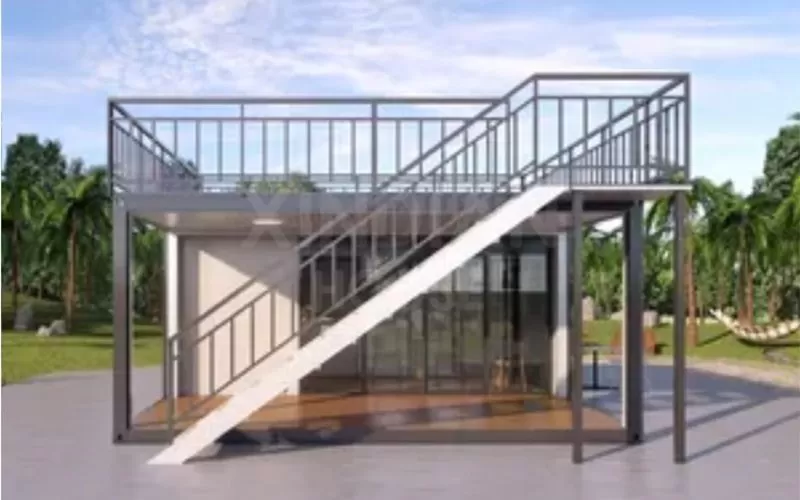

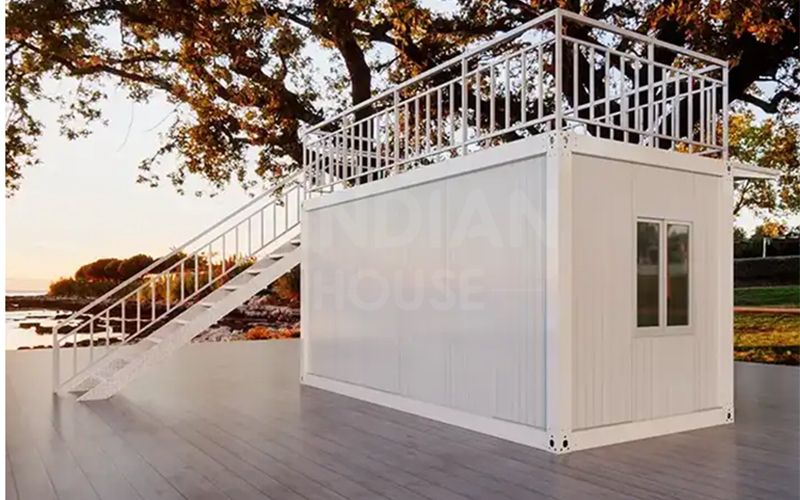

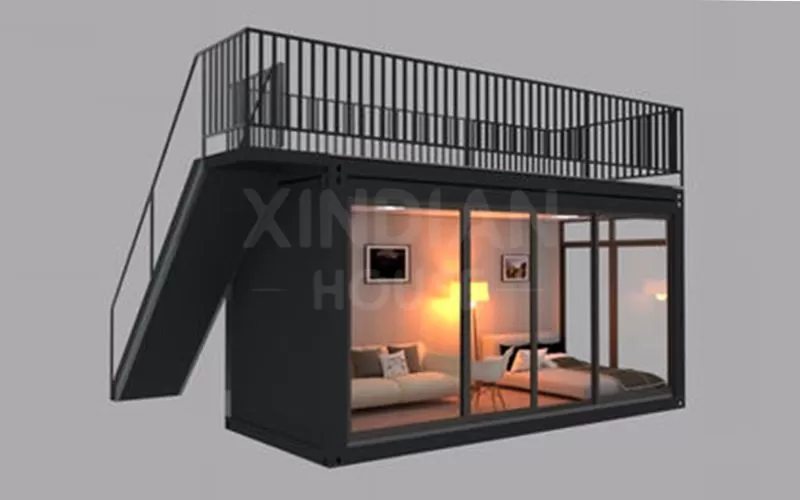

The flat pack container house design introduces modern home elements, according to the different environments in which the house is located, according to the demand, free assembly and disassembly.Design with stairs and terrace, you can drink afternoon tea on the above to enjoy the outdoor scenery, enjoy the chic life.

Products Description

modular apartment building prefab cheap flat pack container home villa with floor plan living container house

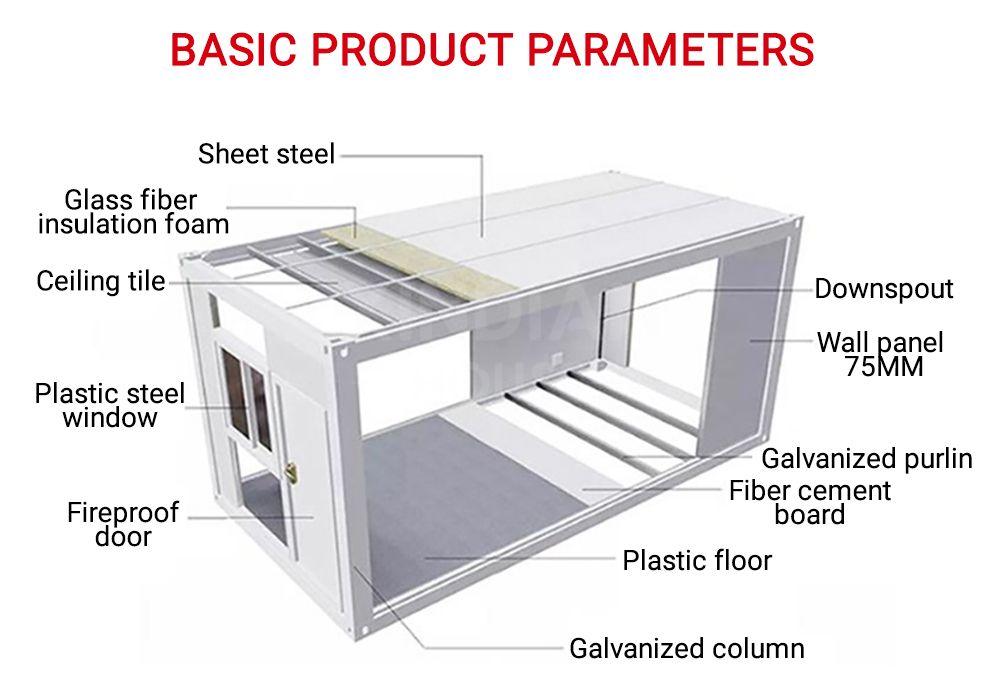

Product Parameters:

                                                         Standard packing container house arrangement list
Basic FeaturesExternal dimensions (L*W*H)5800*2480*2896mmInner size (L*W*H)5630*2310*2540mm
weight1200KGcontainer loading quantityA 40-foot cabinet
can hold six sets
heat-shielding performance
£=0.043W/ m m.K
wind-resistant performance0.50KN/㎡
Sound insulation propertyVolume isolation ≥30dBfireproof performancegrade A
waterproofness
GradeⅡanti-seismic property
grade 8
Ground live load2.0KN/㎡roof live load
0.50KN/㎡
structure surface
Electrostatic spray whiteconnection type
High strength bolted
 connection
frameTop frame
Bottom frame
2178mm long, 170mm*2.3mm, galvanized 80g/㎡;5378mm long, 170mm*2.3mm,
galvanized 80g/㎡;40*60*10*1.3mm thick pressed steel;
Steel column2536mm*435mm*2.3mm. Galvanized 80g/㎡
Surface anti-corrosion treatmentelectrostatic sprayingPainting process
Roofroofing tile0.4mm color steel plate, 360 degree bite
thermal insulation material
75mm thick glass silk wadded
damp-proof course1.0mmPE resin film
Strip ceilingv831 ceiling plate 0.35mm
ground
FloorCement modification board
PVC floor gluePVC plastic floor 1.6 thick
shingle
New rock wool composite board75mm thick -950 type, double side 0.3mm outer orange peel grain inner
flat unit weight 50kg
window
Plastic steel window series, white
930mm *1110mm, hollow glass 5+9A+5 with screen window, guardrail
doorHigh quality steel door970mm*1970mm (Class A1 fire-resistant steel and wood door)
Electric SystemElectric BoxHidden assembly electric box
Industrial plug and socket220V,50Hz,3P 32A
lightLED dust-proof light, 40W
socket10A five-hole socket;16A three-hole air conditioning socket
lamp switch
Single key switch
wiring
Household line: 3*6㎡, air conditioning socket: 3*4㎡, five-hole socket: 3*2.5㎡
Lighting: 3*1.5㎡ indoor maximum load 7040W
mountingsCorner pieceColor steel press Angle, 0.5mm thick
connection fittingsM12 hex socket high strength bolt
draining tank
5635mm, 0.5mm thick;2690mm, 0.5mm thick
Wall panel cardZ-card 5635mm, 0.5mm thick;Z-card 2690mm, 0.5mm thick
downspoutPVC downspout

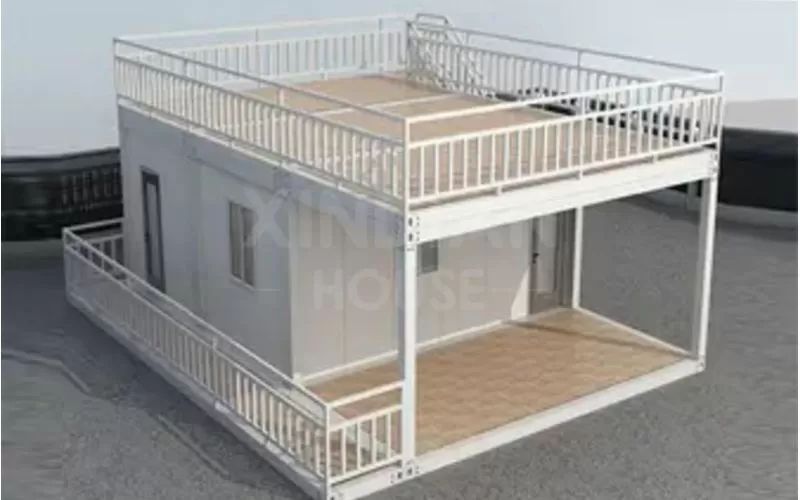

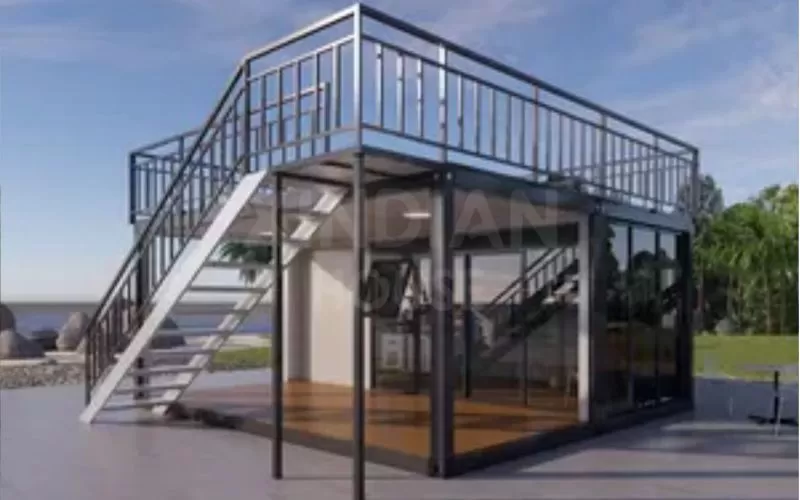

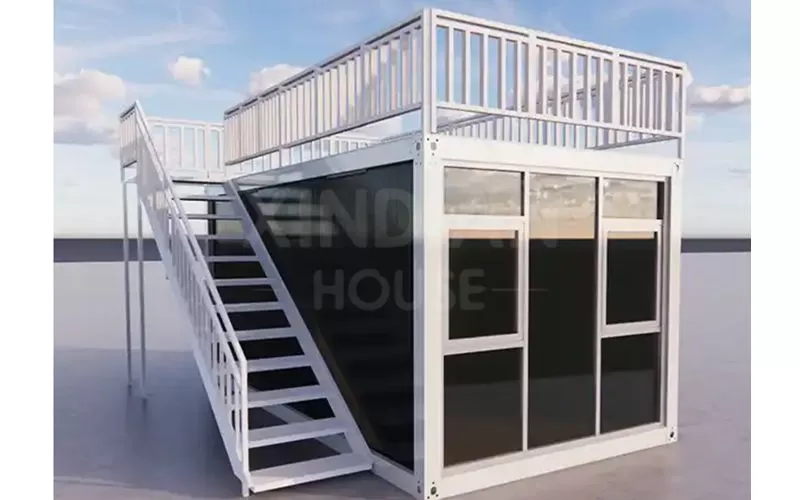

Product appearance can be customized:

custom shipping container homes companies modular tiny cabin container flat pack prefabricated

Product interior can be customized freely:

Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used

practical prefab house removable flat pack container houses

Product Advantage:

1.convenient transportation, especially suitable for often replace the construction point of the unit.

2.strong and durable, all composed of galvanized steel, stable and firm, good shock performance. Has a strong deformation resistance; The sealing performance is good, and the strict manufacturing process makes this mobile room have good watertightness.

3.make use of the characteristics of personalized creation to develop personalized art. Make it personalized, in line with personal characteristics and pursuits.

4.the packaging box room is based on a single box, which can be derived from many combination Spaces. Such as meeting room dormitory, kitchen, toilet, etc. The standard width is 3m, the height is 3m, and the length is 6m to 12m.

5.convenient disassembly, superior performance, light weight. The house is a whole structure, with a frame, and the wall is composed of colored steel plate and glass silk wool or rock wool, which can be finished with wood, and can be migrated as a whole. The service life can reach more than 20 years.

6.inexpensive, reusable. Recycling a waste packaging box can save 1.7 tons of steel and 0.4 cubic meters of wood, reduce carbon dioxide by 3.49 tons, and do not produce construction waste. If 100,000 waste containers are used a year, 349,000 tons of carbon dioxide can be reduced and 340 million KWH of electricity can be saved. Packaging box module technology reduces construction time by 70%.

modular apartment building prefab cheap flat pack container home villa with floor plan living container house

custom shipping container homes companies modular tiny cabin container flat pack prefabricated

FAQ

1. Do you provide on-site installation service?

We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.

2.What's your delivery time?

Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.

5. If there is a clear service life of your products?

If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

7. How can I get the quotation for the project?

If you have drawings, we can offer you our quotation according to your drawing.

If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

8. Are you a factory or trading company?

We are a factory, and also a trading company. We can provide a one-stop service for our customers.

custom shipping container homes companies modular tiny cabin container flat pack prefabricated

How Can We Help You?

Determine the type of prefabricated house, design the structural drawings, and determine the layout and dimensions according to the application scenario of the project and the dimensions of the client's land.
