China portable shipping modular prefab folding living homes

Folding container house material anticorrosion performance is good, the skeleton adopts galvanized baking paint material, the material strength is high, can fold over 10 times repeatedly. The house life is long, the repeated utilization rate is high. Maximize material cost savings.

Inquire Now PREVIOUS PRODUCT NEXT PRODUCT

Products Description

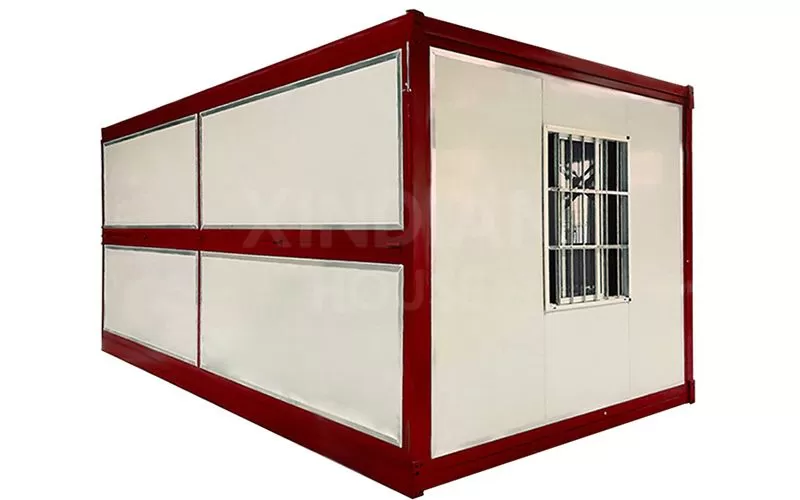

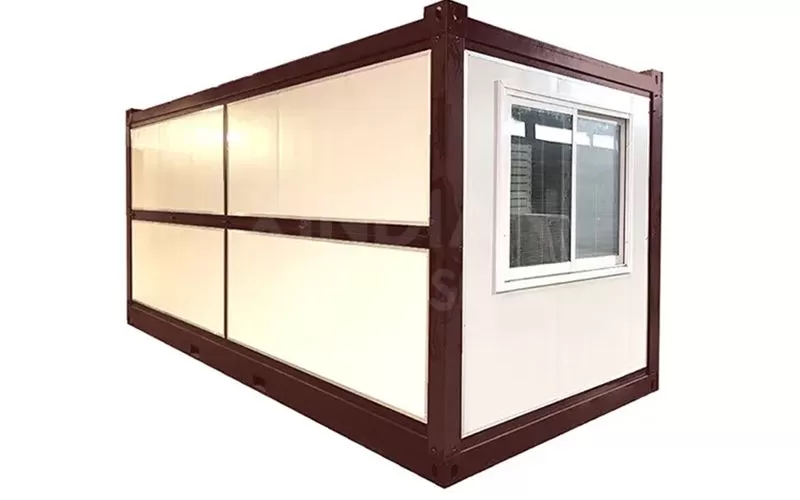

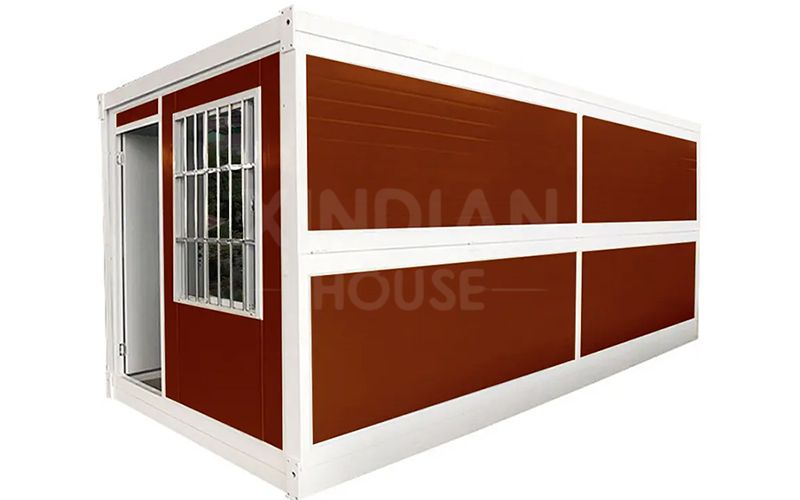

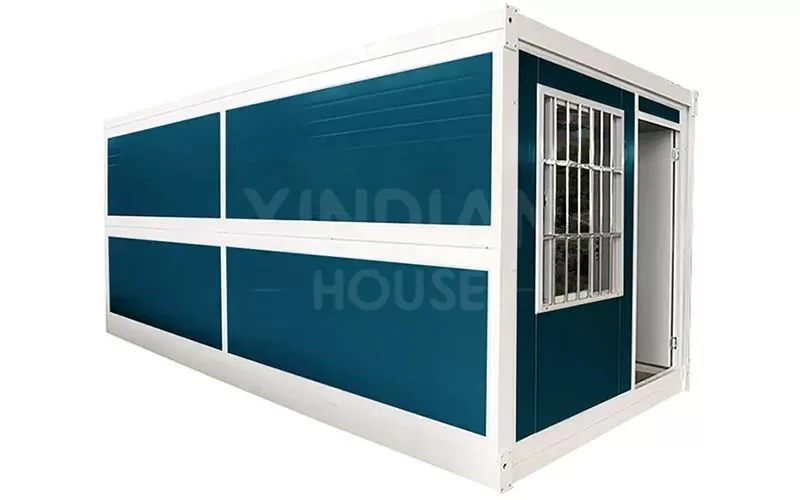

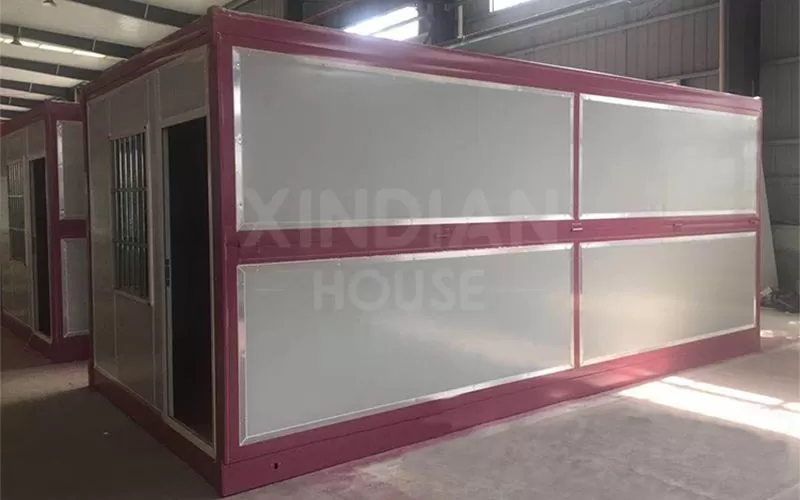

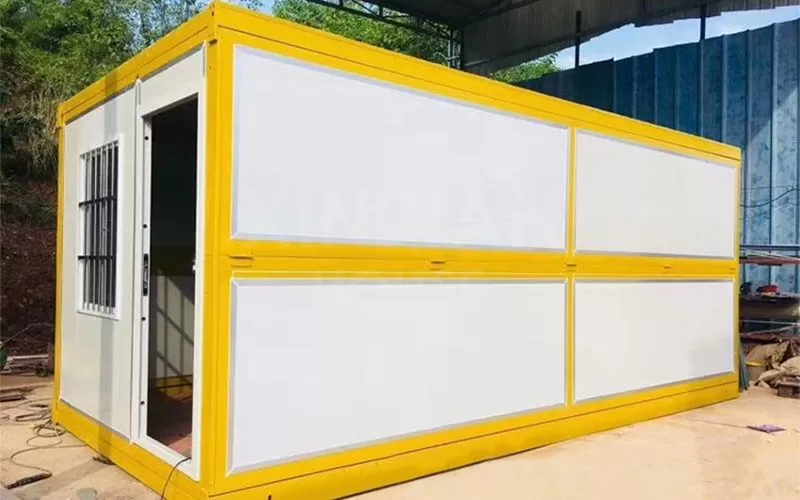

Folding Container Fast Build Container House

Product Parameters：

Basic characteristic	External Dimensions(mm)	580024602510
	Internal Dimension(mm)	564023202380
	Folded	58002460365
	Total mass (kg)	1100
Frame	Top structure	Q235 rectangular square pipe 40402.32m
		Q235 rectangular square pipe 20401.1m
		Q235 rectangular square pipe 20*20
		Q235 rectangular square pipe 70705.8m
		Galvanized square pipe 30*30
		Angle steel 5.64m
		Color steel corrugated sheet 11.6m*1.24m
		Glass wool
		Ceiling board 1.15m
	5.8 meter surface	L-type steel plate 40805.8m
		P-tube
		Hinge 1080mm*2.845m
		Wall panel 1080mm
		Galvanized steel buckle channel 1080mm
		Galvanized steel buckle groove 5.8m
		D-type rubber strip 2.43m
	2.46meter surface	P-tube
		Galvanized Buckle Channel
		Galvanized Wall Panel
		Galvanized corner
		Window
		High quality security door
		Adhesive strips
	Bottom structure	Custom galvanized square tube 60802.32m
		Hinge 40402.32m
		Q235B rectangular square tube 1125*2315
		Q235B rectangular square tube 20405.84m
		Floor 1165*2833
Roof of a box	Overall frame coating	Electrostatic spraying/straight white plastic powder
	Exterior ceiling	Color steel corrugated sheet 0.5mm*7 pieces (top center is arched)
	Interior ceiling	Color steel veneer V831/0.3mm
wallboard	5.8 meter surface	50mm composite panel 0.2mm+rock wool(capacity 50kg)
wallboard	2.5 meter surface	65mm composite panel 0.2mm+rock wool (capacity 50kg)
floors	Cement fiber flooring 15mm
Electrical system	Electrical wiring, installed in strict accordance with the moisture-proof norms, all electrical products comply with CE certification. Connect the circuit according to the circuit engineering specification, indoor: incoming 2.5² national standard soft copper wire, 1 20A circuit breaker, 1 three-hole air conditioning socket, 1 socket incoming 2.5², 1 five-hole single-open socket, 1 five-hole socket, 1 LED light.
Anti-theft door	High quality security door (warm white) size:860mm*1980mm
Windows	925*930 single-glass sliding window plastic steel window, glass thickness 4mm (warm white)
Quality Assurance	One year warranty (China)
Roof Weighing	1.0KN/m²
Walkway weighing	4.2KN/m²
Wall Side Pressure	0.5KN/m²
Fire Rating	Grade A
Seismic Rating	Grade 10
Wind Resistance	Grade 8
Service life	Grade 10
Note	Because the top is a corrugated waterproof structure, it is prohibited to place heavy objects on the top partially, prohibit secondary construction, and make sure that the personnel walk on the beams.

why choose us：

1、Select materials

Selection of high-quality steel, processing and production, tight and stable structure, strong bearing force, flexible assembly, convenient transportation;

2、Fireproof rockwool panel facade

Strong stability, reusable, good heat insulation effect, easy to clean, fire and shock

3、Special frame door

Anti-theft doors and Windows, flexible components, security protection, built-in screen, anti-mosquito and insect, the window can be adjusted according to the request

4、Ripening process

Focus on integrated housing production research and development experience, large-scale mechanized production.Skilled technology, batch supply.

5、External construction

For large projects, we will send workers to assist you with installation.

Folding Container Fast Build Container House

FAQ

1. Do you provide on-site installation service?

We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.

2.What's your delivery time?

Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.

5. If there is a clear service life of your products?

If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

7. How can I get the quotation for the project?

If you have drawings, we can offer you our quotation according to your drawing.

If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

8. Are you a factory or trading company?

We are a factory, and also a trading company. We can provide a one-stop service for our customers.

Folding Container Fast Build Container House
