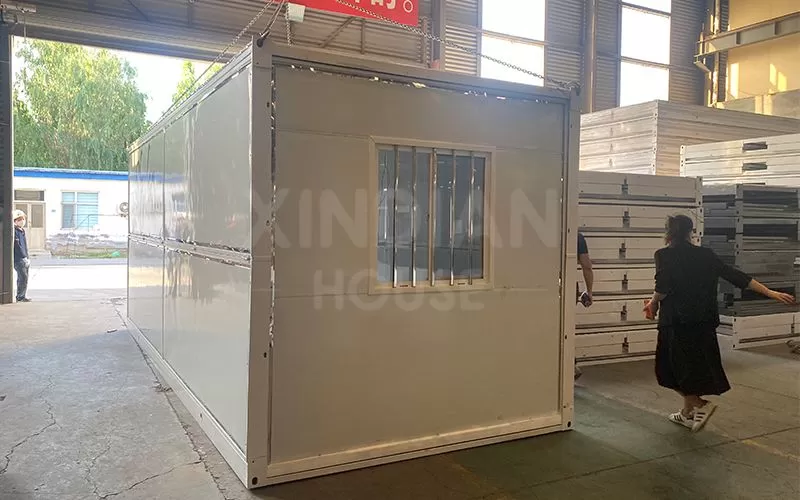

High Quality Foldable Office Modular Low Cost Housing Folding Prefabricated Homes

Share:

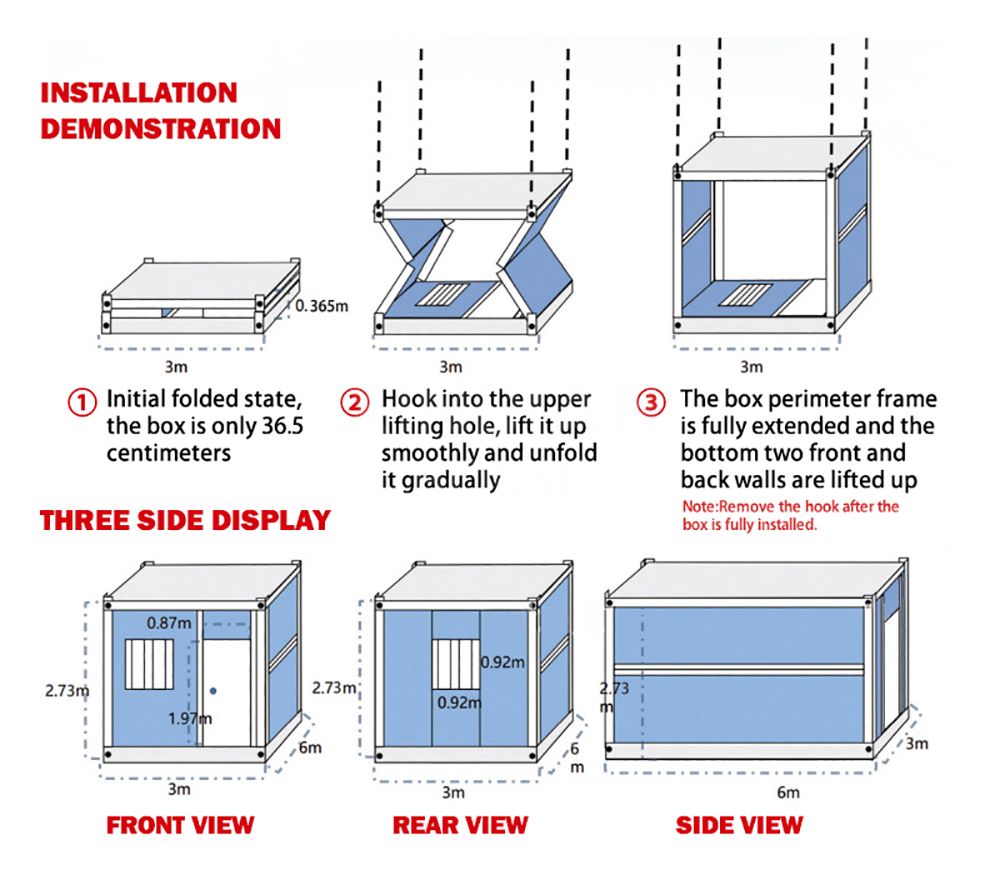

Customized high-end folding container house.On site installation: Easy to disassemble, 2-3 people can operate, installation only takes 3-5 minutes.

Products Description

 High Quality Foldable Office Modular Low Cost Housing Folding Prefabricated Homes

Product Parameters:

Basic characteristicExternal Dimensions(mm)5800*2460*2510
Internal Dimension(mm)5640*2320*2380
Folded5800*2460*365
Total mass (kg)1100
FrameTop structureQ235 rectangular square pipe 40*40*2.32m
Q235 rectangular square pipe 20*40*1.1m
Q235 rectangular square pipe 20*20
Q235 rectangular square pipe 70*70*5.8m
Galvanized square pipe 30*30
Angle steel 5.64m
Color steel corrugated sheet 11.6m*1.24m
Glass wool
Ceiling board 1.15m
5.8 meter surfaceL-type steel plate 40*80*5.8m
P-tube
Hinge 1080mm*2.845m
Wall panel 1080mm
Galvanized steel buckle channel 1080mm
Galvanized steel buckle groove 5.8m
D-type rubber strip 2.43m
2.46meter surfaceP-tube
Galvanized Buckle Channel
Galvanized Wall Panel
Galvanized corner
Window
High quality security door
Adhesive strips
Bottom structureCustom galvanized square tube 60*80*2.32m
Hinge 40*40*2.32m
Q235B rectangular square tube 1125*2315
Q235B rectangular square tube 20*40*5.84m
Floor 1165*2833
Roof of a boxOverall frame coatingElectrostatic spraying/straight white plastic powder
Exterior ceilingColor steel corrugated sheet 0.5mm*7 pieces (top center is arched)
Interior ceilingColor steel veneer V831/0.3mm
wallboard5.8 meter surface50mm composite panel 0.2mm+rock wool(capacity 50kg)
2.5 meter surface65mm composite panel 0.2mm+rock wool (capacity 50kg)
floorsCement fiber flooring 15mm
Electrical systemElectrical wiring, installed in strict accordance with the moisture-proof norms, all electrical products comply with CE certification. Connect the circuit according to the circuit engineering specification, indoor: incoming 2.5² national standard soft copper wire, 1 20A circuit breaker, 1 three-hole air conditioning socket, 1 socket incoming 2.5², 1 five-hole single-open socket, 1 five-hole socket, 1 LED light.
Anti-theft doorHigh quality security door (warm white) size:860mm*1980mm
Windows925*930 single-glass sliding window plastic steel window, glass thickness 4mm (warm white)
Quality AssuranceOne year warranty (China)
Roof Weighing1.0KN/m²
Walkway weighing4.2KN/m²
Wall Side Pressure0.5KN/m²
Fire RatingGrade A
Seismic RatingGrade 10
Wind ResistanceGrade 8
Service lifeGrade 10
NoteBecause the top is a corrugated waterproof structure, it is prohibited to place heavy objects on the top partially, prohibit secondary construction, and make sure that the personnel walk on the beams.

why choose us

1、Select materials

Selection of high-quality steel, processing and production, tight and stable structure, strong bearing force, flexible assembly, convenient transportation;

2、Fireproof rockwool panel facade

Strong stability, reusable, good heat insulation effect, easy to clean, fire and shock

3、Special frame door

Anti-theft doors and Windows, flexible components, security protection, built-in screen, anti-mosquito and insect, the window can be adjusted according to the request

4、Ripening process

Focus on integrated housing production research and development experience, large-scale mechanized production.Skilled technology, batch supply.

5、External construction

For large projects, we will send workers to assist you with installation.

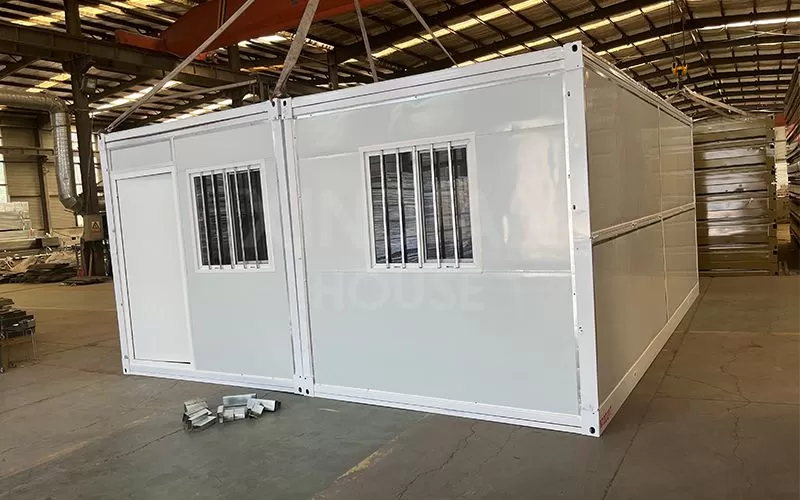

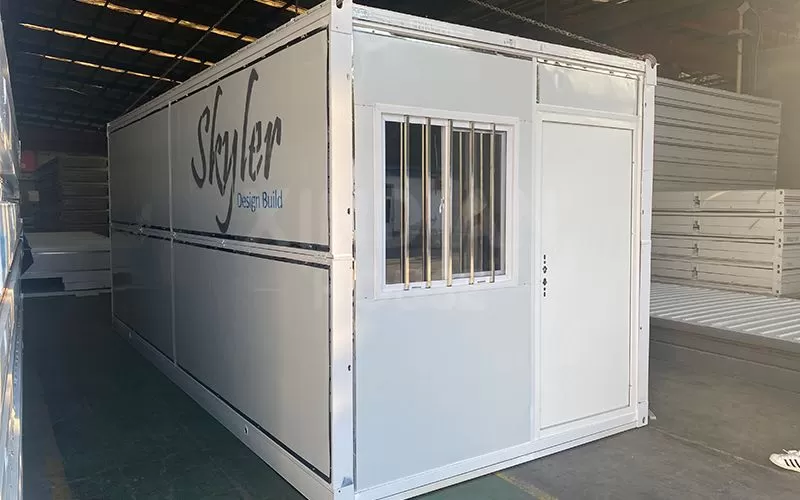

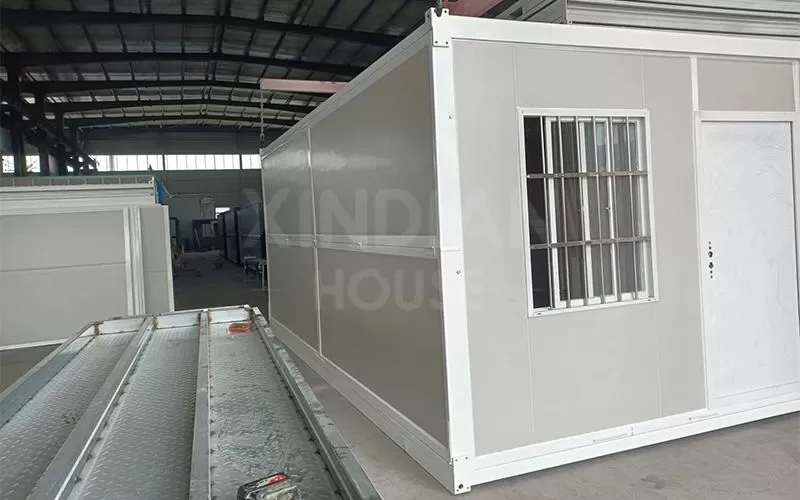

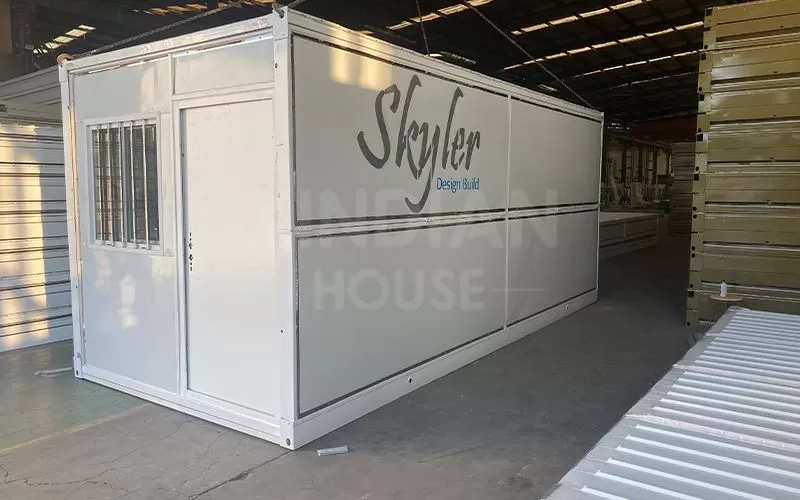

Folding Container Fast Build Container House


Folding Container Fast Build Container House

Folding Container Fast Build Container House

Folding Container Fast Build Container House

FAQ

1. Do you provide on-site installation service?

We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.

2.What's your delivery time?

Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.

5. If there is a clear service life of your products?

If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

7. How can I get the quotation for the project?

If you have drawings, we can offer you our quotation according to your drawing.

If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

8. Are you a factory or trading company?

We are a factory, and also a trading company. We can provide a one-stop service for our customers.

Folding Container Fast Build Container House

How Can We Help You?

Determine the type of prefabricated house, design the structural drawings, and determine the layout and dimensions according to the application scenario of the project and the dimensions of the client's land.
