New design easy to install Z-shape folding container house foldable container house mobile house

Share:

The Z-type folding packing container house is durable and can withstand a variety of harsh environmental conditions to provide a lasting living experience.

Products Description

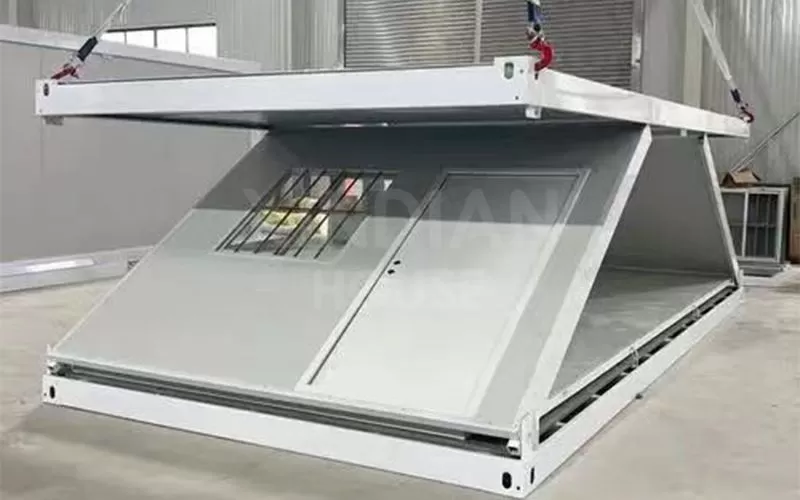

z type flat pack folding container house foldable prefabricated modular tiny chinese style

Product Parameters:

Outer Dimension (L*W*H)5800*2500*2500mm
Folded Size5800*2500*570mm
Organizing frameworkTop Frame170mm, top side beam 2.3mm-2pcs, top cross beam-2pcs, purlin 40*60*10mm several compression steel-7pcs, 20*20 square tube-2pcs, 1 set of explosion-proof wire box.
Top ChuteC50*50*20 lifting rail*2pcs+four wheels*4pcs
Bottom Frame160mm, bottom side beam 2.3mm-2pcs, bottom cross beam-2pcs, purlin
50*100mm square tube-9pcs
Bottom SwivelU-shape rotary pivot and crescent arc rotary hinge
Column Systems2050*150*210*2.5mm
Column ConnectorsHinged connectors*4 sets
Top/bottom box corners
L-angle
Color steel ceilingColor steel veneer 360°bite 0.4mm
831 ceiling panelsYX28-277-831, 0.3mm
Top insulation75 Thick Single Foil Glass Wool 14kg /m³+PE Film
DrainagePVC ¢50*2.0
Floors18mm glass magnesium plate
1.6mm PVC plastic flooring
WallboardV-950 double-sided 0.30mm-50mm rock wool,
capacity 50KG/m³, H mouth, one side orange peel pattern and one side flat white, double-sided PE film.
Doors and windowsSteel door 970*1970mm
Plastic steel sliding window 930*1120mm-2pcs, with screen, without anti-theft fence (U-PVC)
DeviceLampsLED Decorative Lamp 36W*2
Socket10A five-hole socket 3 three-hole socket 16A 1pc
SwitchesSingle key switch 1pc Concealed distribution box 1pc
Wires2*1.5 square meters* lighting, 3*2.5 square meters
socket, 3*4 square meters* air-conditioning socket, 3*6 square meters into the line
Industrial Sockets220V 50Hz 3P32A
OrnamentalColumn corner wrapping2100mm color steel compression molding
Box BottomU-type flashing channel
Replacement (parts)Wall panel grommets1.5mm U-type edge groove + L-type ceiling clamps
FittingsMatching screws
ConnectionsHigh Strength Bolt Connection
Thermal insulation£=0.043W/米m.K
Wind resistance0.50KN/㎡
Acoustic performanceSound insulation ≥30dB
Fire resistanceGrade A
WaterproofingClass II
Seismic performanceGrade 8

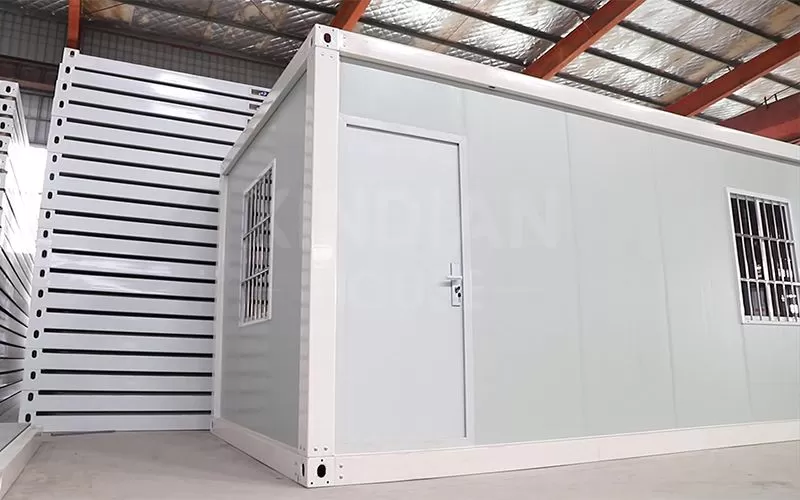

z type flat pack folding container house foldable prefabricated modular tiny chinese style

With the fast-paced and changeable nature of modern life, people's needs for living space are constantly changing. In order to meet this demand, a new type of living - collapsible Z-packing container house has emerged. Compared with the traditional folding container house:


1, the appearance of aesthetics: Z folding packing container house wall in the middle of no creases, more beautiful

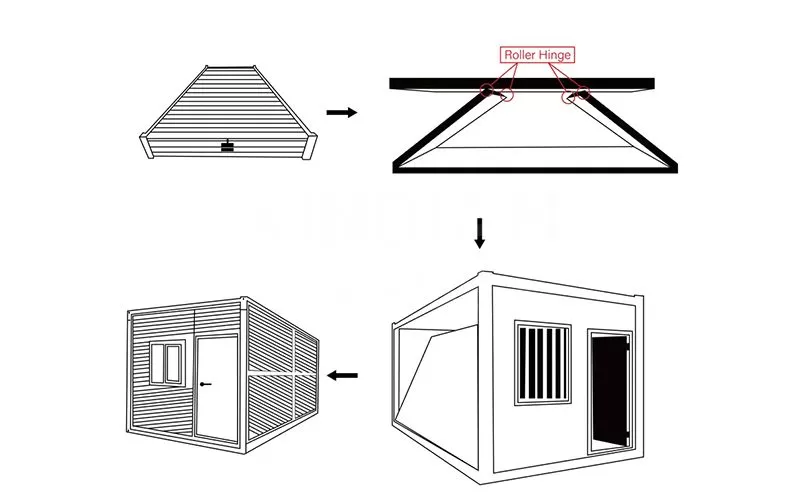

2, structure and folding method: Z structure is designed as a whole connection, with column system, the overall folding also makes the house more stable, can withstand greater pressure and load, provide a more secure living environment. Ordinary folding box without column system relies on the frame and wallboard support, stability is a little worse

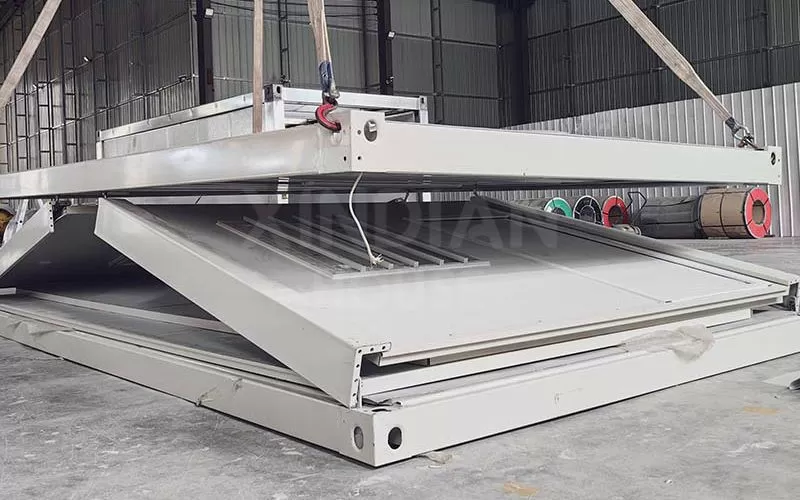

z type flat pack folding container house foldable prefabricated modular tiny chinese style

3、Materials: Z type folding packing container house material is strong and durable, able to withstand a variety of harsh environmental conditions, to provide a long-lasting living experience.


4, thermal insulation and sealing: Z folding packing container house whole wall plate, thermal insulation and sealing effect is better.


5, the layout of the expansion mode: Z folding packing container house can be derived from a number of combinations of space, layout freedom, to meet the height of the three-storey building; traditional folding box can only build 2 layers of space, can only be designed for a single box, can not do the joint room

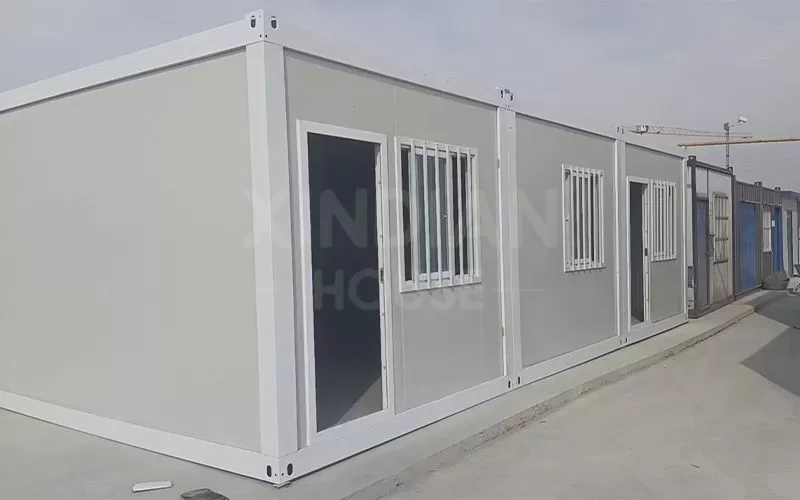

6、Applicable scenes: Z-folding packing container house is suitable for various scenes, such as construction projects, outdoor camping, offices, dormitories, etc.; traditional folding box can be applied to temporary housing, offices, stores, etc.


In a word, foldable Z-folding packing container house is a new type of residence with unique structural design, excellent performance and wide range of application scenarios. In the future, with the increasing demand for living environment, this kind of container house will be more widely used and developed.

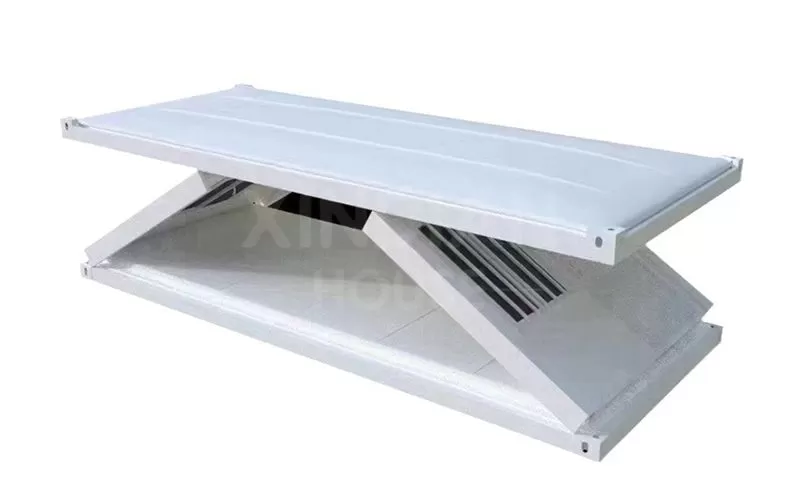

cheap folding packing container house for living


cheap folding packing container house for living

cheap folding packing container house for living

FAQ

1. Do you provide on-site installation service?

We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.

2.What's your delivery time?

Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide a high-quality design solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.

5. If there is a clear service life of your products?

If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.

6. What designs do you have in different climates (How can the products adopt to different climates)?

Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.

7. How can I get the quotation for the project?

If you have drawings, we can offer you our quotation according to your drawing.

If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

8. Are you a factory or trading company?

We are a factory, and also a trading company. We can provide a one-stop service for our customers.

cheap folding packing container house for living

How Can We Help You?

Determine the type of prefabricated house, design the structural drawings, and determine the layout and dimensions according to the application scenario of the project and the dimensions of the client's land.
