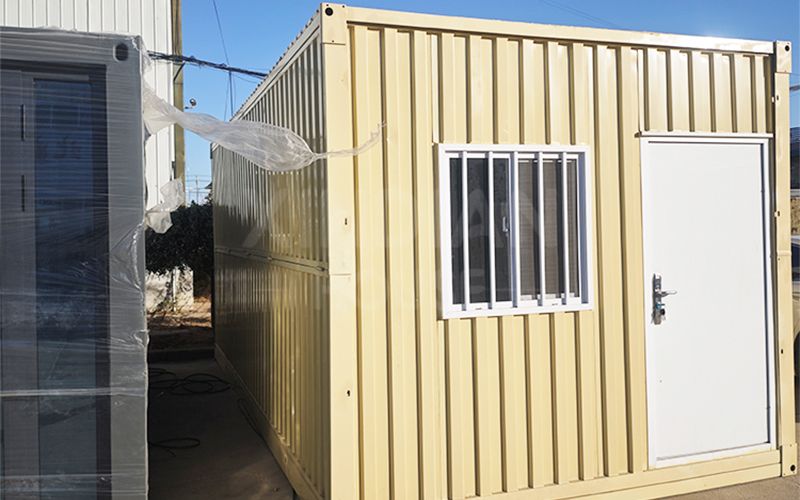

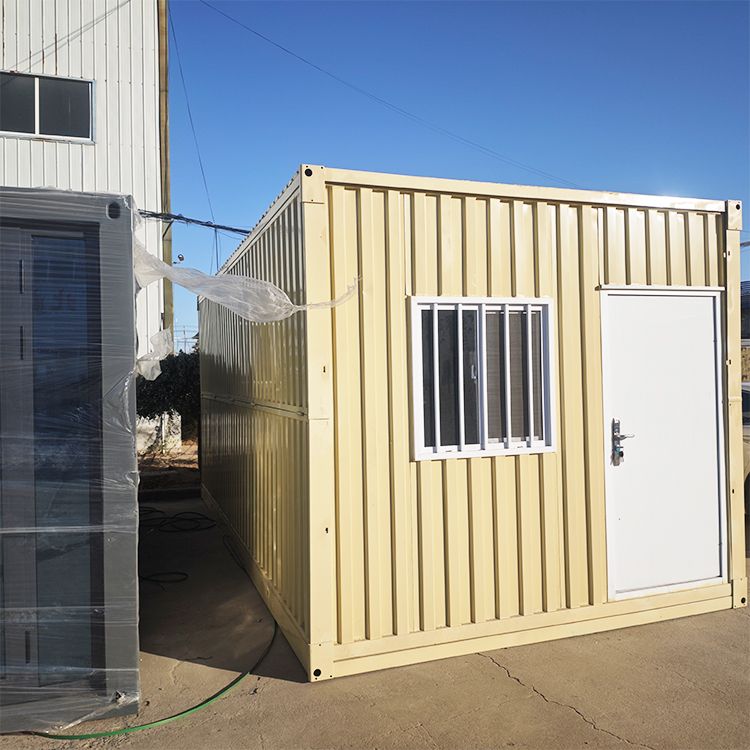

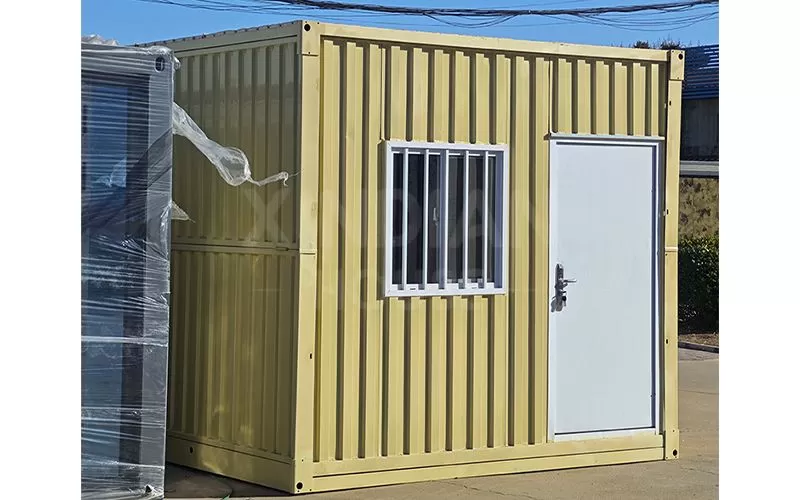

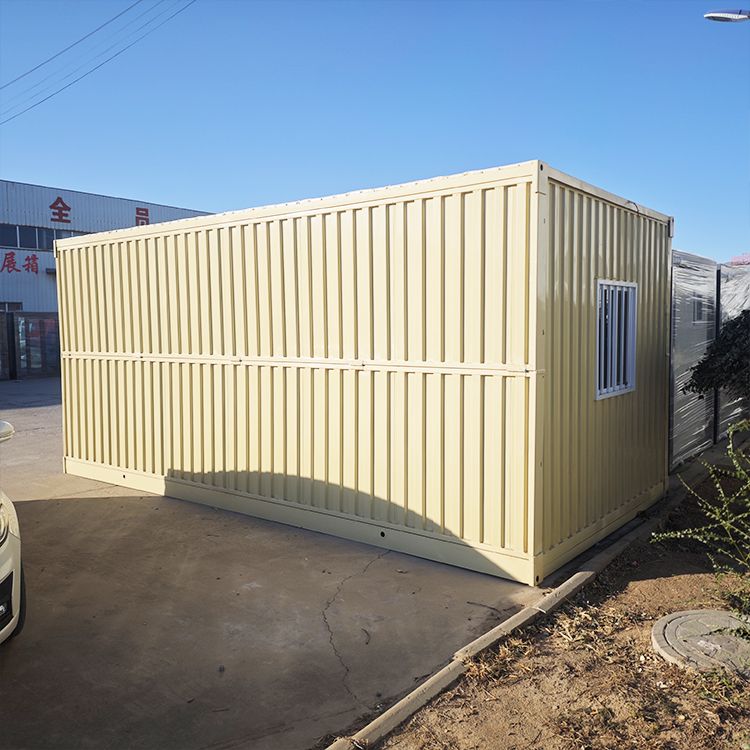

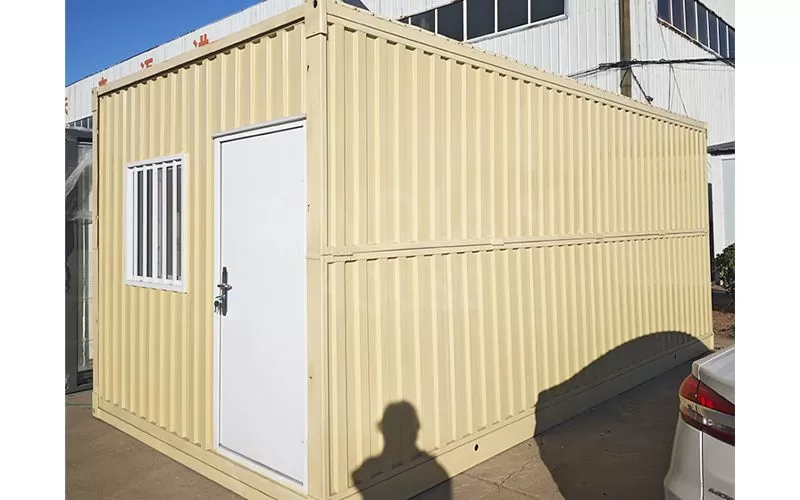

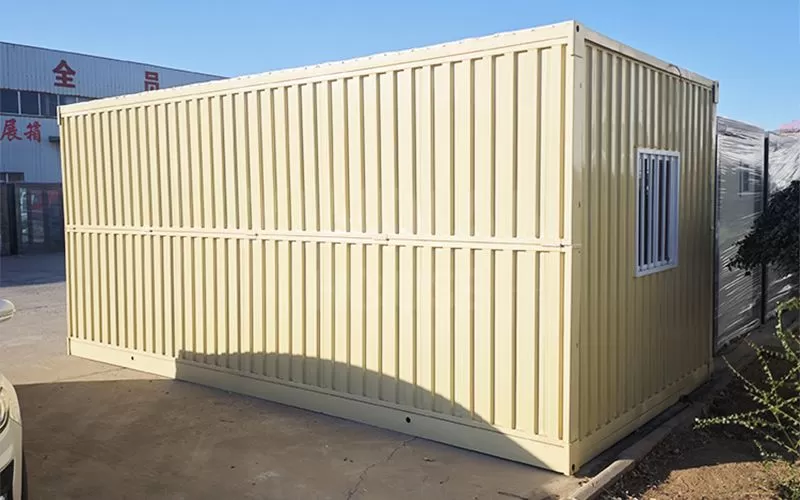

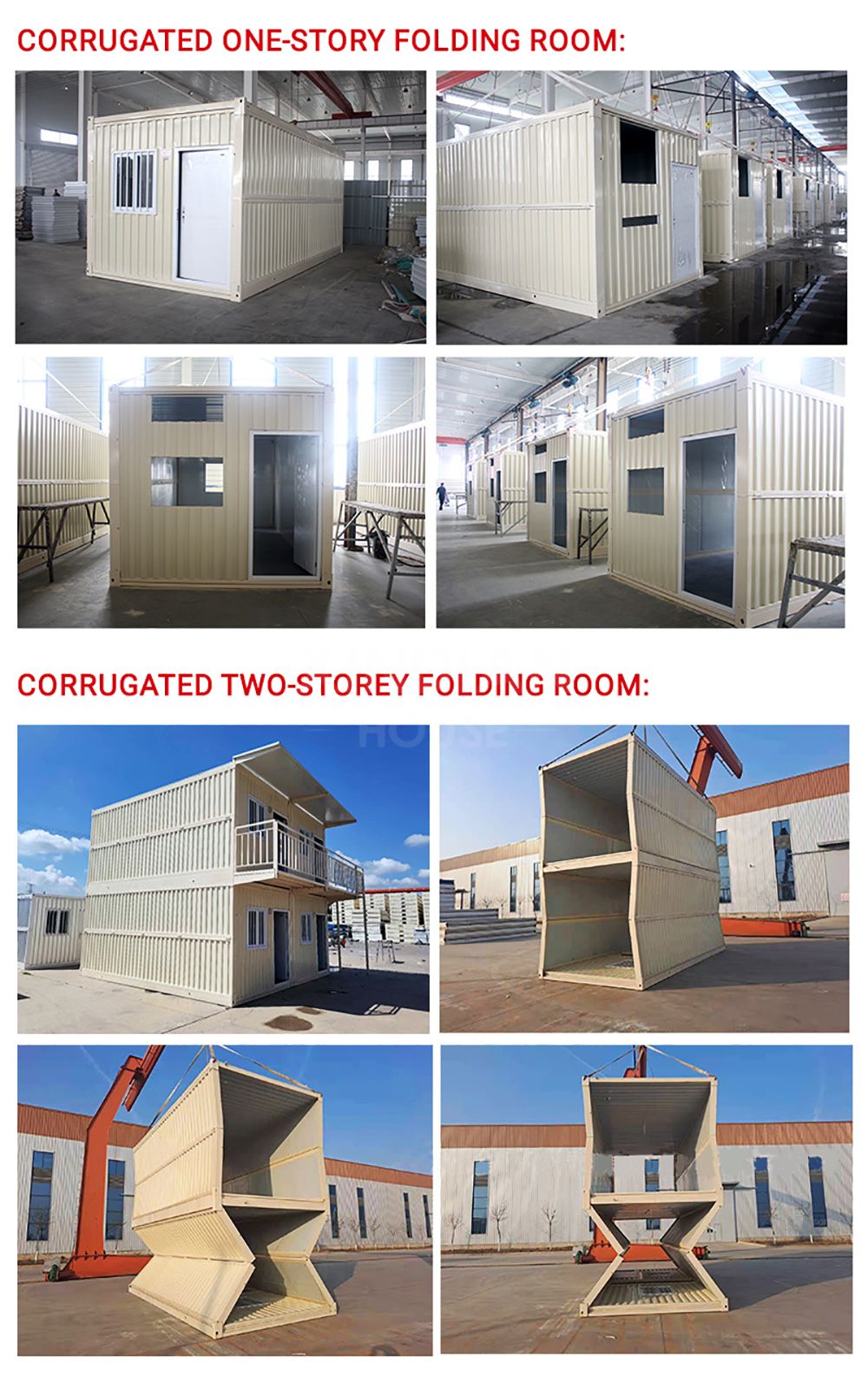

Folding container house do not need to do concrete foundation ,5 minutes to complete installation, no noise pollution, no air pollution, no harmful chemical pollution, folding container house is a very energy-saving house.
Products Description
Product Parameters：
| Basic characteristic | External Dimensions(mm) | 5800*2460*2510 |
| Internal Dimension(mm) | 5640*2320*2380 | |
| Folded | 5800*2460*365 | |
| Total mass (kg) | 1100 | |
| Frame | Top structure | Q235 rectangular square pipe 40*40*2.32m |
| Q235 rectangular square pipe 20*40*1.1m | ||
| Q235 rectangular square pipe 20*20 | ||
| Q235 rectangular square pipe 70*70*5.8m | ||
| Galvanized square pipe 30*30 | ||
| Angle steel 5.64m | ||
| Color steel corrugated sheet 11.6m*1.24m | ||
| Glass wool | ||
| Ceiling board 1.15m | ||
| 5.8 meter surface | L-type steel plate 40*80*5.8m | |
| P-tube | ||
| Hinge 1080mm*2.845m | ||
| Wall panel 1080mm | ||
| Galvanized steel buckle channel 1080mm | ||
| Galvanized steel buckle groove 5.8m | ||
| D-type rubber strip 2.43m | ||
| 2.46meter surface | P-tube | |
| Galvanized Buckle Channel | ||
| Galvanized Wall Panel | ||
| Galvanized corner | ||
| Window | ||
| High quality security door | ||
| Adhesive strips | ||
| Bottom structure | Custom galvanized square tube 60*80*2.32m | |
| Hinge 40*40*2.32m | ||
| Q235B rectangular square tube 1125*2315 | ||
| Q235B rectangular square tube 20*40*5.84m | ||
| Floor 1165*2833 | ||
| Roof of a box | Overall frame coating | Electrostatic spraying/straight white plastic powder |
| Exterior ceiling | Color steel corrugated sheet 0.5mm*7 pieces (top center is arched) | |
| Interior ceiling | Color steel veneer V831/0.3mm | |
| wallboard | 5.8 meter surface | 50mm composite panel 0.2mm+rock wool(capacity 50kg) |
| 2.5 meter surface | 65mm composite panel 0.2mm+rock wool (capacity 50kg) | |
| floors | Cement fiber flooring 15mm | |
| Electrical system | Electrical wiring, installed in strict accordance with the moisture-proof norms, all electrical products comply with CE certification. Connect the circuit according to the circuit engineering specification, indoor: incoming 2.5² national standard soft copper wire, 1 20A circuit breaker, 1 three-hole air conditioning socket, 1 socket incoming 2.5², 1 five-hole single-open socket, 1 five-hole socket, 1 LED light. | |
| Anti-theft door | High quality security door (warm white) size:860mm*1980mm | |
| Windows | 925*930 single-glass sliding window plastic steel window, glass thickness 4mm (warm white) | |
| Quality Assurance | One year warranty (China) | |
| Roof Weighing | 1.0KN/m² | |
| Walkway weighing | 4.2KN/m² | |
| Wall Side Pressure | 0.5KN/m² | |
| Fire Rating | Grade A | |
| Seismic Rating | Grade 10 | |
| Wind Resistance | Grade 8 | |
| Service life | Grade 10 | |
| Note | Because the top is a corrugated waterproof structure, it is prohibited to place heavy objects on the top partially, prohibit secondary construction, and make sure that the personnel walk on the beams. | |

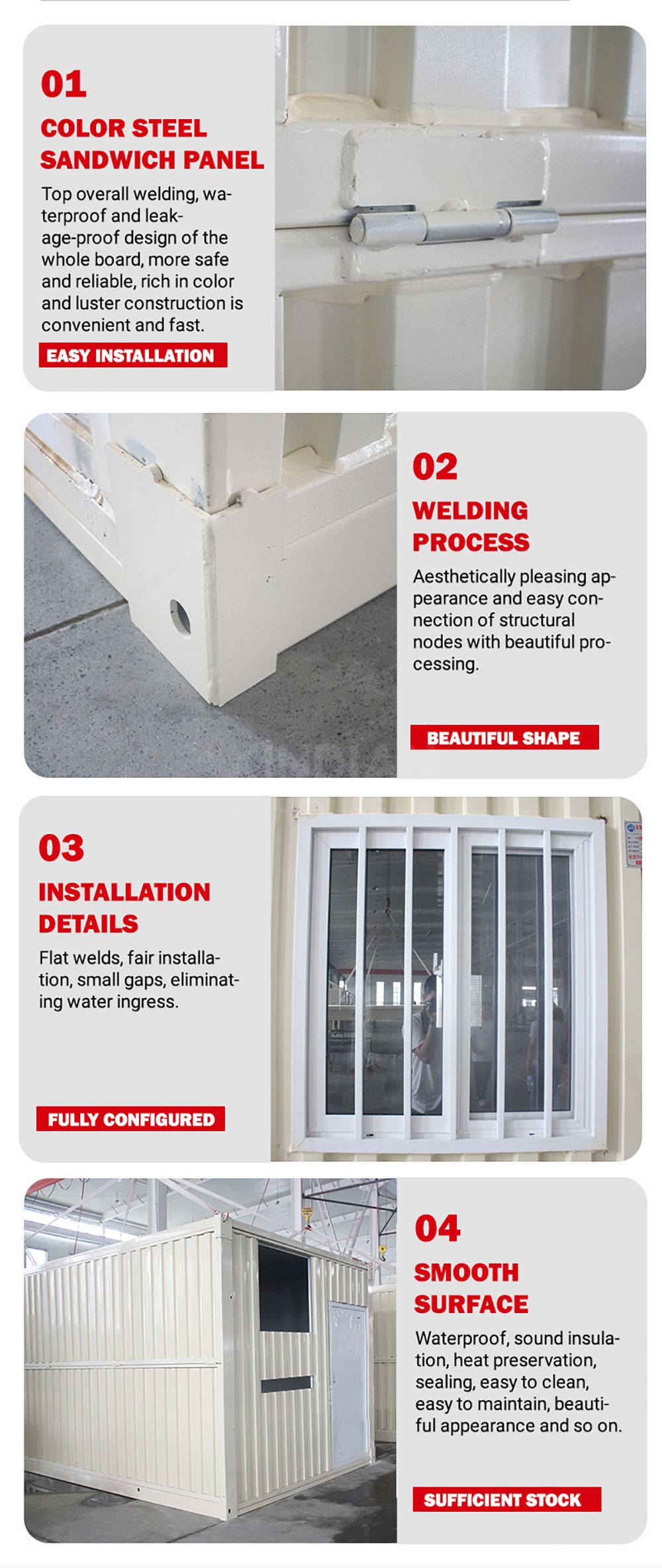

why choose us：
1、Select materials
Selection of high-quality steel, processing and production, tight and stable structure, strong bearing force, flexible assembly, convenient transportation;
2、Fireproof rockwool panel facade
Strong stability, reusable, good heat insulation effect, easy to clean, fire and shock
3、Special frame door
Anti-theft doors and Windows, flexible components, security protection, built-in screen, anti-mosquito and insect, the window can be adjusted according to the request
4、Ripening process
Focus on integrated housing production research and development experience, large-scale mechanized production.Skilled technology, batch supply.
5、External construction
For large projects, we will send workers to assist you with installation.
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.

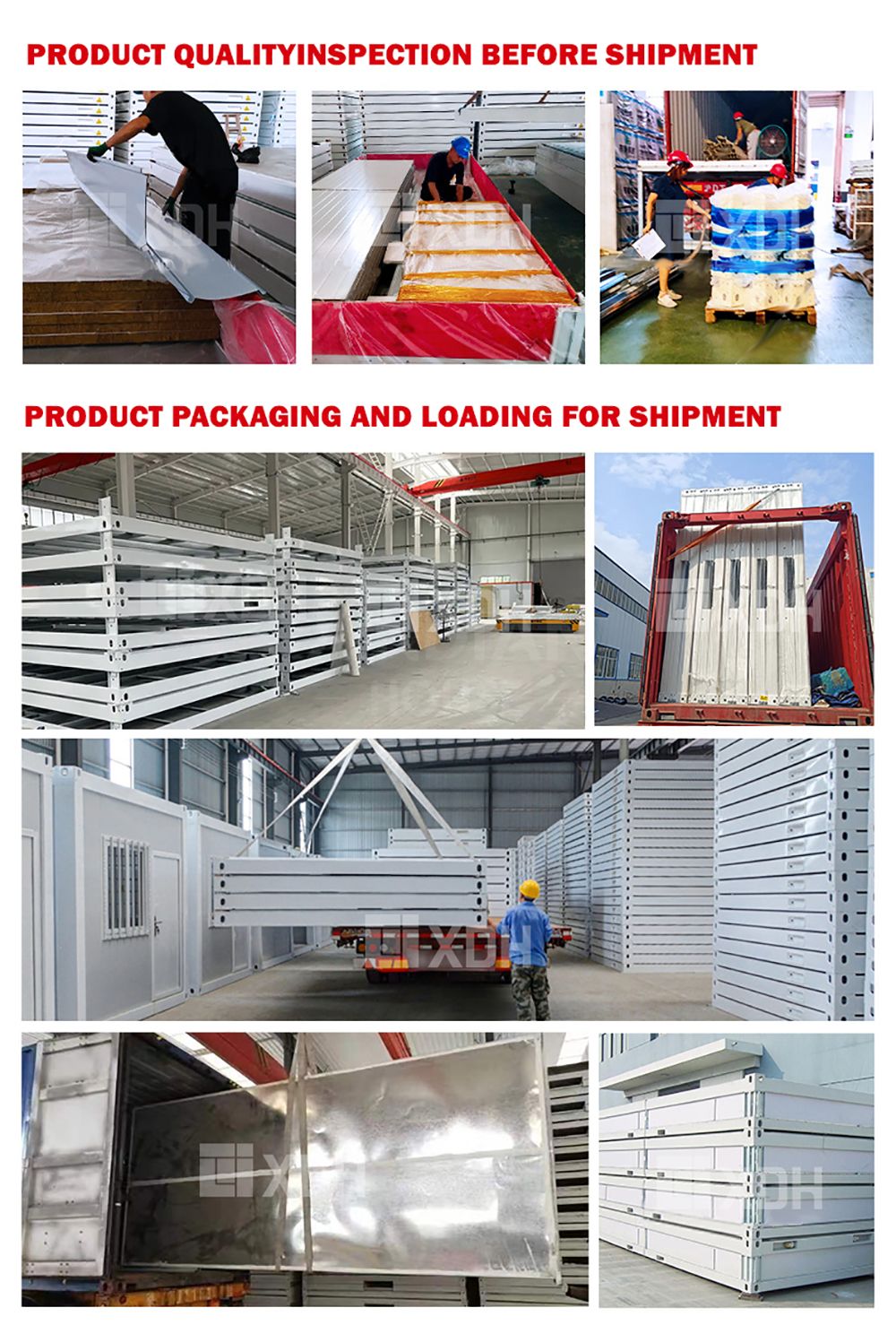

3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.

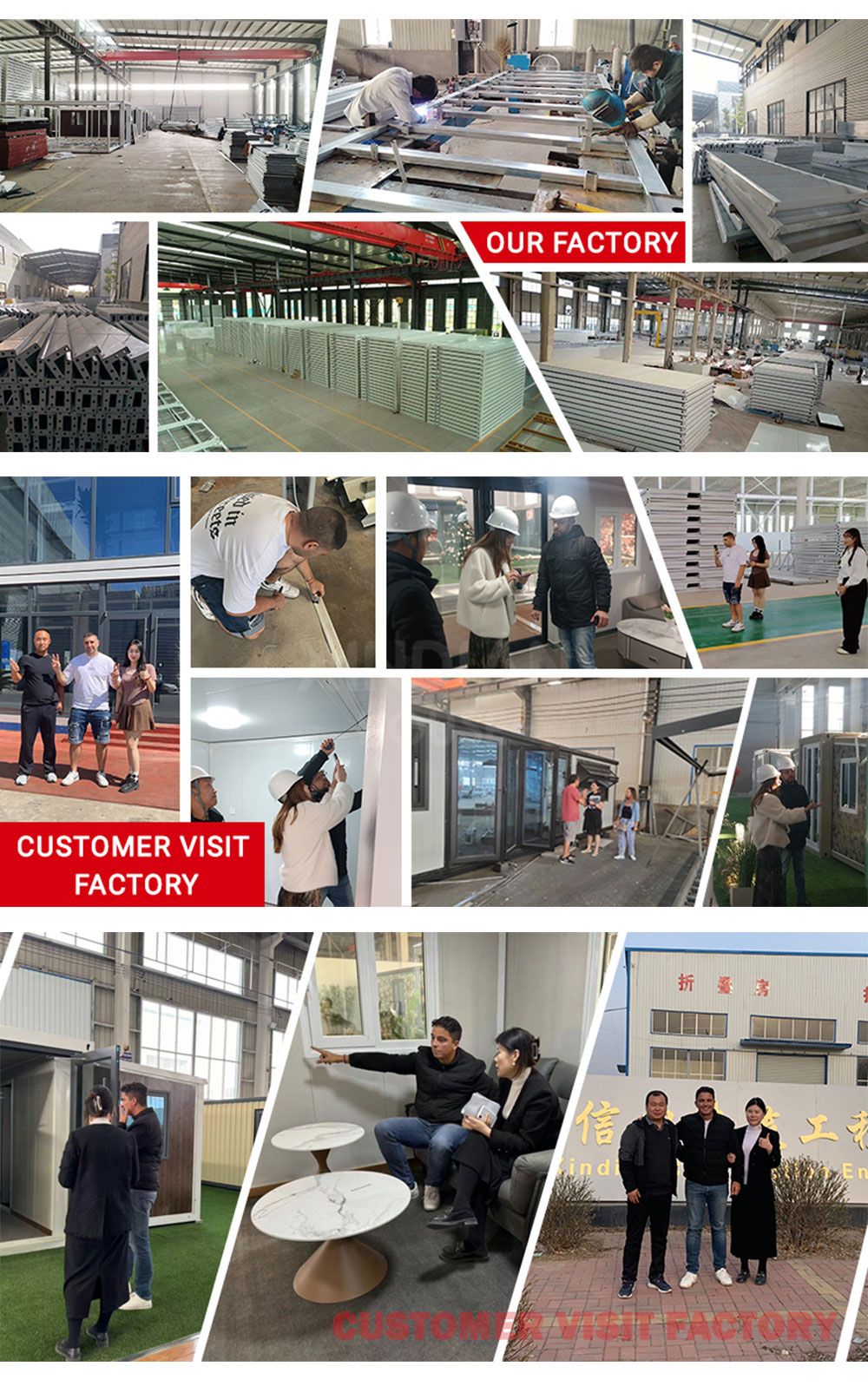

8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
