Detachable Container House design introduces modern home elements, according to the different environment in which the house is located, according to the demand, free assembly and disassembly.
Products Description
Product Parameters:
Standard packing container house arrangement list | |||||||
Basic Features | External dimensions (L*W*H) | 5800*2480*2896mm | Inner size (L*W*H) | 5630*2310*2540mm | |||
weight | 1200KG | container loading quantity | A 40-foot cabinet can hold six sets | ||||
heat-shielding performance | £=0.043W/ m m.K | wind-resistant performance | 0.50KN/㎡ | ||||
Sound insulation property | Volume isolation ≥30dB | fireproof performance | grade A | ||||
waterproofness | GradeⅡ | anti-seismic property | grade 8 | ||||
Ground live load | 2.0KN/㎡ | roof live load | 0.50KN/㎡ | ||||
structure surface | Electrostatic spray white | connection type | High strength bolted connection | ||||
frame | Top frame Bottom frame | 2178mm long, 170mm*2.3mm, galvanized 80g/㎡;5378mm long, 170mm*2.3mm, galvanized 80g/㎡;40*60*10*1.3mm thick pressed steel; | |||||
Steel column | 2536mm*435mm*2.3mm. Galvanized 80g/㎡ | ||||||
Surface anti-corrosion treatment | electrostatic spraying | Painting process | |||||
Roof | roofing tile | 0.4mm color steel plate, 360 degree bite | |||||
thermal insulation material | 75mm thick glass silk wadded | ||||||
damp-proof course | 1.0mmPE resin film | ||||||
Strip ceiling | v831 ceiling plate 0.35mm | ||||||
ground | Floor | Cement modification board | |||||
PVC floor glue | PVC plastic floor 1.6 thick | ||||||
shingle | New rock wool composite board | 75mm thick -950 type, double side 0.3mm outer orange peel grain inner flat unit weight 50kg | |||||
window | Plastic steel window series, white | 930mm *1110mm, hollow glass 5+9A+5 with screen window, guardrail | |||||
door | High quality steel door | 970mm*1970mm (Class A1 fire-resistant steel and wood door) | |||||
Electric System | Electric Box | Hidden assembly electric box | |||||
Industrial plug and socket | 220V,50Hz,3P 32A | ||||||
light | LED dust-proof light, 40W | ||||||
socket | 10A five-hole socket;16A three-hole air conditioning socket | ||||||
lamp switch | Single key switch | ||||||
wiring | Household line: 3*6㎡, air conditioning socket: 3*4㎡, five-hole socket: 3*2.5㎡ Lighting: 3*1.5㎡ indoor maximum load 7040W | ||||||
mountings | Corner piece | Color steel press Angle, 0.5mm thick | |||||
connection fittings | M12 hex socket high strength bolt | ||||||
draining tank | 5635mm, 0.5mm thick;2690mm, 0.5mm thick | ||||||
Wall panel card | Z-card 5635mm, 0.5mm thick;Z-card 2690mm, 0.5mm thick | ||||||
downspout | PVC downspout |

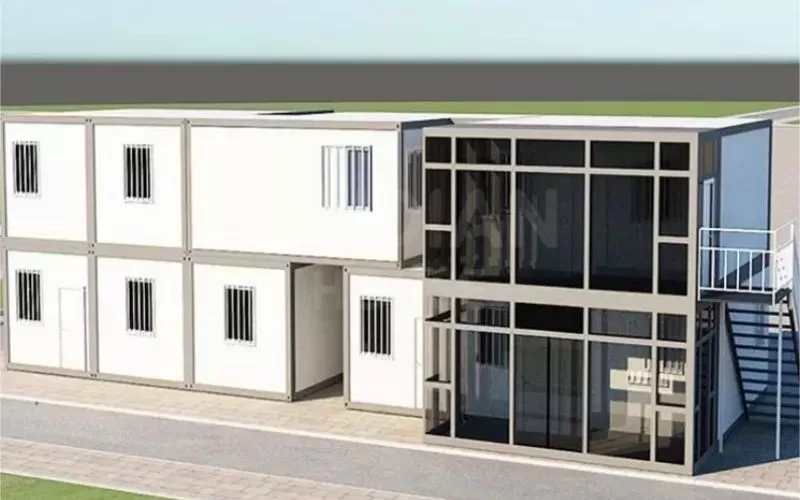

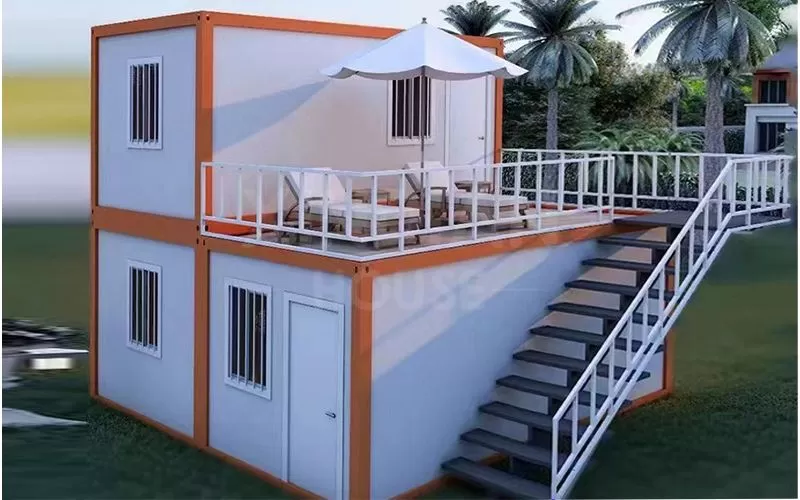

Product appearance can be customized:
Product interior can be customized freely:
Interior decoration wall, ceiling, floor decoration is exquisite, lamps, socket lines, drainage configuration is complete, humanized design can be used
Product Advantage:

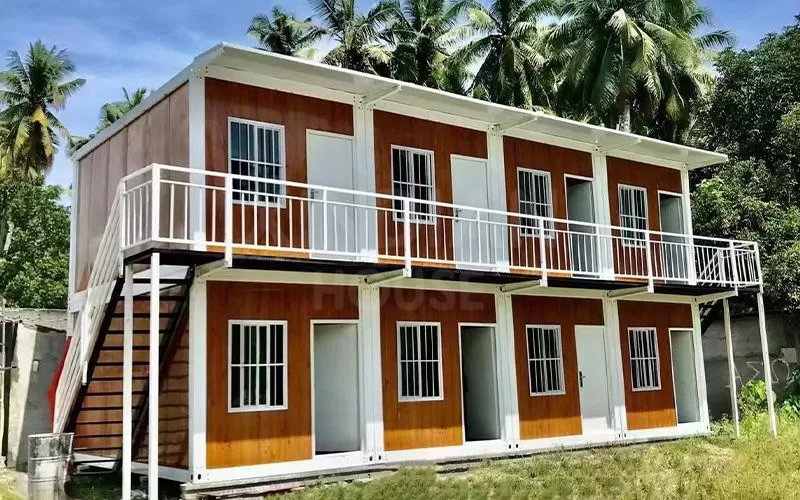

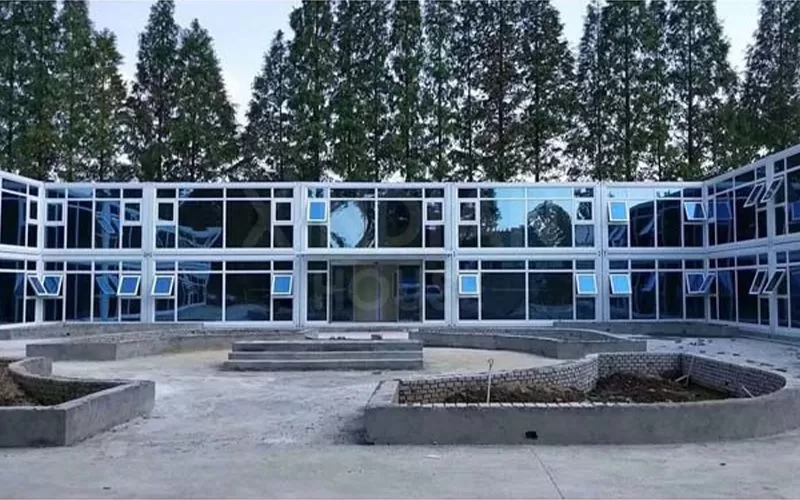

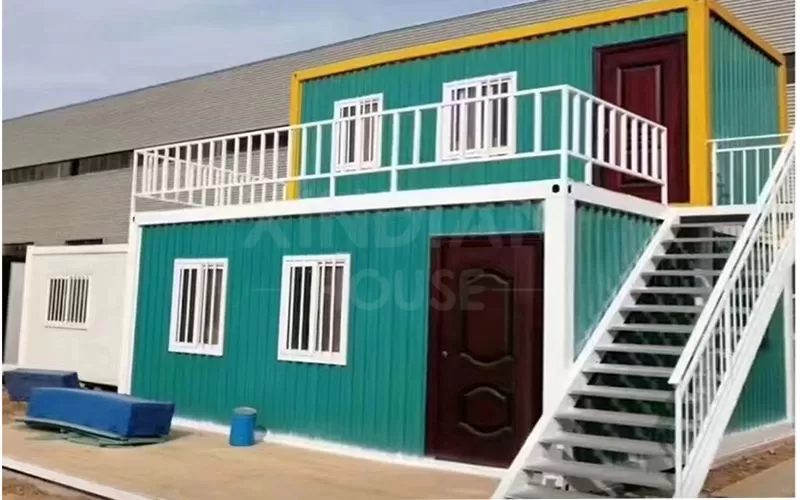

1、The application way:Flat pack container house is generally used in multi-storey (2-3 storey) and high-rise below 15m in height. Like mobile office, site dormitory, medical and health care, leisure and entertainment, education field, residential villas, mobile security post, temporary command, temporary exhibition hall, etc. mostly choose packing box to build, bringing great convenience and considerate service to people's life and office.
2、The structure and its characteristics:Flat pack container house is a welded structure and bolted structure, the frame is a special type of pressed steel plate, the side panels have special sound insulation, heat insulation filler, can play the role of heat insulation, sound insulation, cold and fire prevention, non-combustible, non-moldy, non-moth, durable, structural life of 30 years. Electrostatic spraying and galvanizing technology greatly improves the corrosion resistance of the components, and the service life of flat pack container house can be more than 30 years.

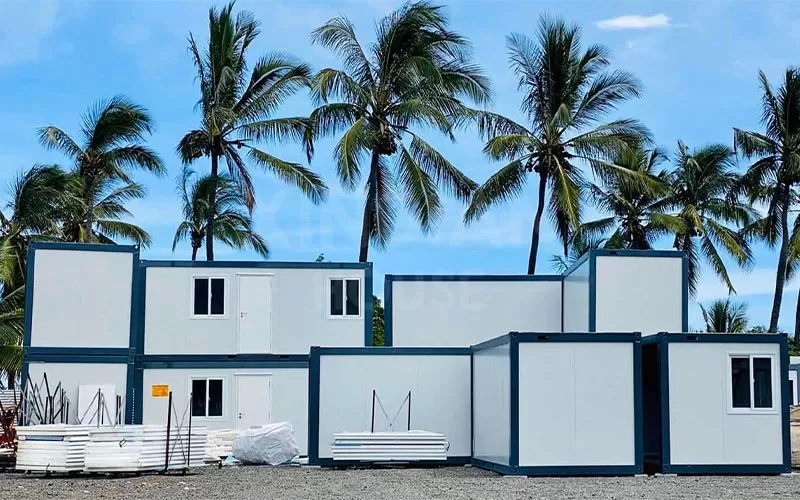

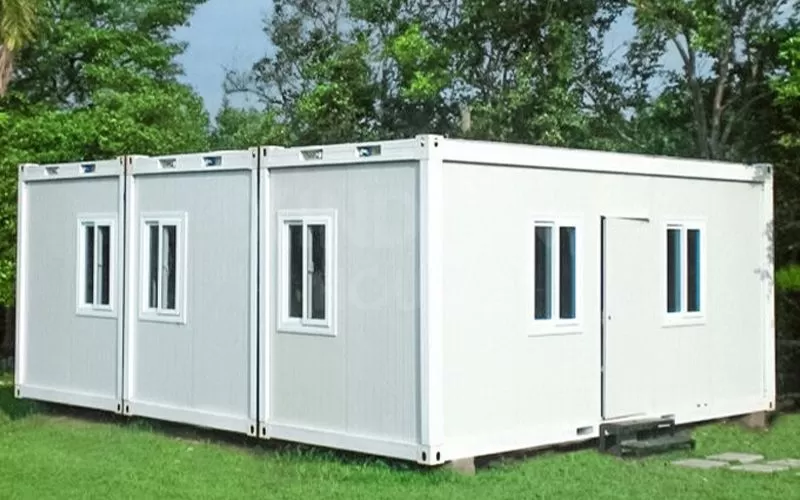

3、The design concept:The flat pack container house is built as a single unit and can be stacked and combined at will. A modular unit can be either a whole room or several rooms, or a part of a large room. flat pack container house can be assembled and combined in any length and width direction, and can be stacked in three layers, and can be decorated with shaped roofs and terraces. flat pack container house uses insulation measures for the top and bottom frames. The design is more reasonable, each room is decorated according to the standard, and all living facilities can be assembled.
4、Transportation:The flat pack container house can be disassembled and made into board type packaging, suitable for sea and land transportation. Domestic transportation with a 17.5m flatbed truck plus a 13m truck can load about 20 sets of packing box full set of materials, every 4 sets is equivalent to 1 standard 20 feet container size, saving 3/4 freight; 1 40 feet high container can be shipped 6 sets.
Why Choose Us:
1、Select materials
Selection of high-quality steel, processing and production, tight and stable structure, strong bearing force, flexible assembly, convenient transportation;
2、Fireproof rockwool panel facade
Strong stability, reusable, good heat insulation effect, easy to clean, fire and shock
3、Special frame door
Anti-theft doors and Windows, flexible components, security protection, built-in screen, anti-mosquito and insect, the window can be adjusted according to the request
4、Ripening process
Focus on integrated housing production research and development experience, large-scale mechanized production.Skilled technology, batch supply.
5、External construction

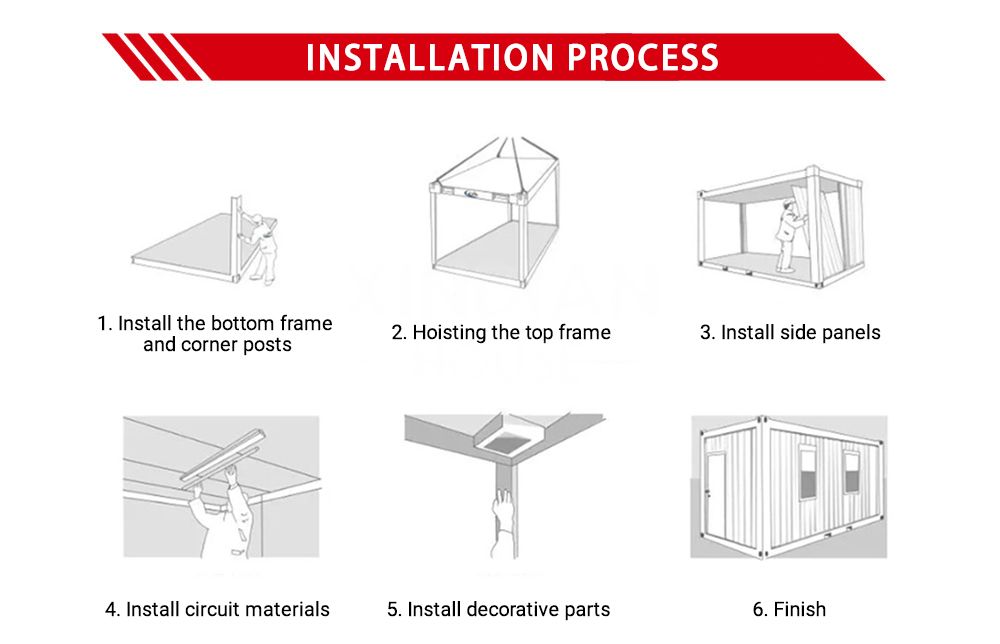

For large projects, we will send workers to assist you with installation.
FAQ
1. Do you provide on-site installation service?
We provide very detailed installation instrution drawings and videos for every project. For large projects, we will have both installation workers and supervisiors on site. The fee for the on-site service should be negotiated with clients.
2.What's your delivery time?
Normally, delivery time is 15 days after deposit received. For large order, the delivery time should be negotiated.
3.How to control the quality of your product?
a. quality of the design: think about possible problems in advance and provide a high-quality design solution.
b. quality of the raw material: choose the qualified raw material
c. quality of the production: precise manufacturing technique, experienced workers, strict quality inspection.
4. How to deal with quality problems?
Warranty is 2 years. Within the warranty period, XDH will responsible for all quality problems caused by our production.
5. If there is a clear service life of your products?
If have, how long? Under conventional climate and environment, the service life of container house steel frame is 20 years.
6. What designs do you have in different climates (How can the products adopt to different climates)?
Strong wind region: improve the wind-resisting ability of the internal structure. Cold region: increase the thickness of the wall, or use good insulation material, improve anti-pressure ability of the structure.
7. How can I get the quotation for the project?
If you have drawings, we can offer you our quotation according to your drawing.
If you have no design, our engineer will design some drawings for you to confirm. And then offer you a quotation.
8. Are you a factory or trading company?
We are a factory, and also a trading company. We can provide a one-stop service for our customers.
