ready houses concrete prefabricated home double storey prefabricated house

T-type steel activity room is a kind of light steel structure as the floor load-bearing foundation, make full use of the strength of the sandwich panel and the roof panel itself, through the effective connection of the building system composed of the building products.

Characteristics:

Positive and affordable, high degree of standardization, repeated use, convenient transportation.

Function:

Widely used in engineering camps, government resettlement, disaster relief and rescue, municipal temporary housing, large-scale events and all kinds of commercial activities in the field of temporary housing

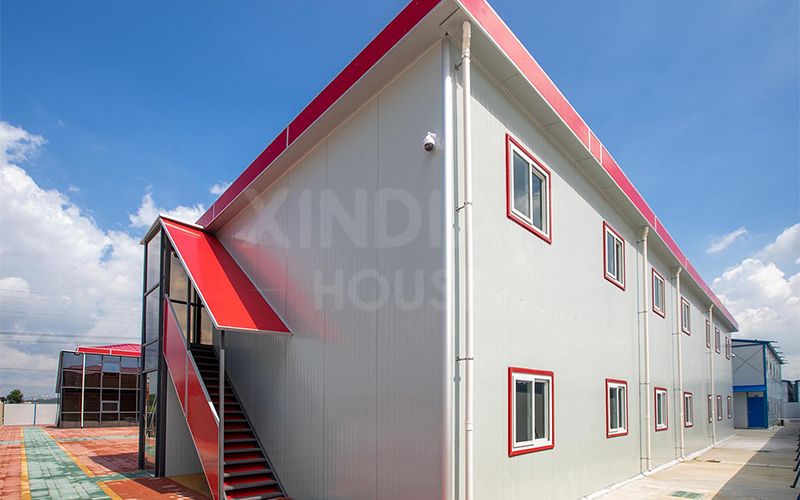

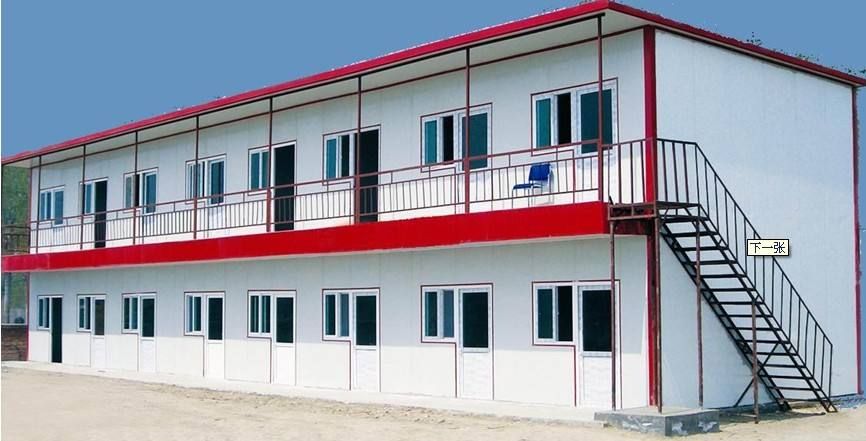

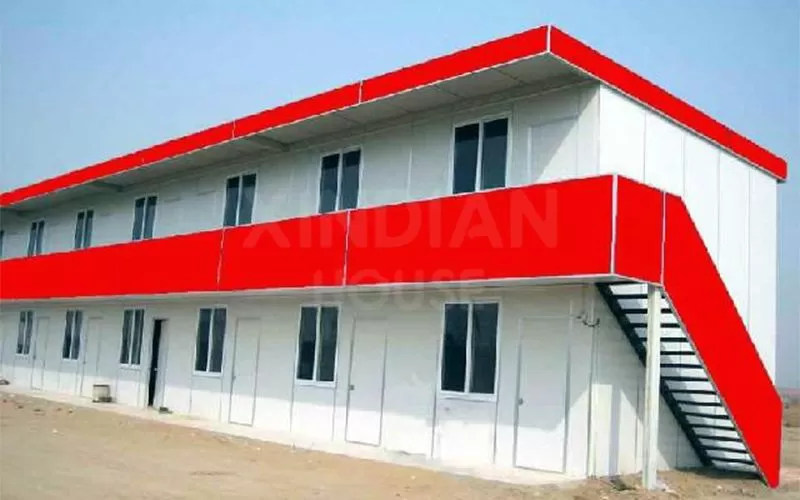

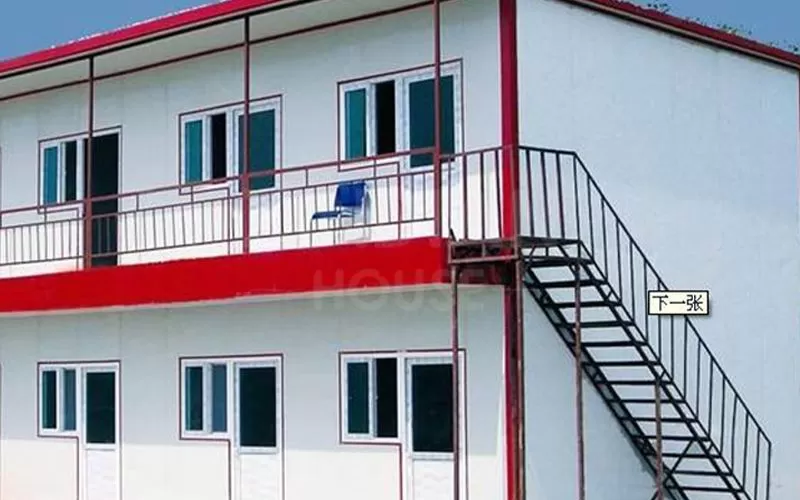

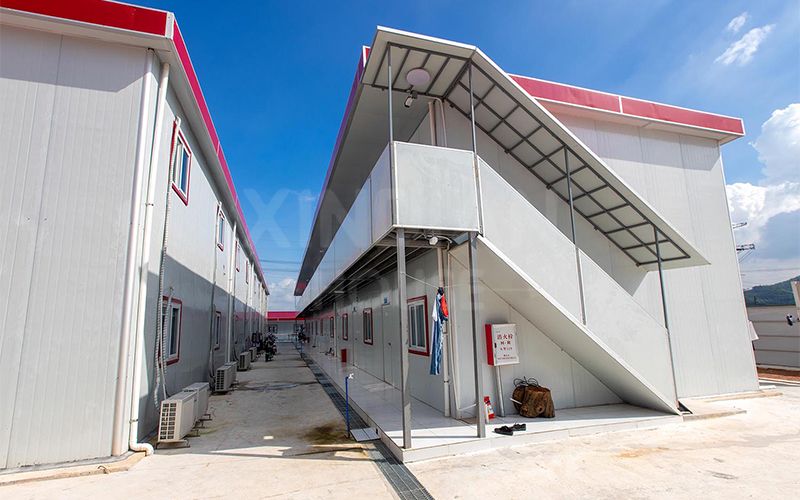

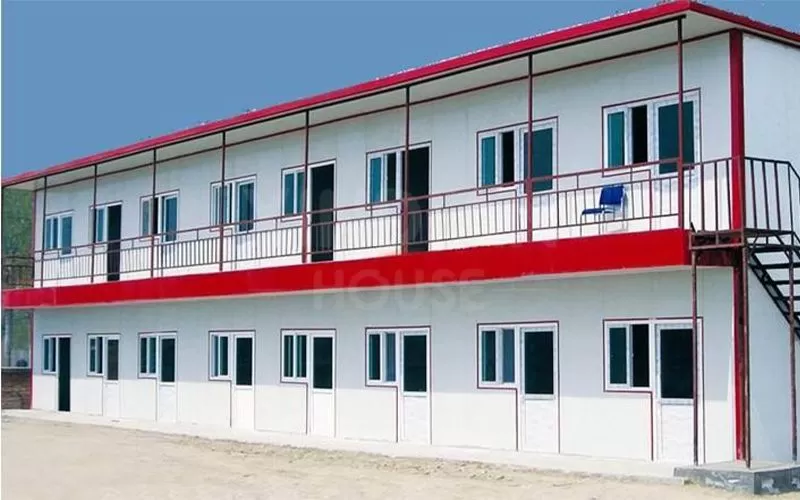

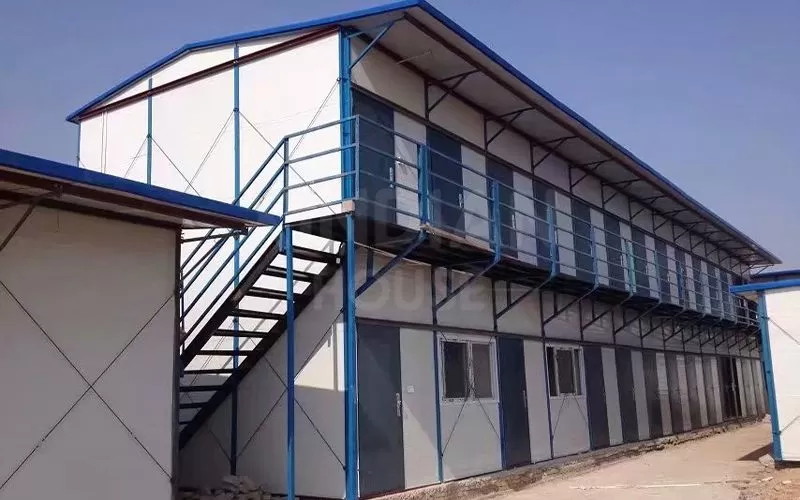

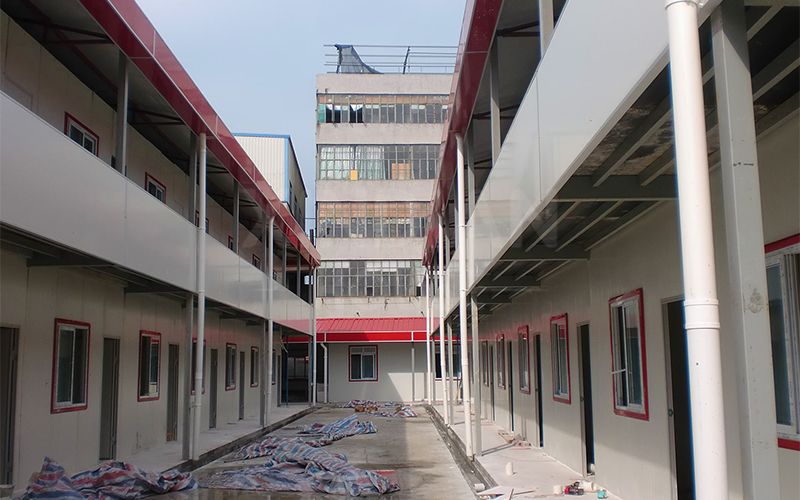

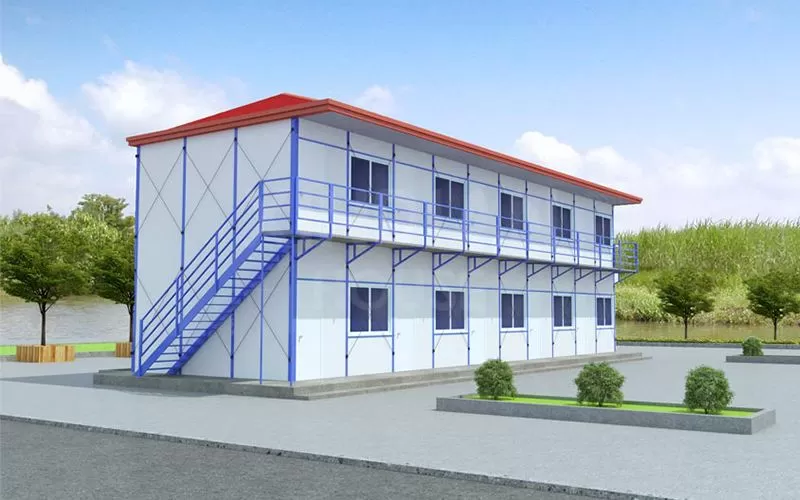

On the basis of using the light steel structure as the floor bearing, the T-type multi-storey flat roof house makes full use of the strength of the sandwich wall panel and the roof panel, and forms the box-type structure roof system through effective connection, so as to achieve the use of beautiful interior and effective space. The specific materials and properties are as follows:
1、The main skeleton: the single house steel structure is used as the load bearing of the second floor, the design load is 150kg/㎡;

2、The wall adopts 75mm color steel sandwich board, the inner wall board is vertically installed through the length, connected by the upper, middle and lower three points, each point connection spacing is less than 3m, the wall board can withstand the side force of 120㎏/㎡, and the deformation is less than L/250;

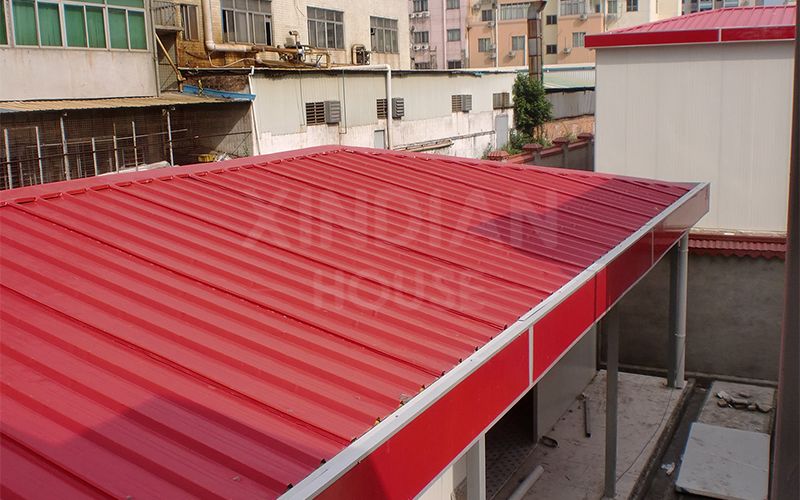

3、The roof adopts 75mm color steel big wave steel big wave tile, the span is less than 6m, the roof can withstand the load of 80㎏/㎡;

4、T-type room doors and Windows for our company independent research and development of T-type room special steel doors, plastic steel Windows, the overall firm, beautiful.

T-type room features: strong versatility, easy disassembly and reassembly, long service life (normal service life can reach more than 10 years), many turnover times, can adjust the size of the house according to customer needs.

Compared with C-type steel activity plate house, T-type steel activity plate house adopts modular design, which is more neat and beautiful indoor and outdoor, more flexible in space layout, and better in airtightness and sound insulation. It can be widely used in engineering camps, government resettlement, large-scale events and all kinds of commercial activities in the field of temporary housing.

FAQ：

1、What products do you offer?

A1:We focus on prefab houses, dome houses, steel structure, container house, modular villa and so on.

2、How is your after-sales service?

Any question, welcome to contact us. 24 hours available for you.

3、What information should we offer before you quote?

You have the drawing, pls give us and tell us the material you use. If no drawing, pls tell us the usage and the size of the house, then we design for you.
